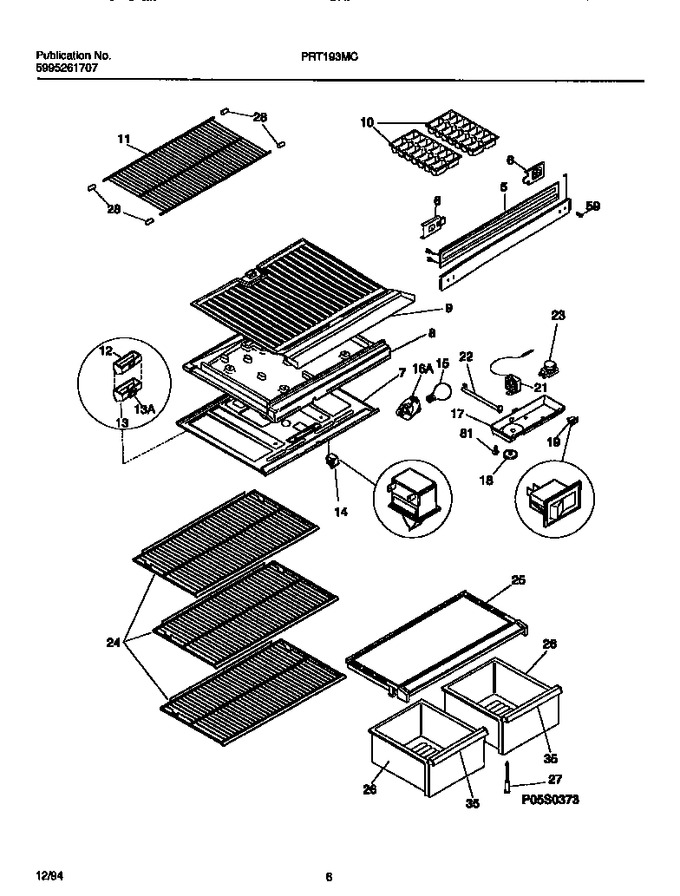

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 218252504 | Mullion, Almond |
|
- | |||||
| 5 | 218271402 | Heater-mullion |
|
- | |||||
| 6 | 218279800 | Tapping Plate, Mullion Mtg, (2) |
|
- | |||||
| 7 | 3018993 | Top Panel-refr |
|
- | |||||
| 7 | 5303001380 | Screw |
|
- | |||||
| 8 | 3018994 | Divider - Styrofoam |
|
- | |||||
| 8 | 3205266 | Protector, Edge (ni) |
|
$ 80.09 | |||||
| 8 | 3018900 | Harness, Wiring, Control/divider (ni) |
|
- | |||||
| 9 | 5303211427 | Bottom Panel-frzr |
|
- | |||||
| 10 | 215667501 | Tray-ice, Plastic |
|
Immediately | $ 6.07 | ||||
| 11 | 218159700 | Spacer, Frzr Shelf (ni) |
|
- | |||||
| 11 | 5303283031 | Shelf-freezer, Fixed/flat, Full Width, Wire |
|
$ 120.59 | |||||
| 12 | 5308014667 | Deflector-air, W/seal |
|
- | |||||
| 12 | 5303001449 | Seal, Air Deflector (ni) |
|
$ 2.12 | |||||
| 13 | 5303001448 | Cover-air Deflector |
|
- | |||||
| 13 | 5308016567 | Nut, Anchor (ni) |
|
- | |||||
| 14 | 5309918806 | Switch-light/lamp |
|
Immediately | $ 21.97 | ||||
| 15 | 5303001179 | Light Bulb/lamp,40 W |
|
- | |||||
| 17 | 3206130 | Box-control |
|
- | |||||
| 18 | 5303209251 | Knob-temp Control |
|
- | |||||
| 19 | 3206129 | Switch, Energy Saver, Rocker |
|
- | |||||
| 21 | 5303001260 | Screw |
|
$ 6.73 | |||||
| 21 | 5303018894 | Control-temperature |
|
- | |||||
| 22 | 3018891 | Housing, Cont Cap Tube |
|
- | |||||
| 23 | 5304455649 | Screw (Replaces: 5303001259) |
|
$ 17.01 | |||||
| 23 | 215846602 | Timer (Replaces: 215267800) |
|
Immediately | $ 28.20 | ||||
| 24 | 5303283297 | Stop Clip, Shelf (ni) |
|
- | |||||
| 24 | 5303291499 | Shelf, Sliding Wire |
|
- | |||||
| 25 | 5308010006 | Cover-crisper Pan |
|
- | |||||
| 26 | 5303299520 | Pan, Crisper, Lh |
|
- | |||||
| 26 | 215791908 | Pan-crisper, Rh |
|
- | |||||
| 27 | 5303205987 | Support-crspr Cover, Adjustable |
|
$ 48.41 | |||||
| 28 | 3201150 | Cap-protector |
|
$ 4.57 | |||||
| 35 | 3201409 | Trim-crisper Pan, 13.91``, Rh |
|
- | |||||
| 59 | 240442708 | Screw-hinge/mullion , 10-32 X 5/8 (Replaces: 218188000) |
|
$ 8.34 | |||||
| 81 | 5304455650 | Screw (Replaces: 5308016566) |
|
$ 14.18 | |||||
| 13A | 5303200590 | Extension, Air Deflector, With Insulation |
|
- | |||||
| 16A | 218906802 | Socket-light/lamp (Replaces: 5308000815) |
|
$ 17.72 |
