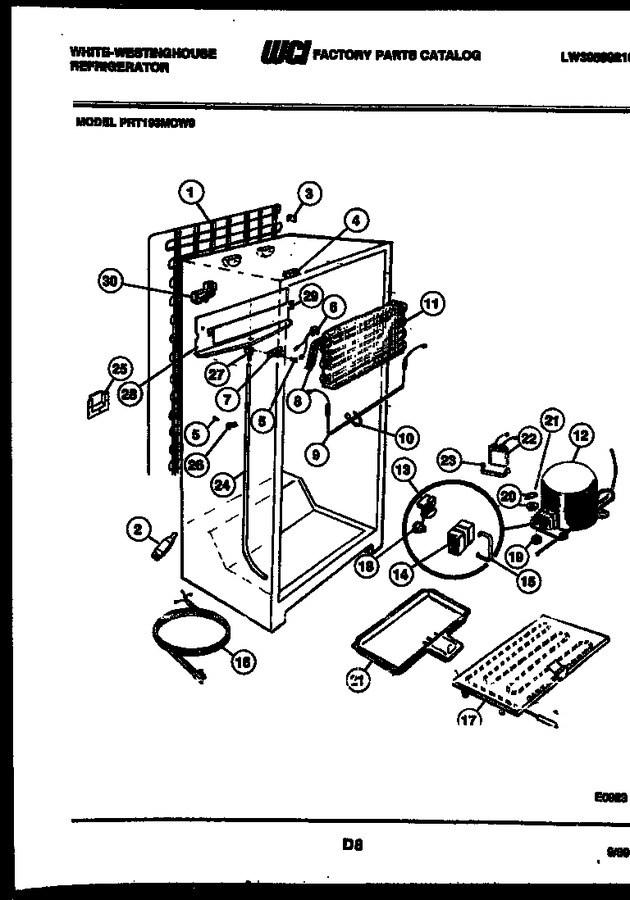

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	G189768		Condenser		Appelez-nous	-
2	G186717		Drier		Appelez-nous	-
3	G164637		Bracket, Condenser (4)		Appelez-nous	-
4	G188374		Block-rh		Appelez-nous	-
5	G144049		Screw		Appelez-nous	-
6	G162690-01		Thermostat		Appelez-nous	-
7	G162179		Spout		Appelez-nous	-
8	3018158		Heat Exchanger		Appelez-nous	-
9	G178425-01		Heater, Defrost		Appelez-nous	-
10	G165546		Strap (2)		Appelez-nous	-
11	G162506		Evaporator		Appelez-nous	-
12	3916004		Compressor		Appelez-nous	-
13	G182225-18		Relay		Appelez-nous	-
14	G169333		Cover-terminal		Appelez-nous	-
15	G166057		Clamp		Appelez-nous	-
18	G188877		Overload		Appelez-nous	-
19	G177617		Grommet (4)		Appelez-nous	-
20	G163204		Clip Compr (4)		Appelez-nous	-
21	G164634		Washer-compr (4)		Appelez-nous	-
22	G188885-01		Capacitor		Appelez-nous	-
23	G188897		Strap		Appelez-nous	-
24	G155529-02		Tube-drain		Appelez-nous	-
25	G183584		Cover, Wiring		Appelez-nous	-
26	G166301		Clamp (2)		Appelez-nous	-
27	G162180		Elbow		Appelez-nous	-
28	G170071		Trough		Appelez-nous	-
29	G166511-01		Insulation		Appelez-nous	-
30	G185298		Block, Lh		Appelez-nous	-
*22431	G174968		Harness-wiring		Appelez-nous	-
*22431	G166062-01		Harness-compressor		Appelez-nous	-
*22431	G189377		Hot Tube Repair Kit		Appelez-nous	-
16A	G184715		Defrost Pan (non-illustrated)		Appelez-nous	-
16B	G164958		Nut Pan (non-illustrated)		Appelez-nous	-
16C	G184599		Plate-compr Mtg (non-illustrated)		Appelez-nous	-
