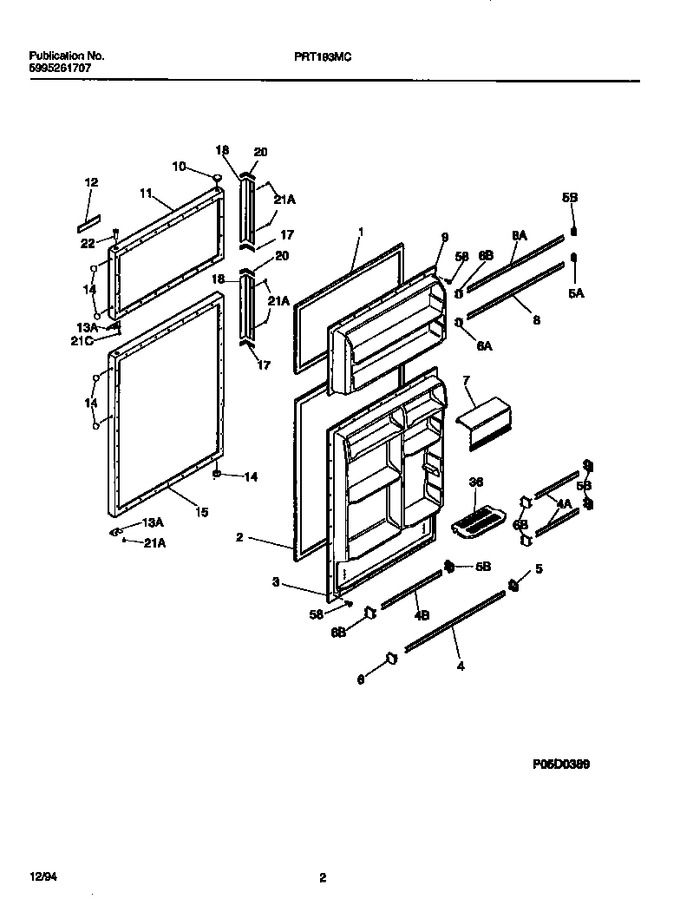

02 - Door


03 - Cabinet, Fan Assembly


04 - Shelves, Dividers


05 - Cooling System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	215608912		Gasket-frzr Door,white,magnetic		Appelez-nous	-
2	215732413		Gasket-refr Door, White, Magnetic		Appelez-nous	-
3	3206357		Panel, Inner Door, Refr		Appelez-nous	-
4	5303206518		Rack-door, Long/wide		Appelez-nous	-
5	3206150		Support-door Rack, Extends 1/81``, Rh				$ 12.58
6	3206151		Support-door Rack, Extends 1.81``, Lh		Appelez-nous	-
7	215634805		Door-dairy		Appelez-nous	-
8	3206289		Rack, Door, Long/wide		Appelez-nous	-
9	3206284		Panel, Inner Door, Frzr		Appelez-nous	-
10	5308000134		Plug-button, White, Hinge Brg Hole				$ 5.62
11	5303917016		Panel, Frzr Door, White, W/insulation		Appelez-nous	-
12	5315340712		Tape, Adhesive, 12`` Lg, Foam, Double,faced (ni)		Appelez-nous	-
12	3206159		Nameplate Assy, W/ Mtg Tape		Appelez-nous	-
13	5303212491		Door Stop, Refr Section		Appelez-nous	-
14	240494001		Plug-button, White, Handle/dr Stop   (Replaces: 5308000090)			Immediately	$ 18.20
15	5303917019		Panel, Refr Door, White		Appelez-nous	-
17	5300179271		Trim, Handle End (ni)		Appelez-nous	-
17	5300177143		Handle End		Appelez-nous	-
18	5303277266		Handle, Door, 16`` Long, W/end Caps		Appelez-nous	-
18	5300177144		Clip, Door Handle (ni)		Appelez-nous	-
20	5300177142		Handle End		Appelez-nous	-
20	5300179270		Trim, Handle End (ni)		Appelez-nous	-
22	5308012007		Bearing-hinge		Appelez-nous	-
36	3206189		Shelf - Flip-up				$ 50.61
58	5308002748		Screw		Appelez-nous	-
*29440	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
13A	218249001		Door Stop, White, Frzr				$ 82.06
21A	5308011745		Screw				$ 10.38
21C	218252201		Screw, Cr Truss Head, 10-32(ca) X 1/2   (Replaces: 218252200)			Immediately	$ 14.18
4A	3206191		Rack, Door 10.34`` X 1.12``		Appelez-nous	-
4B	3206300		Rack, Door, Medium/narrow		Appelez-nous	-
5A	3206161		Support-door Rack, Extends 1.06``, Rh		Appelez-nous	-
5B	3206165		Support-door Rack, Extends 1.06``, Rh			Immediately	$ 8.19
6A	3206162		Support-door Rack, Extends 1.06``, Lh		Appelez-nous	-
6B	3206166		Support-door Rack, Extends 1.06``, Lh			Immediately	$ 9.93
8A	3206288		Rack, Door, Long/narrow		Appelez-nous	-
