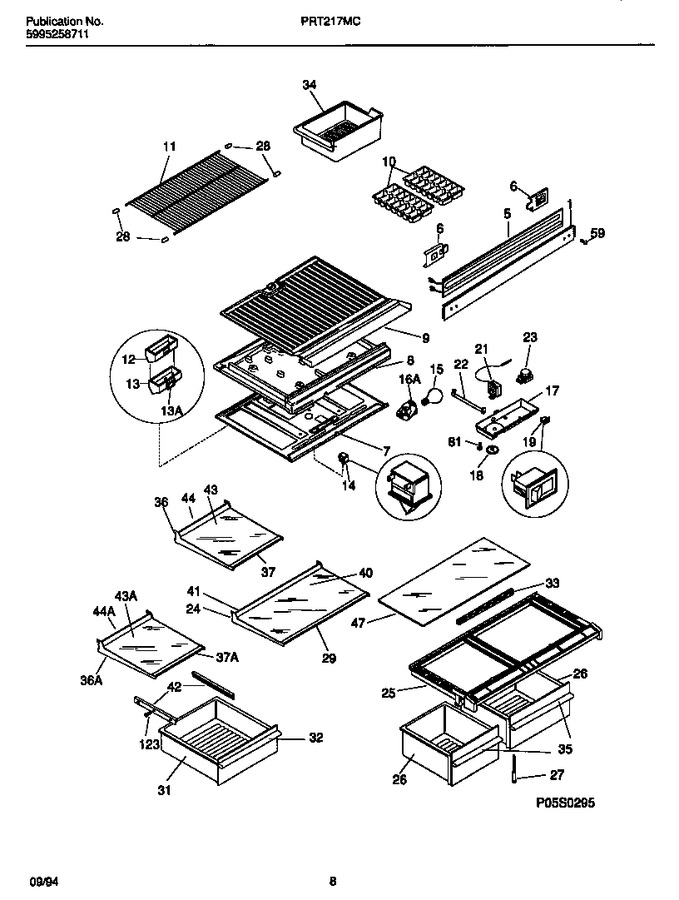

04 - Shelves, Controls, Divider, Mullion
05 - Cooling System
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 218252504 | Mullion, Almond |
|
- | |||||
| 5 | 218271402 | Heater-mullion |
|
- | |||||
| 6 | 218279800 | Tapping Plate, Mullion Mtg, (2) |
|
- | |||||
| 7 | 3019038 | Top Panel-refr |
|
- | |||||
| 8 | 5303019039 | Divider, Styrofoam |
|
- | |||||
| 9 | 5303210641 | Bottom Panel-frzr |
|
- | |||||
| 10 | 215667501 | Tray-ice, Plastic |
|
Immediately | $ 6.07 | ||||
| 11 | 5303288243 | Shelf-freezer, Fixed/flat, Full Width, Wire |
|
- | |||||
| 12 | 5308014667 | Deflector-air, W/seal |
|
- | |||||
| 13 | 5303001448 | Cover-air Deflector |
|
- | |||||
| 14 | 5309918806 | Switch-light/lamp |
|
Immediately | $ 21.97 | ||||
| 15 | 5303001179 | Light Bulb/lamp,40 W |
|
- | |||||
| 17 | 3206130 | Box-control |
|
- | |||||
| 18 | 5303209251 | Knob-temp Control |
|
- | |||||
| 19 | 3206129 | Switch-energy Saver |
|
- | |||||
| 21 | 5303018894 | Control-temperature |
|
- | |||||
| 22 | 3018891 | Housing, Cont Cap Tube |
|
- | |||||
| 23 | 215846602 | Timer (Replaces: 215267800) |
|
Immediately | $ 28.20 | ||||
| 24 | 215919118 | Frame-full Shelf, Cantilever |
|
- | |||||
| 25 | 5303206538 | Cover-crisper Pan |
|
- | |||||
| 26 | 215791908 | Pan-crisper, Rh |
|
- | |||||
| 27 | 5303205987 | Support-crisper Cvr, Adjustable |
|
$ 48.41 | |||||
| 28 | 3201150 | Cap-protector |
|
$ 4.57 | |||||
| 29 | 215919718 | Trim-refr Shelf, Front |
|
- | |||||
| 31 | 5303299809 | Pan-meat |
|
- | |||||
| 32 | 3201414 | Trim-meat Pan |
|
- | |||||
| 33 | 5303200329 | Gasket-pan Cover, 12.25``, Rh |
|
- | |||||
| 34 | 5303207065 | Container-ice |
|
- | |||||
| 35 | 3201409 | Trim-crisper Pan, 13.91``, Rh |
|
- | |||||
| 36 | 215919116 | Frame-half Shelf, Cantilever |
|
- | |||||
| 37 | 215919717 | Trim-half Shelf, (2) |
|
- | |||||
| 40 | 215723546 | Glass-shelf, 26.76`` X 15.57`` |
|
- | |||||
| 41 | 215919805 | Trim-shelf, 26.80``, Rear |
|
- | |||||
| 42 | 5303209272 | Hanger-pan/basket, Lh |
|
$ 90.83 | |||||
| 43 | 215723547 | Glass-shelf, 13.03`` X 15.57`` |
|
- | |||||
| 44 | 215919811 | Trim-shelf, 13.07``, Rear |
|
- | |||||
| 47 | 5303209283 | Insert-pan Cover, Glass |
|
- | |||||
| 59 | 240442708 | Screw-hinge/mullion , 10-32 X 5/8 (Replaces: 218188000) |
|
$ 8.34 | |||||
| 81 | 5304455650 | Screw (Replaces: 5308016566) |
|
$ 14.18 | |||||
| 123 | 215005101 | Screw-roller/hanger,8-10 X 7/16 (Replaces: 215005100) |
|
$ 14.89 | |||||
| 11A | 218159700 | Spacer-frzr Shelf (non-illustrated) |
|
- | |||||
| 12A | 5303001449 | Seal-air Deflector (non-illustrated) |
|
$ 2.12 | |||||
| 13A | 5303200590 | Extension,air Deflector,w/insulation |
|
- | |||||
| 16A | 218906802 | Socket-light/lamp (Replaces: 5308000815) |
|
$ 17.72 | |||||
| 17A | 5308016567 | Nut-anchor (non-illustrated) |
|
- | |||||
| 21A | 5303001260 | Screw |
|
$ 6.73 | |||||
| 23A | 5304455649 | Screw (Replaces: 5303001259) |
|
$ 17.01 | |||||
| 25A | 5303302753 | Trim-crisper Cover (non-illustrated) |
|
- | |||||
| 26A | 5303299775 | Pan-crisper, Lh |
|
- | |||||
| 35A | 3201411 | Trim-crisper Pan, 10.91``, Lh |
|
- | |||||
| 36A | 215919114 | Frame-pan Mtg Shelf, Cantilever, Half Width |
|
- | |||||
| 37A | 215919716 | Trim-meat Kpr Shelf, Front |
|
- | |||||
| 42A | 5303209273 | Hanger-pan/basket, Rh |
|
$ 60.06 | |||||
| 43A | 215723544 | Glass-shelf, 12.55`` X 15.57`` |
|
- | |||||
| 44A | 215919810 | Trim-shelf, 12.59``, Rear |
|
- | |||||
| 7A | 5303001380 | Screw |
|
- | |||||
| 8A | 3205266 | Protector-edge (non-illustrated) |
|
$ 80.09 | |||||
| 8B | 3019040 | Harness-wiring, Control/divider (non-illustrated) |
|
- |
