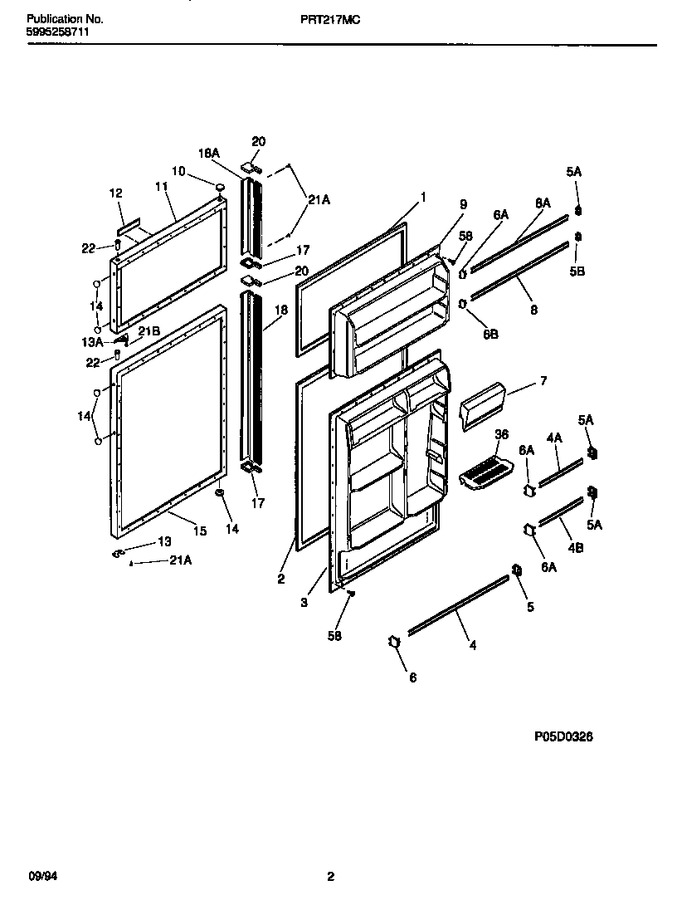

02 - Door Section


03 - Cabinet W/fan Assembly


04 - Shelves, Controls, Divider, Mullion


05 - Cooling System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	215608913		Gasket-frzr Door, White, Magnetic		Appelez-nous	-
2	215732413		Gasket-refr Door, White, Magnetic		Appelez-nous	-
3	5303206513		Panel-inner Door, Refr		Appelez-nous	-
4	5303206518		Rack-door, Long/wide		Appelez-nous	-
5	3206150		Support-door Rack, Extends 1/81``, Rh				$ 12.58
6	3206151		Support-door Rack, Extends 1.81``, Lh		Appelez-nous	-
7	215634805		Door-dairy		Appelez-nous	-
8	5303206510		Rack-door, Long/wide		Appelez-nous	-
9	5303206509		Panel-inner Door, Frzr		Appelez-nous	-
10	5308000134		Plug-button, White, Hinge Brg Hole				$ 5.62
11	5303916335		Panel-frzr Door, White		Appelez-nous	-
12	3206159		Nameplate Assy		Appelez-nous	-
13	5303212491		Door Stop, Refr Section		Appelez-nous	-
14	240494001		Plug-button, White, Handle/dr Stop   (Replaces: 5308000090)			Immediately	$ 18.20
15	5303916340		Panel-refr Door, White, W/insulation & Cross Brace		Appelez-nous	-
17	5300177143		Handle End		Appelez-nous	-
18	5303276493		Handle-door, 44`` Lond, W/end Caps		Appelez-nous	-
20	5300177142		Handle End		Appelez-nous	-
22	5308012007		Bearing-hinge		Appelez-nous	-
36	3206189		Shelf - Flip-up				$ 50.61
58	5308002748		Screw		Appelez-nous	-
*96680	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
12A	5315340712		Tape, Adhesive, 12`` Lg, Foam, Double-faced (non-illustrated)		Appelez-nous	-
12B	5315340760		Tape, Adhesive, 60`` Lg, Foam, Trim / Nameplate, Double Faced (non-illustrated)		Appelez-nous	-
13A	218249001		Door Stop, White, Frzr				$ 82.06
17A	5300179271		Trim-handle End (non-illustrated)		Appelez-nous	-
18A	5303276925		Handle-door, Frzr, W/end Caps		Appelez-nous	-
18A	5300177144		Clip-door Handle (non-illustrated)		Appelez-nous	-
20A	5300179270		Trim-handle End (non-illustrated)		Appelez-nous	-
21A	5308011745		Screw				$ 10.38
21B	218252201		Screw, Cr Truss Head, 10-32(ca) X 1/2   (Replaces: 218252200)			Immediately	$ 14.18
4A	3206191		Rack-door, Short/narrow		Appelez-nous	-
4B	5303206515		Rack-door, Medium-width, Narrow		Appelez-nous	-
5A	3206165		Support-door Rack, Extends 1.06``, Rh			Immediately	$ 8.19
5B	3206161		Support-door Rack, Extends 1.06``, Rh		Appelez-nous	-
6A	3206166		Support-door Rack, Extends 1.06``, Lh			Immediately	$ 9.93
6B	3206162		Support-door Rack, Extends 1.06``, Lh		Appelez-nous	-
8A	5303206511		Rack-door, Full-width, Narrow		Appelez-nous	-
