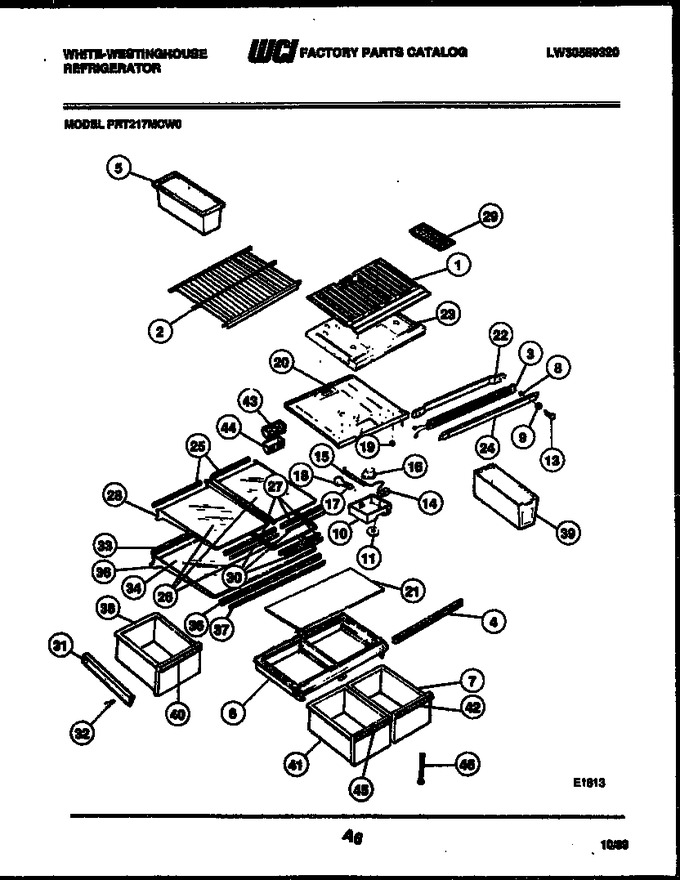

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3001472 | Bottom-freezer |
|
- | |||||
| 2 | 5303206769 | Shelf-freezer |
|
- | |||||
| 3 | 3018916 | Heater-mullion |
|
- | |||||
| 4 | 5303206540 | Trim - Crisper Cover |
|
- | |||||
| 5 | 5303207065 | Container-ice |
|
- | |||||
| 6 | 5303206538 | Cover-crisper |
|
- | |||||
| 7 | 5303206534 | Pan - Crisper - Rh |
|
- | |||||
| 8 | 3200464 | Spacer-mullion (2) |
|
- | |||||
| 9 | G166847 | Washer-no. 10 Steel (2) |
|
- | |||||
| 10 | 3206320 | Control Box |
|
- | |||||
| 11 | 3201777 | Knob-temperature Control |
|
- | |||||
| 13 | 08012258 | Screw |
|
- | |||||
| 14 | 3018894 | Control-temperature |
|
- | |||||
| 15 | 3018891 | Housing, Cont Cap Tube |
|
- | |||||
| 16 | G187484 | Timer-defrost |
|
- | |||||
| 17 | 08000815 | Light Socket |
|
- | |||||
| 18 | 3001179 | Light Bulb |
|
- | |||||
| 19 | 09918806 | Light Switch |
|
- | |||||
| 20 | 3001651 | Top-refrigerator |
|
- | |||||
| 21 | 5303206539 | Insert-crisper Cover |
|
- | |||||
| 22 | 08010008 | Strap-mullion Mtg |
|
- | |||||
| 23 | 08013674 | Divider-styrofoam |
|
- | |||||
| 24 | 3200370 | Mullion-almond |
|
- | |||||
| 25 | 5303206530 | Trim-rear Shelf Retainer 1/2 Shelf (2) |
|
- | |||||
| 26 | 5303206532 | Shelf-glass-1/2 Shelf (2) |
|
- | |||||
| 27 | 3200610 | Retainer-glass-1/2 Shelf (2) |
|
- | |||||
| 28 | 3200613 | Frame-half Shelf (2) |
|
- | |||||
| 29 | 3001324 | Ice Tray (2) |
|
- | |||||
| 30 | 5303206529 | Trim-1/2 Shelf (2) |
|
- | |||||
| 31 | 3018889 | Hanger-meat Pan-lh |
|
- | |||||
| 32 | 08014528 | Screw-hanger (6) |
|
$ 4.31 | |||||
| 33 | 5303206535 | Trim-rear Shelf Retainer-full Shelf |
|
- | |||||
| 34 | 5303206536 | Shelf-glass-full Shelf |
|
- | |||||
| 35 | 3018724 | Retainer-glass-full Shelf |
|
- | |||||
| 36 | 3200616 | Frame-full Shelf |
|
- | |||||
| 37 | 5303206537 | Trim-full Shelf |
|
- | |||||
| 38 | 5303206542 | Pan - Meat |
|
- | |||||
| 39 | G173948-19 | Container-eggs |
|
- | |||||
| 40 | 5303206541 | Trim - Meat Pan |
|
- | |||||
| 41 | 3206311 | Pan - Crisper - Lh |
|
- | |||||
| 42 | 3206317 | Trim-crisper Pan-rh |
|
- | |||||
| 43 | 3204206 | Deflector - Air |
|
- | |||||
| 44 | G162178 | Cover, Air Deflector |
|
- | |||||
| 45 | 3206308 | Trim-crisper Pan-lh |
|
- | |||||
| 46 | 3205987 | Support-crisper Cover-adj |
|
- | |||||
| *24917 | G170910 | Clip-canti Shelf (8) (shipping) |
|
- | |||||
| 10A | G187363 | Screw |
|
- | |||||
| 14A | G107080 | Screw |
|
- | |||||
| 16A | G105289 | Screw |
|
- | |||||
| 20A | G162673 | Screw-top Mtg (3) (non-illustrated) |
|
- | |||||
| 23A | 5303207109 | Wiring Harness-divider (non-illustrated) |
|
- | |||||
| 23B | 3205266 | Protector-edge (2) (non-illustrated) |
|
$ 80.09 | |||||
| 25A | 5303206526 | Trim-rear Shelf Retainer-mk Shelf |
|
- | |||||
| 26A | 5303206527 | Shelf-glass-mk Shelf (non-illustrated) |
|
- | |||||
| 26B | 3200901 | Rail-glass Support (6) (non-illustrated) |
|
- | |||||
| 27A | 3200316 | Retainer-glass-mk Shelf (non-illustrated) |
|
- | |||||
| 28A | 3200617 | Frame-meat Keeper Shelf |
|
- | |||||
| 2A | 3201150 | Cap-protector (2) (non-illustrated) |
|
$ 4.57 | |||||
| 2B | 5303206523 | Trim-shelf (non-illustrated) |
|
- | |||||
| 2C | G167565 | Grommet-shelf Mtg Rh (4) (non-illustrated) |
|
- | |||||
| 2D | G176993 | Grommet-shelf Mtg Lh (4) (non-illustrated) |
|
- | |||||
| 30A | 5303206528 | Trim-mk Shelf (non-illustrated) |
|
- | |||||
| 31A | 3018890 | Hanger-meat Pan-rh (non-illustrated) |
|
- | |||||
| 34A | 3200901 | Rail - Glass Support (2) (non-illustrated) |
|
- | |||||
| 6A | 3200329 | Gasket-crisper Cover (non-illustrated) |
|
- |
