Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 322T016P03 Insert-door Bottom Appelez-nous -
2 276T086P40 Glass-door Outer Appelez-nous -
3 233T027P02 Extrusion, Bottom Appelez-nous -
4 665T165P01 Spacer Appelez-nous -
5 260T002P01-18 Frame Door Appelez-nous -
6 233T026S13 Extrusion-hinge Mtg Assy Appelez-nous -
7 643T014P01 Seal-door Top & Bottom Appelez-nous -
8 511T038F06-99 Panel Door Seal Appelez-nous -
9 643T014P02 Seal, Door Side Appelez-nous -
10 233T016P04 Extrusion, Top Appelez-nous -
11 636T111P03 Screw, Door Strike Appelez-nous -
12 479T069P30 Nut Hex Appelez-nous -
13 322T015P03 Insert-top Appelez-nous -
14 233T012P06 Extrusion Right Appelez-nous -
15 550T037P02 Pin, Roll Appelez-nous -
17 355T517S03 Handle Assembly Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

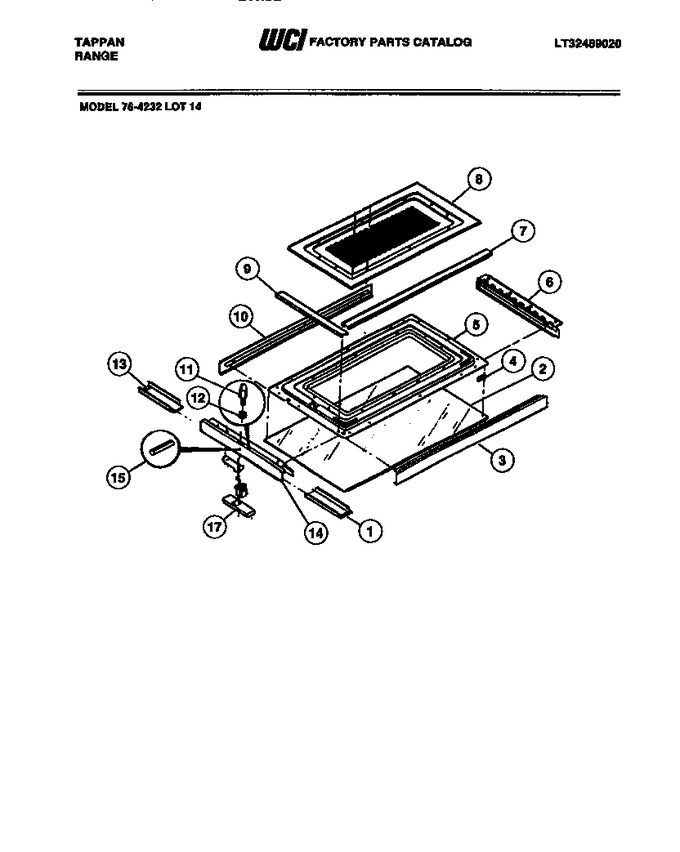

Diagram for 76-4232-45-14
