02 - Door Parts


03 - Cabinet Parts


04 - Shelves And Supports


05 - System And Automatic Defrost Parts

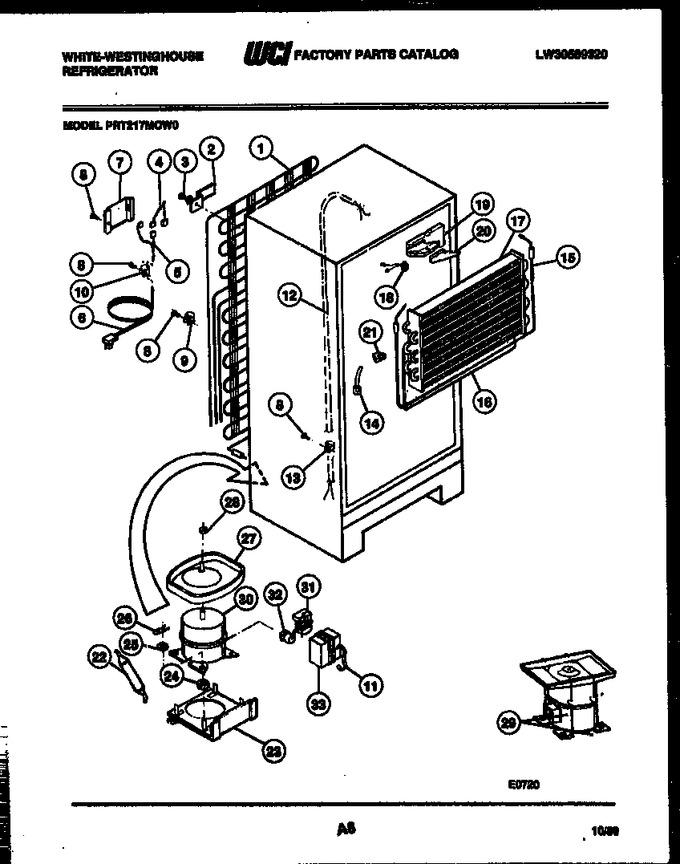

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	G163133		Condenser		Appelez-nous	-
2	08000296		Bracket-condenser		Appelez-nous	-
3	G160578		Screw		Appelez-nous	-
4	5303207109		Wiring Harness-control		Appelez-nous	-
5	3001347		Wiring Harness-compr		Appelez-nous	-
6	G162549-01		Service Cord		Appelez-nous	-
7	G183584		Cover, Wiring		Appelez-nous	-
8	G187009		Screw-8-15 X 1/2		Appelez-nous	-
9	G168978		Nylon Clamp		Appelez-nous	-
10	3001199		Clamp		Appelez-nous	-
11	G166057		Strap-term Cover		Appelez-nous	-
12	G177531		Heat Exchanger		Appelez-nous	-
13	08000133		Clamp		Appelez-nous	-
14	G165546		Strap-evap/heater (2)		Appelez-nous	-
15	G178425-02		Heater-defrost		Appelez-nous	-
16	G166511-02		Insulator-evaporator		Appelez-nous	-
17	G162506		Evaporator Coil		Appelez-nous	-
18	G162690-01		Thermostat, Defrost		Appelez-nous	-
19	G185299		Insulation Block-rh		Appelez-nous	-
20	G185276		Insulation Plug-rh		Appelez-nous	-
21	G188375		Insulation Block-lh		Appelez-nous	-
22	08000027		Drier-filter		Appelez-nous	-
23	08013663		Plate-compr Mtg		Appelez-nous	-
24	08008778		Grommet (4)		Appelez-nous	-
25	G164634		Washer (4)		Appelez-nous	-
26	G163204		Clip (4)		Appelez-nous	-
27	G184715		Pan, Defrost		Appelez-nous	-
28	G164958		Lock Nut-pan Mtg		Appelez-nous	-
29	3916001		Pan Retainer Kit-included W/ Service Compr		Appelez-nous	-
30	3916012		Compressor W/ Electricals-service		Appelez-nous	-
31	3007173		Relay		Appelez-nous	-
32	08017532		Overload		Appelez-nous	-
33	3006411		Cover-terminal		Appelez-nous	-
*24921	G189383		Hot Tube Repair Kit-svce		Appelez-nous	-
27A	G169873		Sound Tape-pan (non-illustrated)		Appelez-nous	-
30A	3916391		Capacitor-run (non-illustrated)		Appelez-nous	-
3A	G164820		Washer-no. 10 Ext Tooth Lock (non-illustrated)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
