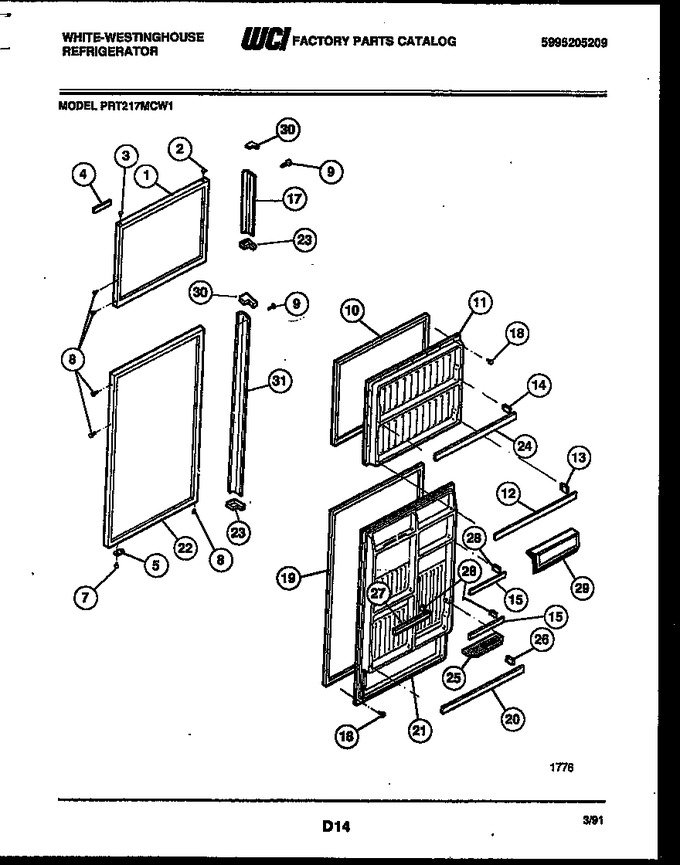

02 - Door Parts
03 - Cabinet Parts
04 - Shelves And Supports
05 - System And Automatic Defrost Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3916338 | Panel-freezer-coffee |
|
- | |||||
| 2 | 5303001657 | Plug Button-coffee |
|
- | |||||
| 3 | 5308012007 | Bearing, Hinge (8) |
|
- | |||||
| 4 | 3206159 | Nameplate |
|
- | |||||
| 5 | 5303212491 | Door Stop-refrig |
|
- | |||||
| 7 | 5308011745 | Screw |
|
$ 10.38 | |||||
| 8 | 5308000178 | Plug Button - Coffee |
|
- | |||||
| 9 | 5308011745 | Screw |
|
$ 10.38 | |||||
| 10 | 5318680314 | Gasket-freezer |
|
$ 113.57 | |||||
| 11 | 5303206509 | Panel-freezer-inner |
|
- | |||||
| 12 | 5303206510 | Rack-freezer |
|
- | |||||
| 13 | 3206161 | Support-rack Rh |
|
- | |||||
| 14 | 3206165 | Support-rack Rh |
|
Immediately | $ 8.19 | ||||
| 15 | 3206191 | Rack-refr (2) |
|
- | |||||
| 17 | 5303206512 | Handle-door-frzr |
|
- | |||||
| 18 | 5308002748 | Screw |
|
- | |||||
| 19 | 5303018792 | Gasket-refrigerator |
|
- | |||||
| 20 | 5303206518 | Rack-refrigerator |
|
- | |||||
| 21 | 5303206513 | Panel-refrigerator-inner |
|
- | |||||
| 22 | 3916343 | Panel-refrigerator-coffee |
|
- | |||||
| 23 | 5300177143 | Handle End-bottom (2) |
|
- | |||||
| 24 | 5303206511 | Rack-frzr |
|
- | |||||
| 25 | 3206189 | Shelf - Flip-up |
|
$ 50.61 | |||||
| 26 | 3206150 | Support-rack-rh |
|
$ 12.58 | |||||
| 27 | 5303206515 | Rack-refr |
|
- | |||||
| 28 | 3206165 | Support - Rack - Rh (3) |
|
Immediately | $ 8.19 | ||||
| 29 | 3206304 | Dairy Door W/ Trim |
|
- | |||||
| 30 | 5300177142 | Handle End-top (2) |
|
- | |||||
| 31 | 3206418 | Handle-door-refr |
|
- | |||||
| *42921 | 5303007739 | Insulation - Fiberglass - Bulk |
|
- | |||||
| 13A | 3206162 | Support-rack-lh |
|
- | |||||
| 14A | 3206166 | Support-rack Lh |
|
Immediately | $ 9.93 | ||||
| 23A | 5300177144 | Clip-door Handle (2) (non-illustrated) |
|
- | |||||
| 23B | 5300179271 | Trim-handle End-bottom (2) (non-illustrated) |
|
- | |||||
| 26A | 3206151 | Support-rack-lh |
|
- | |||||
| 28A | 3206166 | Support - Rack - Lh (3) |
|
Immediately | $ 9.93 | ||||
| 30A | 5300177144 | Clip-door Handle (2) (non-illustrated) |
|
- | |||||
| 30B | 5300179270 | Trim-handle End-top (2) (non-illustrated) |
|
- | |||||
| 5A | 5308000255 | Door Stop-freezer |
|
$ 42.20 |
