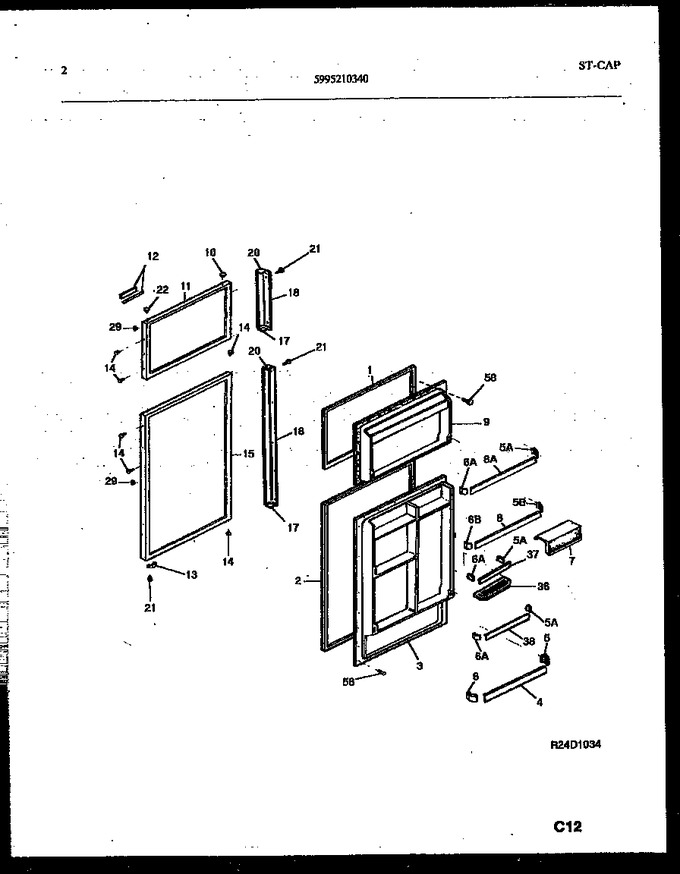

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5318680314 | Gasket-frzr Door, Magnetic |
|
$ 113.57 | |||||
| 2 | 5303018792 | Gasket-refr Door, Magnetic |
|
- | |||||
| 3 | 5303206513 | Panel-inner Door, Refr |
|
- | |||||
| 4 | 5303206518 | Rack-door, Refrigerator |
|
- | |||||
| 5 | 3206150 | Support, Door Rack, Rh |
|
$ 12.58 | |||||
| 6 | 3206151 | Support-door Rack, Lh |
|
- | |||||
| 7 | 3206304 | Door-dairy |
|
- | |||||
| 8 | 5303206510 | Rack-door |
|
- | |||||
| 9 | 5303206509 | Panel-inner Door, Frzr |
|
- | |||||
| 10 | 5308000176 | Button Plug, Wheat, Hinge Brg Hole |
|
- | |||||
| 11 | 5303916337 | Panel-frzr Door, Wheat |
|
- | |||||
| 12 | 3206159 | Nameplate Assy |
|
- | |||||
| 13 | 5303212491 | Door Stop, Refr |
|
- | |||||
| 14 | 5308000180 | Button Plug, Wheat, Handle/dr Stop |
|
- | |||||
| 15 | 5303916342 | Panel-refr Door, Wheat |
|
- | |||||
| 17 | 5300177143 | Handle End-bottom (2) |
|
- | |||||
| 18 | 5303276493 | Handle-door, Refr |
|
- | |||||
| 20 | 5300177142 | Handle End-top (2) |
|
- | |||||
| 13A | 5308000255 | Door Stop, Frzr (non Illustrated) |
|
$ 42.20 | |||||
| 17A | 5300179271 | Trim-handle End-bottom (2) (non-illustrated) |
|
- | |||||
| 18A | 5303276925 | Handle-door, Frzr |
|
- | |||||
| 18B | 5300177144 | Clip-door Handle, (4) (non-illustrated) |
|
- | |||||
| 5A | 3206165 | Support-door Rack, Rh |
|
Immediately | $ 8.19 | ||||
| 5B | 3206161 | Support-door Rack, Rh |
|
- | |||||
| 6A | 3206166 | Support-door Rack, Lh |
|
Immediately | $ 9.93 | ||||
| 6B | 3206162 | Support-door Rack, Lh |
|
- | |||||
| 8A | 5303206511 | Rack-door, Frzr |
|
- |
