New Model Search:

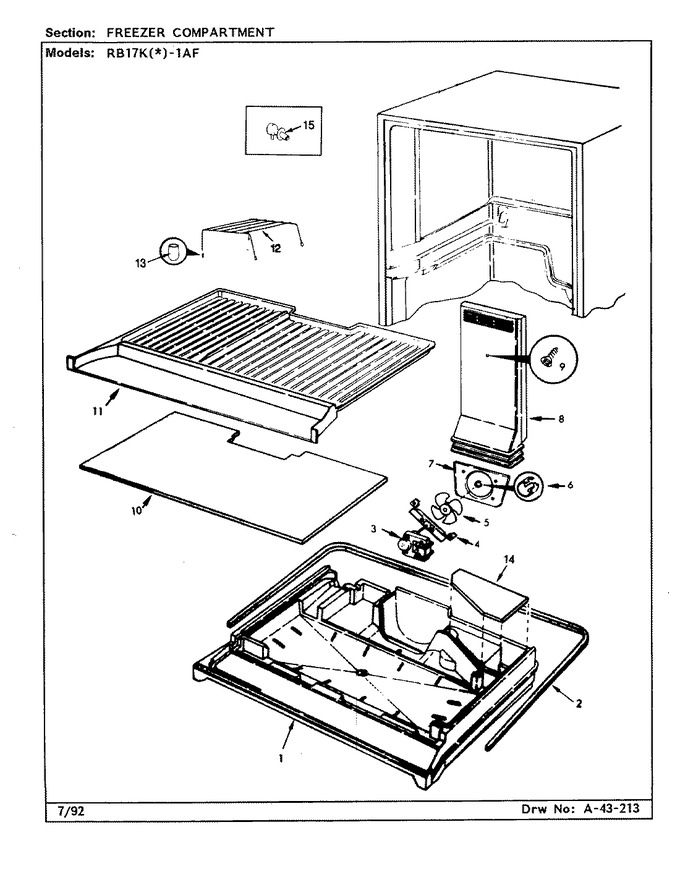

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 67518-2 | Mullion Divider Tray |
|
- | |||||
| 2 | 68866-5 | Seal 72`` |
|
- | |||||
| 2 | 68946-8 | Seal |
|
- | |||||
| 2 | 67730-1 | Seal, Front Corner |
|
- | |||||
| 3 | WP61004888 | Motor, Evaporator Fan (Replaces: 54482-10) |
|
Immediately | $ 104.99 | ||||
| 3 | 406062-1 | Screw |
|
- | |||||
| 4 | 64856-1 | Bracket, Fan Motor |
|
- | |||||
| 4 | 400015-12 | Screw |
|
- | |||||
| 5 | 64359-1 | Blade, Evaporator Fan |
|
- | |||||
| 6 | 420092-900 | Washer, Spring |
|
- | |||||
| 7 | 60608-2 | Orifice, Fan Blade |
|
- | |||||
| 8 | 68592-2 | Tunnel, Air |
|
- | |||||
| 8 | 66325-34 | Seal, Air Tunnel----na |
|
- | |||||
| 9 | W11233072 | Screw (Replaces: 400015-31) |
|
Immediately | $ 12.62 | ||||
| 10 | 66403-1 | Cover, Evaporator |
|
- | |||||
| 11 | 66460-1 | Bottom, Frz. |
|
- | |||||
| 11 | 68946-1 | Seal |
|
- | |||||
| 12 | 68259-2 | Trivet |
|
- | |||||
| 13 | 24580-3 | Tip |
|
- | |||||
| 14 | 66480-4 | Cover, Plenum |
|
- | |||||
| 15 | 68307-1 | Grommet, Water Entry |
|
- |
