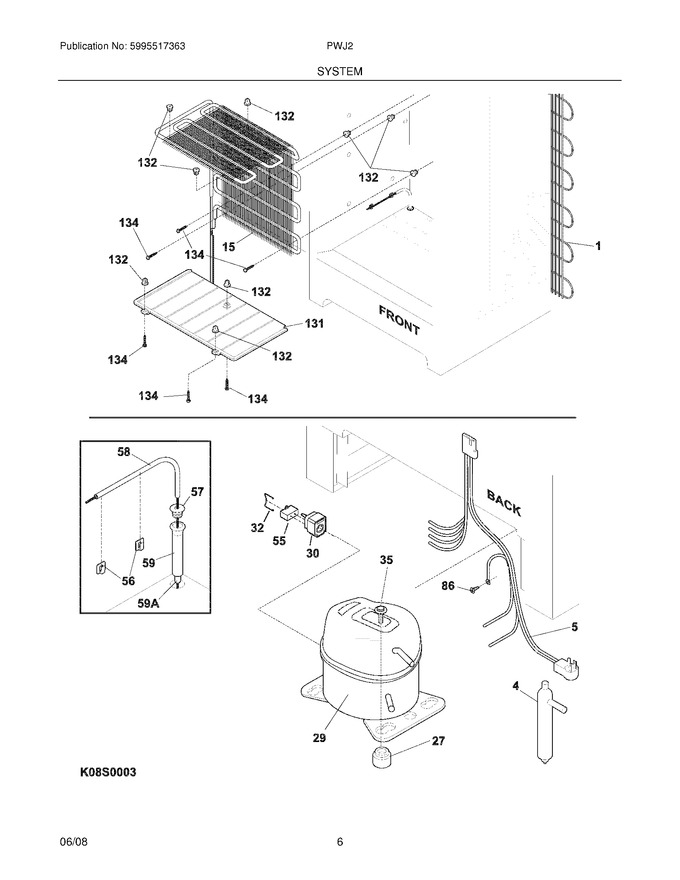

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 27 | 216498900 | Grommet,compressor (Replaces: 5308002681) |
|
$ 13.01 | |||||
| 30 | 216954208 | Controller,compressor ,5 Speed |
|
$ 74.42 | |||||
| 32 | 297030500 | Clip,controller |
|
Immediately | $ 12.05 | ||||
| 35 | 297177200 | Bolt,compressor |
|
- | |||||
| 55 | 297286812 | Capacitor,run ,10mf (Replaces: 216985000) |
|
Immediately | $ 11.78 | ||||
| 56 | 216611700 | Clip,plastic ,temp Sensor Mtg ,snap-in |
|
- | |||||
| 57 | 297014500 | Plug-suction Line |
|
- | |||||
| 58 | 216611600 | Tube,control Well |
|
- | |||||
| 59 | 216502500 | Sleeve,suction Line |
|
$ 10.85 | |||||
| 86 | 216036601 | Screw,rwhd ,8-32a X 0.500 ,gx-ca |
|
$ 13.65 | |||||
| 131 | 216701100 | Pan-drain,evap Drip Pan |
|
- | |||||
| 132 | 216225700 | Grommet-spacer |
|
$ 7.77 | |||||
| 134 | 216138901 | Screw,hex Sems ,8-18ab X 1.00 ,evap |
|
- | |||||
| 59A | 216341800 | Seal-cap |
|
- | |||||
| F1 | 5300123788 | Condenser |
|
$ 635.80 | |||||
| F15 | 297175900 | Evaporator Kit |
|
$ 293.24 | |||||
| F29 | 5304507767 | Compressor,w/o Electricals (Replaces: 297224800) |
|
$ 726.41 | |||||
| F4 | 5303305677 | Drier-filter (Replaces: 216938600) |
|
Immediately | $ 31.67 | ||||
| F5 | 297173200 | Harness-main,b12 |
|
- | |||||
| FNI | 297182200 | Harness-main,service ,w/housing Recpl |
|
- | |||||
| FNI | 297169902 | Cord-power,grnd Fault Plug |
|
- | |||||
| NI | 216533200 | Wire-ground |
|
- | |||||
| NI | 240555002 | Screw-no.8-32 X 3/8 |
|
Immediately | $ 13.46 |
