02 - Backguard


03 - Top


04 - Burner


05 - Door


06 - Body


07 - Housing


08 - Drawer

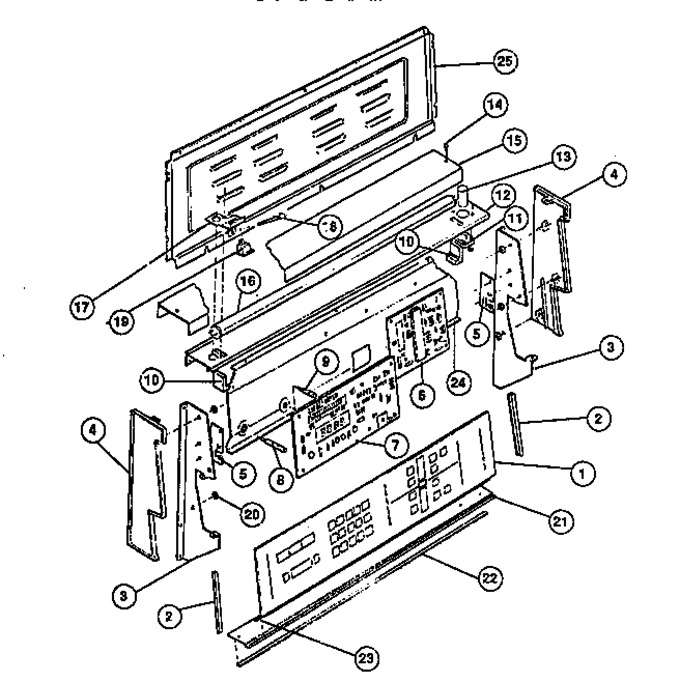

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303209647		Glass, Cont. Pnl.		Appelez-nous	-
2	08017099		Trim, Cont. Pnl. Glass (2)		Appelez-nous	-
3	08015966		Support-backguard, Rh		Appelez-nous	-
4	08015974		End Cap, Rh		Appelez-nous	-
5	5308012538		Bracket, Hinge (2)		Appelez-nous	-
6	3205847		Board Pc, (s/u)		Appelez-nous	-
7	3205846		Board Pc, (oven)		Appelez-nous	-
8	5303209648		Light, Signal (clean)		Appelez-nous	-
9	5303209649		Light, Signal (oven)		Appelez-nous	-
10	08012748		Lampholder, Flu. (2)		Appelez-nous	-
11	3201542		Base, Starter		Appelez-nous	-
12	5303209653		Top, Backguard		Appelez-nous	-
13	3017795		Starter		Appelez-nous	-
14	5303209655		Screw (2)		Appelez-nous	-
15	5308016520		Shield-light		Appelez-nous	-
16	5308012712		Light, Fluor.		Appelez-nous	-
17	5303209654		Bracket, Sw.		Appelez-nous	-
18	5303209651		Light, Signal (heat Ready)		Appelez-nous	-
19	5303209652		Switch, (heat Ready)		Appelez-nous	-
20	53050366601		Nut, Hex (6)		Appelez-nous	-
21	08015987		Base, Backguard		Appelez-nous	-
22	5303209730		Pad		Appelez-nous	-
23	08005554		Tape, Foam 16``		Appelez-nous	-
24	5303209658		Bracket, Cont. Pnl.		Appelez-nous	-
25	5303017470		Cover, Wire.		Appelez-nous	-
3A	08015967		Support, Backguard Lh		Appelez-nous	-
4A	08015975		End Cap, Lh		Appelez-nous	-
