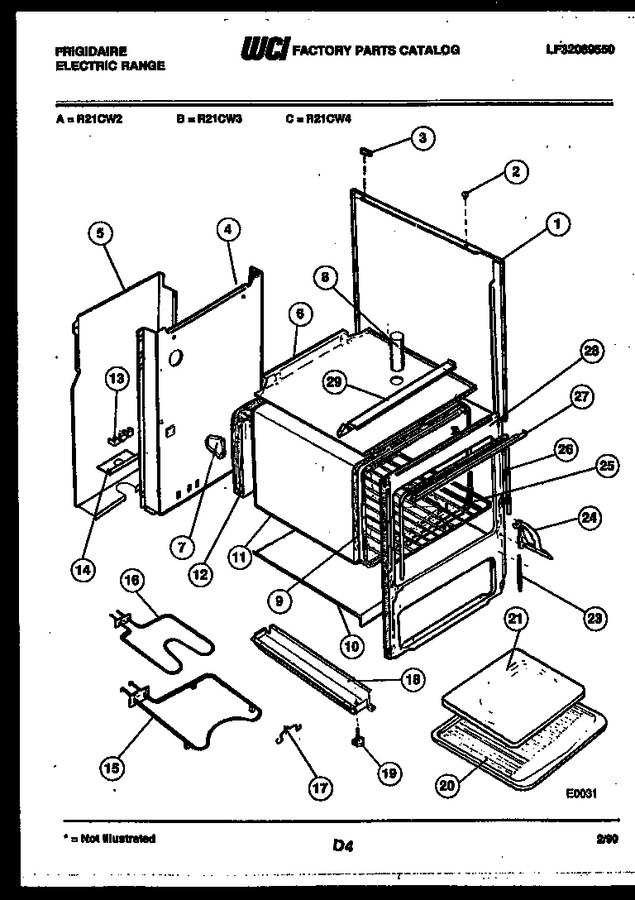

02 - Backguard And Cooktop Parts


03 - Door Parts


04 - Body Parts


05 - Drawer Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5308014019		Panel-side Almd (2)		Appelez-nous	-
2	08068054		Grommet-front (2)		Appelez-nous	-
3	3205587		Grommet-rear (2)		Appelez-nous	-
6	3017015		Panel-burner Box		Appelez-nous	-
7	3051096		Support-rear Ov (2)		Appelez-nous	-
8	08013195		Tube-vent		Appelez-nous	-
9	3016553		Panel-oven Rh		Appelez-nous	-
10	08011543		Retainer-insulation		Appelez-nous	-
11	3051093		Insulation-wrap		Appelez-nous	-
12	3051094		Insulation-back		Appelez-nous	-
13	5303051098		Block - Terminal		Appelez-nous	-
14	3203614		Support-conduit		Appelez-nous	-
15	5303051076		Element-bake		Appelez-nous	-
16	3051071		Element-broil		Appelez-nous	-
17	5303009445		Support-broil Elmnt		Appelez-nous	-
18	5308068047		Rail-base (2)		Appelez-nous	-
19	5303051080		Leg-leveling (4)		Appelez-nous	-
20	5303016973		Pan-broiler		Appelez-nous	-
21	5303017712		Grid-broiler		Appelez-nous	-
23	5303051079		Spring-door (2)		Appelez-nous	-
24	5303204670		Hinge Rh		Appelez-nous	-
25	3016158		Rack-oven (2)		Appelez-nous	-
26	5303051069		Seal-door		Appelez-nous	-
27	08011559		Support-control Pnl		Appelez-nous	-
28	3203621		Frame-front		Appelez-nous	-
29	08014013		Shield-switch		Appelez-nous	-
*21910	08003146		Strap - Ground		Appelez-nous	-
*21910	3934059		Anti-tip Kit		Appelez-nous	-
24A	5303204672		Hinge Lh		Appelez-nous	-
4A	3203619		Back Main		Appelez-nous	-
5A	3203615		Cover-wire		Appelez-nous	-
9A	3017599		Panel-oven Lh		Appelez-nous	-
9B	3017708		Panel-oven Top		Appelez-nous	-
9C	3017720		Panel-bottom		Appelez-nous	-
9D	3017710		Panel-back		Appelez-nous	-
