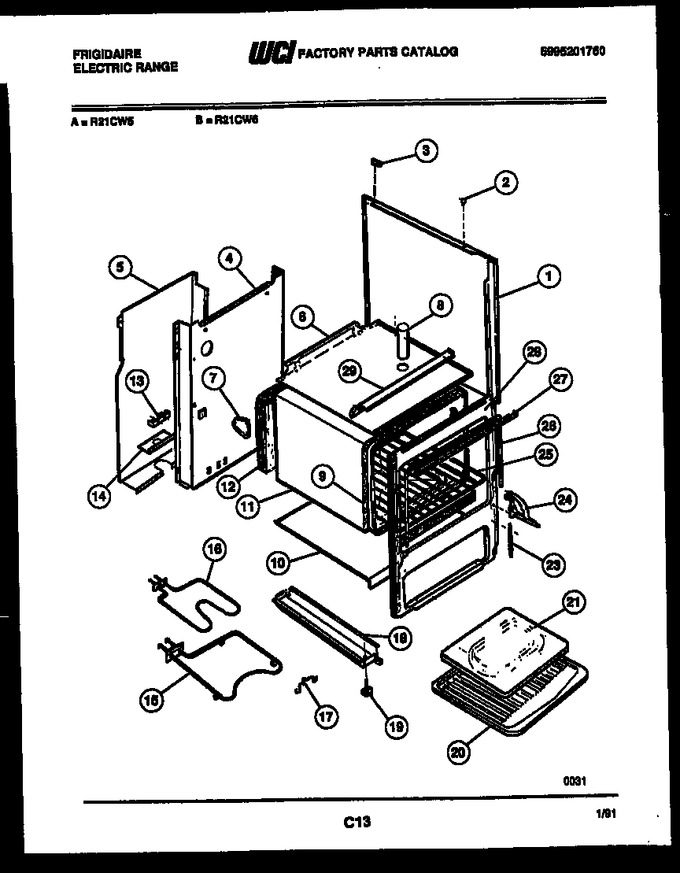

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5308014019		Panel-side Almd (2)		Appelez-nous	-
2	3051063		Grommet-front (2)		Appelez-nous	-
3	3205587		Grommet-rear (2)		Appelez-nous	-
4	3203619		Panel-back		Appelez-nous	-
5	3203615		Cover-access		Appelez-nous	-
6	3017015		Panel-burner Box		Appelez-nous	-
7	3051096		Support-rear Ov (2)		Appelez-nous	-
8	08013195		Tube-vent		Appelez-nous	-
9	3016533		Panel-oven Rh		Appelez-nous	-
10	3051092		Retainer-insulation		Appelez-nous	-
11	3051093		Insulation-wrap		Appelez-nous	-
12	3051094		Insulation-back		Appelez-nous	-
13	5303051098		Block - Terminal		Appelez-nous	-
14	3205588		Support-conduit		Appelez-nous	-
15	5303051076		Element-bake		Appelez-nous	-
16	3051071		Element-broil		Appelez-nous	-
17	5303009445		Support-broil Elmnt		Appelez-nous	-
18	5303210256		Rail-base-lh (2)		Appelez-nous	-
19	318175510		Leg-leveling (4)   (Replaces: 5303210257)			Immediately	$ 24.26
20	5303016973		Pan-broiler		Appelez-nous	-
21	5303017712		Grid-broiler		Appelez-nous	-
23	5303051079		Spring-door (2)		Appelez-nous	-
24	5303204670		Hinge Rh		Appelez-nous	-
25	3016158		Rack-oven (2)		Appelez-nous	-
26	5303051069		Seal-door		Appelez-nous	-
27	3051067		Support-control Pnl		Appelez-nous	-
28	3203621		Frame-front		Appelez-nous	-
29	3051063		Shield-switch		Appelez-nous	-
*39895	5303210892		Retainer-counter Weight (2)		Appelez-nous	-
*39895	5303210891		Weight-cement (2)		Appelez-nous	-
*39895	08003146		Strap - Ground		Appelez-nous	-
*39895	19100210113		Wiring Diagram (not For Purchase)		Appelez-nous	-
*39895	3934059		Anti-tip Kit		Appelez-nous	-
18A	5303210255		Rail-base-rh (2)		Appelez-nous	-
24A	5303204672		Hinge Lh		Appelez-nous	-
9A	3017599		Panel-oven Lh		Appelez-nous	-
9B	3017708		Panel-oven Top		Appelez-nous	-
9C	3017720		Panel-bottom		Appelez-nous	-
9D	3017710		Panel-back		Appelez-nous	-
