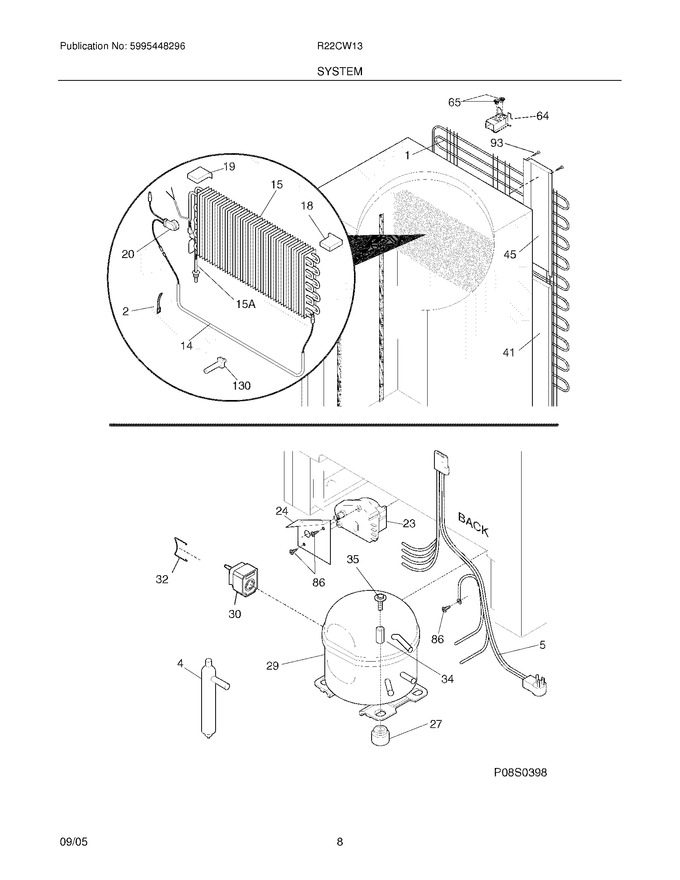

07 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	5308000110		Strap-evap/heater,aluminum ,(2)			Immediately	$ 59.82
14	216608500		Heater-defrost				$ 161.22
18	216727600		Insulator-evap,styrofoam		Appelez-nous	-
19	216727700		Insulator-evap,styrofoam		Appelez-nous	-
20	216731001		Thermostat, Defrost			Immediately	$ 81.75
24	08016580		Bracket		Appelez-nous	-
27	216498900		Grommet,compressor   (Replaces: 5308002681)				$ 13.01
30	297051000		Controller,compressor				$ 39.46
32	297051100		Clamp,elec Cont Mtg ,compressor		Appelez-nous	-
34	5306594529		Sleeve-compressor				$ 10.34
35	5303272328		Screw, Ind Hex Sems, 1/4, 28 Unfx, Compressor				$ 10.34
41	216524000		Cover-wiring,rear		Appelez-nous	-
45	216389900		Cover-wiring, Rear/top		Appelez-nous	-
64	216578800		Vent				$ 47.83
65	5309950074		Valve,breather ,door Base				$ 12.48
86	216036600		Screw,ph Washer Head ,8-32ca X 0.500 ,thread Forming		Appelez-nous	-
93	216858001		Screw,ph Truss Head ,8-18ab X 0.500   (Replaces: 5303161215)			Immediately	$ 10.85
130	216486800		Support,evaporator Mtg		Appelez-nous	-
15A	216424200		Heat Exchanger		Appelez-nous	-
F1	5300083897		Condenser				$ 538.37
F15	216751300		Evaporator				$ 289.33
F23	5304518034		Timer-defrost   (Replaces: 216744500)			Immediately	$ 57.55
F29	5304478809		Compressor,kit W/grommets ,& Welded Clip   (Replaces: 297048100)			Immediately	$ 584.96
F4	5303305677		Drier-filter   (Replaces: 216938600)			Immediately	$ 31.67
F5	297022100		Harness-main		Appelez-nous	-
NI	5303311565		Clip-cable				$ 2.10
NI	09950610		Clip,cord		Appelez-nous	-
NI	297014500		Plug-suction Line		Appelez-nous	-
NI	5303212614		Clip,harness Mount				$ 2.88
NI	5303298960		Spacer-tube,0.237`` Id		Appelez-nous	-
