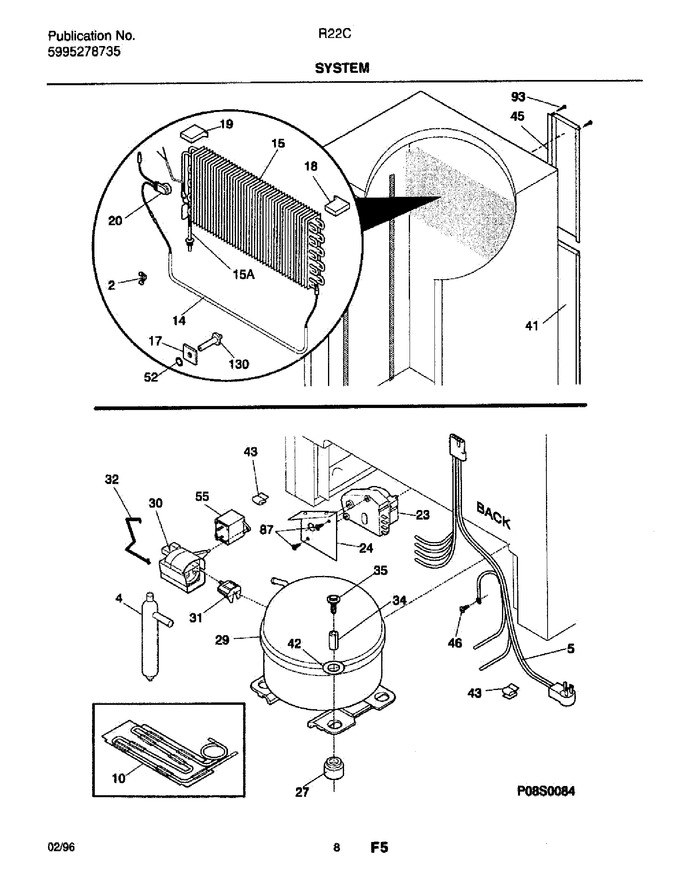

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	06599536		Clip, Heater		Appelez-nous	-
4	5303305677		Drier, Filter   (Replaces: 216099900)			Immediately	$ 31.67
5	216422400		Harness-wire,elec		Appelez-nous	-
10	216457300		Heater-drain Pan Assy		Appelez-nous	-
14	216254600		Heater-defrost				$ 259.53
15	216195900		Evaporator				$ 246.91
17	06599546		Spacer-support, Evaporator		Appelez-nous	-
18	06599531		Insulation Block, Rh		Appelez-nous	-
19	3017674		Insulation Block, Lh		Appelez-nous	-
20	216254500		Switch-termination, Tube Mt				$ 91.67
23	5308037967		Timer, Defrost		Appelez-nous	-
24	08016580		Bracket		Appelez-nous	-
27	216498900		Grommet,compressor   (Replaces: 5308002681)				$ 13.01
29	5304511983		Compressor   (Replaces: 5303925357)				$ 671.86
30	216008900		Starter-ptc		Appelez-nous	-
31	216100104		Overload Protector		Appelez-nous	-
32	215012000		Wire-bale				$ 2.63
34	5306594529		Sleeve-compressor				$ 10.34
35	5303272328		Screw, Ind Hex Sems, 1/4, 28 Unfx, Compressor				$ 10.34
41	216389800		Cover-wiring, Rear/bottom		Appelez-nous	-
42	5303298960		Spacer, Compressor		Appelez-nous	-
43	09950610		Clip		Appelez-nous	-
45	216389900		Cover-wiring, Rear/top		Appelez-nous	-
46	08037851		Screw, Ph Type Ab, 8, 32 X 1/2, Wiring Harness				$ 3.57
55	5304464438		Capacitor-run   (Replaces: 216236200)			Immediately	$ 35.38
87	08037849		Screw				$ 8.98
93	216858001		Screw   (Replaces: 5303161215)			Immediately	$ 10.85
130	06599544		Support, Evaporator		Appelez-nous	-
852	08013198		Retainer, Spacer Evap		Appelez-nous	-
	216384800		Harness-wire, Defrost Heater		Appelez-nous	-
	216422500		Harness-evaporator		Appelez-nous	-
15A	216424200		Heat Exchanger		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
