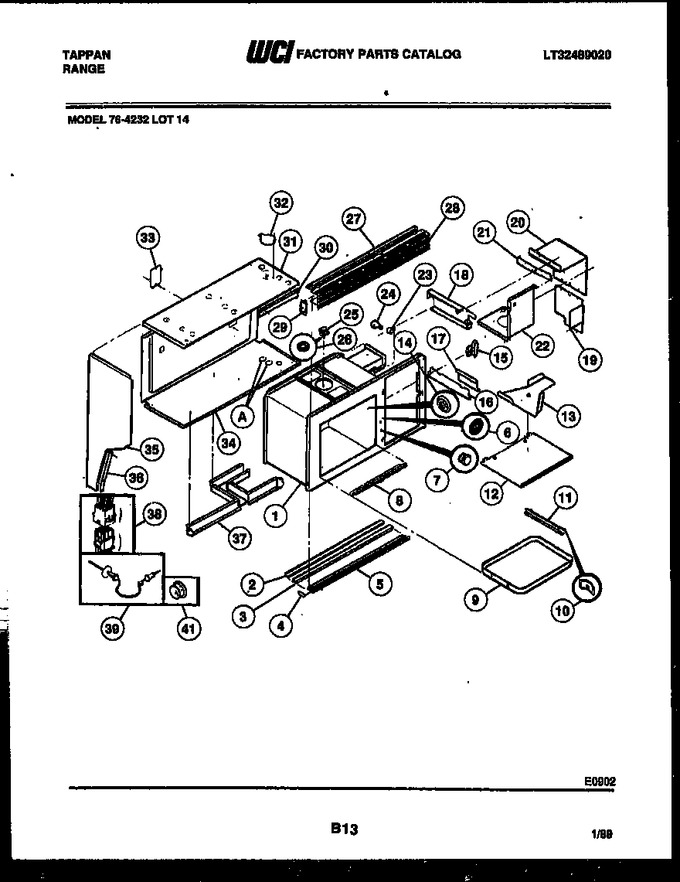

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 643T013P03 | Seal-microwave |
|
- | |||||
| 3 | 174T188P02 | Cover Micro Seal |
|
- | |||||
| 4 | 123T082P01 | Cap End |
|
- | |||||
| 5 | 740T408P03 | Trim-vent Bottom |
|
- | |||||
| 6 | 445T004P01 | Medallion, Door Strike |
|
- | |||||
| 7 | 287T003P08 | Grommet, Door Strike |
|
- | |||||
| 8 | 740T0479P01 | Trim-front Main |
|
- | |||||
| 9 | 736T005P01 | Tray-oven (glass) |
|
- | |||||
| 10 | 241T017P219 | Fastener-tray Guide |
|
- | |||||
| 11 | 280T053P01 | Glide Tray |
|
- | |||||
| 12 | 174T242P01 | Cover Stirrer |
|
- | |||||
| 13 | 239T043S02 | Fan Stirrer |
|
- | |||||
| 14 | 479T084P01 | Nut-receptacle Mtg |
|
- | |||||
| 15 | 597T035P01 | Receptacle, Probe |
|
- | |||||
| 16 | 008T480P01 | Angle, Air Baffle |
|
- | |||||
| 17 | 008T378F11 | Angle, Air Baffle |
|
- | |||||
| 18 | 136T321F02-18 | Channel Air |
|
- | |||||
| 19 | 174T267P01 | Cover-duct Bottom Extension |
|
- | |||||
| 20 | 174T253S02 | Cover-duct Bottom |
|
- | |||||
| 21 | 072T731F01 | Bracket Magnetron Support |
|
- | |||||
| 22 | 211T044F04 | Duct, Bottom |
|
- | |||||
| 23 | 662T027P02 | Socket, Light |
|
- | |||||
| 24 | 374T024P01 | Light Bulb |
|
- | |||||
| 25 | 115T463P01 | Motor, Stirrer |
|
- | |||||
| 26 | 789T061P01 | Washer, Microwave Seal |
|
- | |||||
| 27 | 3091366 | Retainer-vent Trim |
|
- | |||||
| 28 | 740T454P01 | Trim-vent |
|
- | |||||
| 29 | 123T081P05 | End Cap Lh |
|
- | |||||
| 30 | 3091470 | Shield-vent (r/h) |
|
- | |||||
| 31 | 3091373 | Panel-top O/u Hood |
|
- | |||||
| 32 | 174T204F01 | Cover Outlet |
|
- | |||||
| 33 | 174T169F01 | Cover, Light Access |
|
- | |||||
| 34 | 3091346 | Wrapper Back & Bottom |
|
- | |||||
| 35 | 515T043F01-66 | Panel-side Lh-wheat |
|
- | |||||
| 36 | 740T309F01 | Trim-splasher Side Lh |
|
- | |||||
| 37 | 211T046S01 | Duct-blower Air |
|
- | |||||
| 38 | 355T442S02 | Plug-disconnect |
|
- | |||||
| 39 | 115T563P03 | Probe-roast |
|
- | |||||
| 41 | 102T028P01 | Bushing, Wire |
|
- | |||||
| *20397 | 241T017P154 | Fastener-purselock |
|
- | |||||
| 10A | 557T028P01 | Plug-button (non-illustrated) |
|
- | |||||
| 29A | 123T081P06 | End Cap Rh |
|
- | |||||
| 30A | 3091212 | Shield Vent Lh |
|
- | |||||
| 35A | 515T043F02-66 | Panel-side Rh-wheat |
|
- | |||||
| 36A | 740T309F02 | Trim-splasher Side Rh |
|
- |
