Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5300083897		Condenser				$ 538.37
2	06599536		Clip, Heater		Appelez-nous	-
4	5303305677		Drier, Filter   (Replaces: 216099900)			Immediately	$ 31.67
5	216538000		Wiring-electrical, Main		Appelez-nous	-
14	216254600		Heater-defrost				$ 259.53
15	216195900		Evaporator				$ 246.91
17	06599546		Spacer-support, Evaporator		Appelez-nous	-
18	06599531		Insulation Block, Rh		Appelez-nous	-
19	3017674		Insulation Block, Lh		Appelez-nous	-
20	216254500		Switch-termination, Tube Mt				$ 91.67
23	216563000		Timer W/knob		Appelez-nous	-
24	08016580		Bracket		Appelez-nous	-
26	216511900		Spacer-tube		Appelez-nous	-
27	216498900		Grommet,compressor				$ 13.01
29	5304511983		Compressor Kit   (Replaces: 5303918003)				$ 671.86
30	216594300		Starter				$ 28.92
31	216100115		Overload Protector				$ 23.11
32	5303006412		Strap, Cover Mtg		Appelez-nous	-
34	5306594529		Sleeve-compressor				$ 10.34
35	5303272328		Screw, Ind Hex Sems, 1/4, 28 Unfx, Compressor				$ 10.34
41	216524000		Cover-wiring,rear		Appelez-nous	-
45	216389900		Cover-wiring, Rear/top		Appelez-nous	-
52	08013198		Retainer, Spacer Evap		Appelez-nous	-
53	08006982		Cover-terminal		Appelez-nous	-
64	216578800		Vent				$ 47.83
65	5309950074		Valve, Breather				$ 12.48
86	216036600		Screw, Rwhd (gx, Ca), 8, 32 X 1/2		Appelez-nous	-
87	5303916855		Tube, Plastic, Clear, Sensor Sleeve				$ 60.96
93	216858001		Screw   (Replaces: 5303161215)			Immediately	$ 10.85
130	06599544		Support, Evaporator		Appelez-nous	-
	216535400		Harness-evaporator		Appelez-nous	-
15A	216424200		Heat Exchanger		Appelez-nous	-
43A	09950610		Clip		Appelez-nous	-

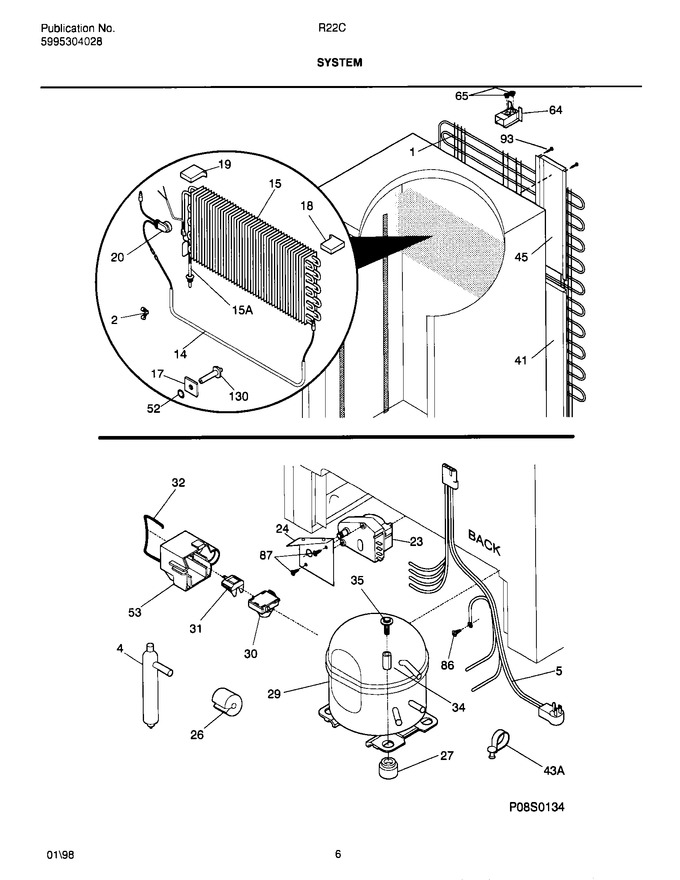

    View Diagram in Separate Window       Print Part List
