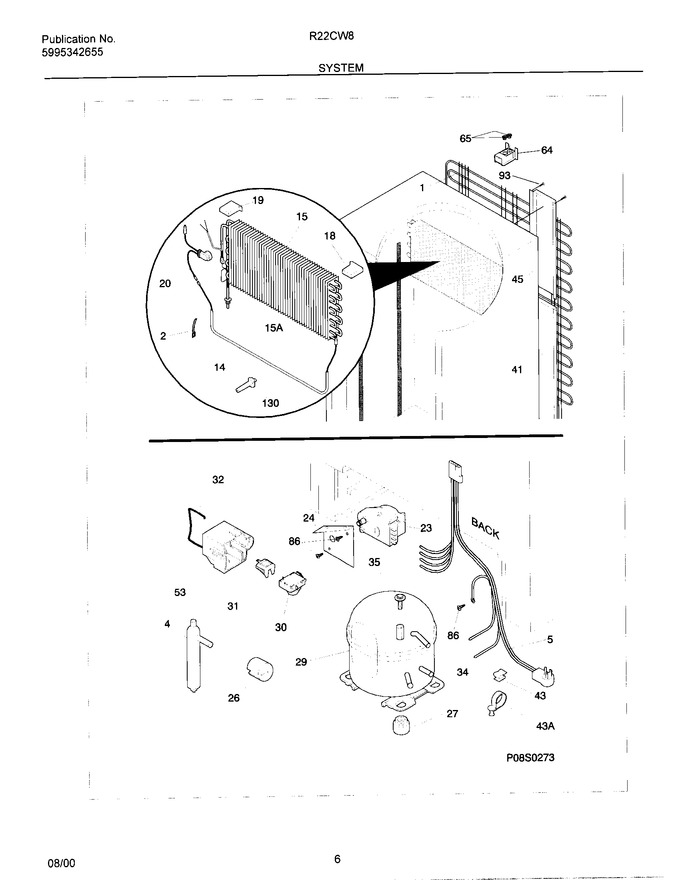

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5300083897		Condenser				$ 538.37
2	5308000110		Strap-evap/heater, Aluminum			Immediately	$ 59.82
4	5303305677		Drier-filter   (Replaces: 216634500)			Immediately	$ 31.67
5	216695600		Harness-main		Appelez-nous	-
14	216608500		Heater-defrost				$ 161.22
15	216725000		Evaporator		Appelez-nous	-
18	216383800		Gasket-evap Cover, Front		Appelez-nous	-
19	216383700		Gasket-evap Cover, Lh		Appelez-nous	-
20	216731001		Thermostat, Defrost			Immediately	$ 84.46
23	216563000		Timer-defrost, 12 Hour, With Knob		Appelez-nous	-
24	08016580		Bracket		Appelez-nous	-
26	216511900		Spacer-tube		Appelez-nous	-
27	216498900		Grommet,compressor				$ 13.01
29	5304511983		Compressor,service   (Replaces: 216639700)				$ 671.86
30	216594300		Starter				$ 28.92
31	216100115		Overload Protector				$ 23.11
32	5303006412		Strap, Cover Mtg		Appelez-nous	-
34	5306594529		Sleeve-compressor				$ 10.34
35	5303272328		Screw, Ind Hex Sems, 1/4, 28 Unfx, Compressor				$ 10.34
41	216524000		Cover-wiring,rear		Appelez-nous	-
43	09950610		Clip		Appelez-nous	-
45	216389900		Cover-wiring, Rear/top		Appelez-nous	-
53	08006982		Cover-terminal		Appelez-nous	-
64	216578800		Vent				$ 47.83
65	5309950074		Valve, Breather				$ 12.48
86	216036600		Screw, Rwhd (gx, Ca), 8, 32 X 1/2		Appelez-nous	-
93	216858001		Screw   (Replaces: 5303161215)			Immediately	$ 10.85
130	216730400		Support-evaporator		Appelez-nous	-
	216007500		Support-drain Pan		Appelez-nous	-
	216538000		Harness,electrical		Appelez-nous	-
	216689100		Harness-evaporator		Appelez-nous	-
15A	216424200		Heat Exchanger		Appelez-nous	-
43A	5303212614		Clip Harness				$ 2.88
