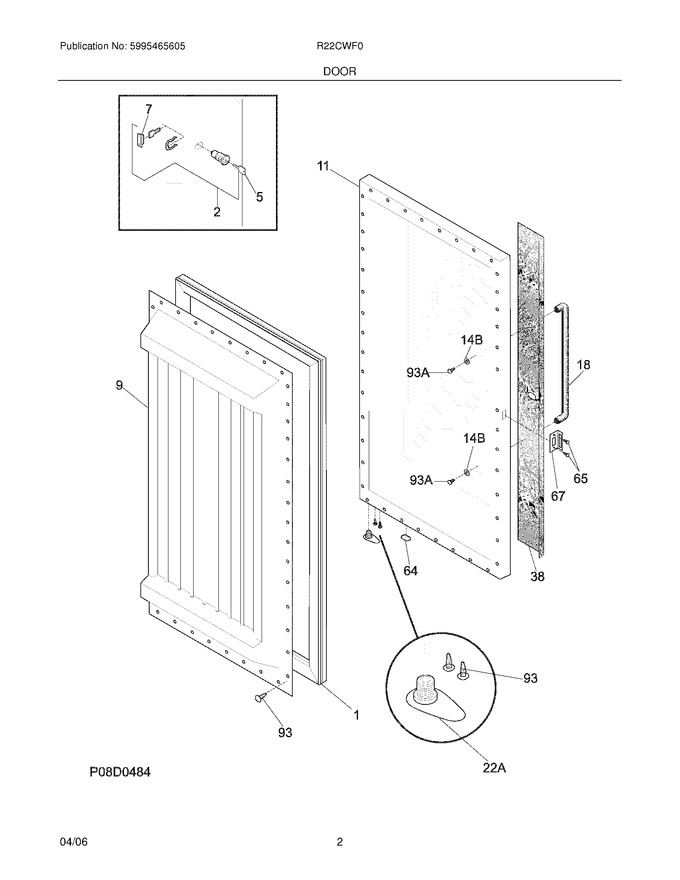

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304506125		Gasket-door,gray   (Replaces: 216522315)				$ 232.02
7	216468700		Bezel-lock				$ 35.28
9	216529700		Panel-inner Door				$ 287.76
11	216450100		Panel-outer Door,white		Appelez-nous	-
18	216714100		Handle-door		Appelez-nous	-
38	216322800		Trim-door		Appelez-nous	-
64	216403700		Plug-button,hole Filler ,door Base				$ 58.12
65	216423500		Screw-retainer		Appelez-nous	-
67	216423000		Retainer-lock		Appelez-nous	-
93	216858001		Screw,ph Truss Head ,8-18ab X 0.500   (Replaces: 5303161215)			Immediately	$ 10.85
14B	5303311368		Washer, Flat		Appelez-nous	-
22A	216335400		Bearing-hinge				$ 67.73
93A	5303302760		Screw,round Head Sems ,10-32 X 0.375				$ 8.72
F2	216362700		Lock Assy				$ 90.30
F5	216362800		Key, Lock				$ 5.79
NI	297083500		Plug-handle		Appelez-nous	-
NI	216923001		Plug Button,1/4``,white				$ 9.87
