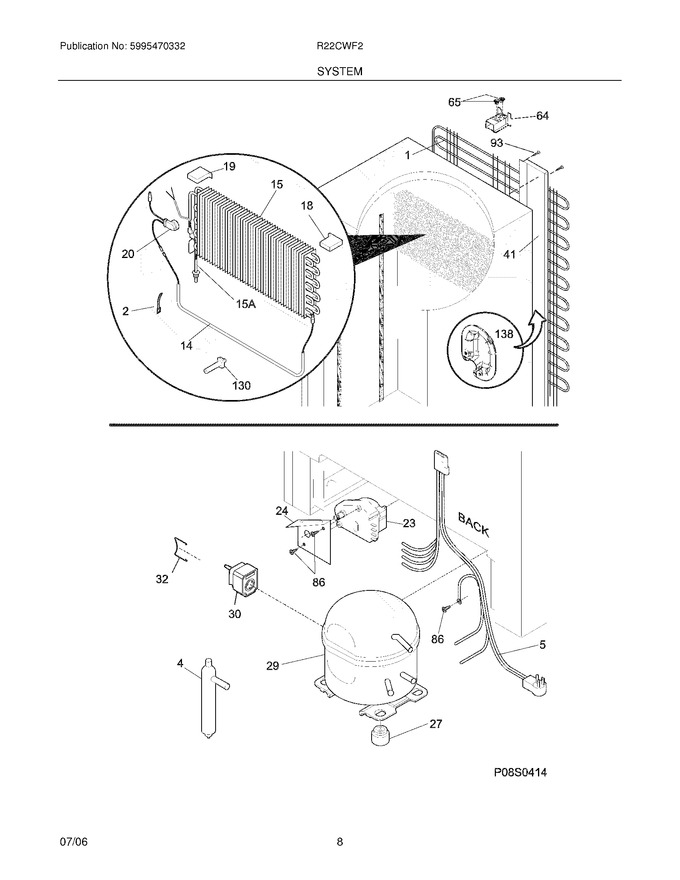

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	5308000110		Strap-evap/heater,aluminum ,(2)			Immediately	$ 59.82
14	216608500		Heater-defrost				$ 161.22
18	297078700		Insulator-evap,styrofoam				$ 8.14
19	297078800		Insulator-evap,styrofoam				$ 2.32
20	216731001		Thermostat, Defrost			Immediately	$ 84.46
24	08016580		Bracket		Appelez-nous	-
27	216498900		Grommet,compressor   (Replaces: 5308002681)				$ 13.01
30	297051000		Controller,compressor				$ 39.46
32	297051100		Clamp,elec Cont Mtg ,compressor		Appelez-nous	-
41	297070700		Cover-wiring,rear		Appelez-nous	-
64	216578800		Vent				$ 47.83
65	5309950074		Valve, Breather				$ 12.48
86	216036600		Screw,ph Washer Head ,8-32ca X 0.500 ,thread Forming		Appelez-nous	-
93	216858001		Screw,ph Truss Head ,8-18ab X 0.500   (Replaces: 5303161215)			Immediately	$ 10.85
130	216486800		Support,evaporator Mtg		Appelez-nous	-
138	297070800		Cover-drain Hose				$ 8.24
15A	216424200		Heat Exchanger		Appelez-nous	-
F1	5300083897		Condenser				$ 538.37
F15	216751300		Evaporator				$ 289.33
F23	5304518034		Timer-defrost   (Replaces: 216744500)			Immediately	$ 57.55
F29	5304478809		Compressor,kit W/grommets ,& Welded Clip   (Replaces: 297048100)			Immediately	$ 584.96
F4	5303305677		Drier-filter   (Replaces: 216938600)			Immediately	$ 31.67
F5	297082600		Harness-main		Appelez-nous	-
NI	216225700		Grommet-spacer				$ 7.77
NI	240491501		Screw-compressor Mtg,1/4-28 X 1.16 ,(4)		Appelez-nous	-
NI	297082300		Harness-jumper		Appelez-nous	-
NI	297102800		Spacer-tube		Appelez-nous	-
NI	5303311565		Clip-cable				$ 2.10

    View Diagram in Separate Window       Print Part List
