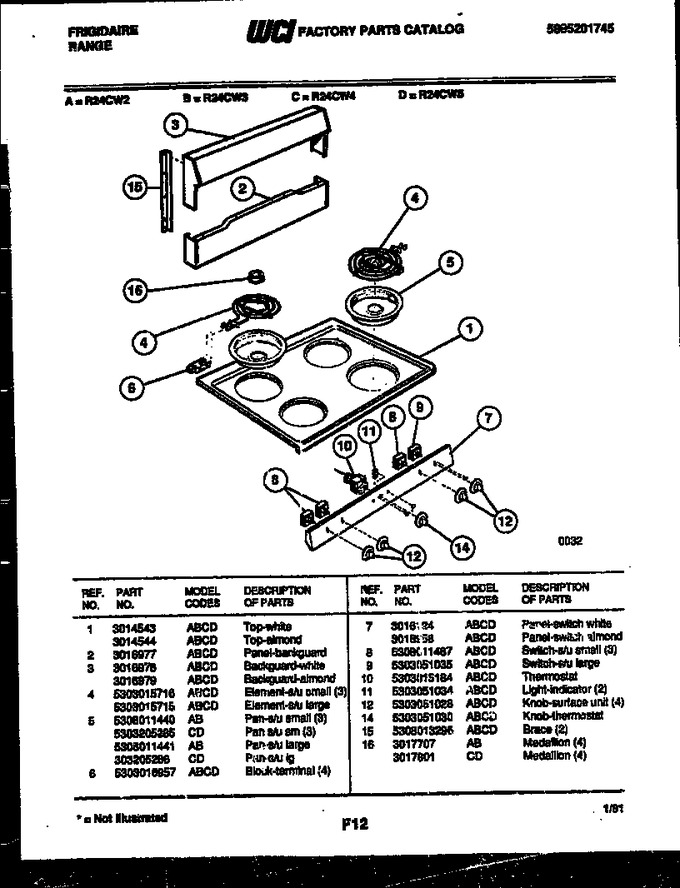

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
02 - Door Parts
03 - Backguard And Cooktop Parts
04 - Body Parts
05 - Drawer Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3014543 | Top-white |
|
- | |||||
| 2 | 3016977 | Panel-backguard |
|
- | |||||
| 3 | 3016978 | Backguard-white |
|
- | |||||
| 4 | 318372210 | Element-s/u Small (3) (Replaces: 5303015716) |
|
Immediately | $ 20.21 | ||||
| 5 | 5308011440 | Pan-s/u Small (3) |
|
- | |||||
| 6 | 5303016957 | Block-terminal (4) |
|
- | |||||
| 7 | 3016124 | Panel-switch White |
|
- | |||||
| 8 | 5308011487 | Switch-s/u Small (3) |
|
- | |||||
| 9 | 5303051035 | Switch-s/u Large |
|
- | |||||
| 10 | 5303015184 | Thermostat |
|
- | |||||
| 11 | 5303051034 | Light-indicator (2) |
|
- | |||||
| 12 | 5303051028 | Knob-surface Unit (4) |
|
- | |||||
| 14 | 5303051030 | Knob-thermostat |
|
- | |||||
| 15 | 5308013296 | Brace (2) |
|
- | |||||
| 16 | 3017707 | Medallion (4) |
|
- | |||||
| 4A | 316442300 | Element-s/u Large (Replaces: 5303015715) |
|
Immediately | $ 59.16 | ||||
| 5B | 5308011441 | Pan-s/u Large |
|
- |
