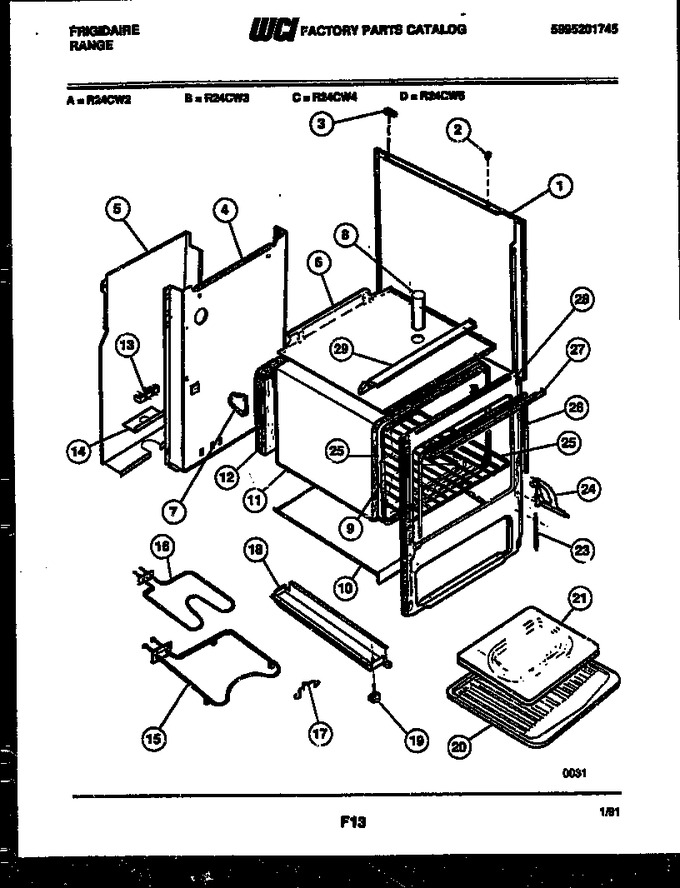

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303051061		Panel-side Lh & Rh White (2)		Appelez-nous	-
2	3051063		Grommet (2)		Appelez-nous	-
3	5303016129		Grommet (2)		Appelez-nous	-
4	3203613		Back-main		Appelez-nous	-
5	3203615		Cover-main Back		Appelez-nous	-
6	3205692		Burner-box		Appelez-nous	-
7	3051096		Support Rear Oven (2)		Appelez-nous	-
8	3057064		Tube-oven Vent		Appelez-nous	-
9	3017597		Liner-oven Bottom		Appelez-nous	-
9	3017600		Liner-oven Top		Appelez-nous	-
9	3016533		Liner-oven Rh		Appelez-nous	-
9	3017599		Liner-oven Lh		Appelez-nous	-
9	3017598		Liner-back		Appelez-nous	-
10	3016945		Pan-bottom		Appelez-nous	-
11	3016946		Insulation-wrap		Appelez-nous	-
12	3016947		Insulation-back		Appelez-nous	-
13	5304409888		Block, Terminal   (Replaces: 5306563359)			Immediately	$ 26.69
14	3203614		Support-conduit		Appelez-nous	-
15	5303009292		Element-bake		Appelez-nous	-
16	5303009293		Element-broil		Appelez-nous	-
17	5303009445		Support-broil Element		Appelez-nous	-
18	08068047		Base Rail		Appelez-nous	-
19	5303051080		Leg-leveling (4)		Appelez-nous	-
20	5303016973		Pan-broiler		Appelez-nous	-
21	5303017712		Grille		Appelez-nous	-
23	08011485		Spring (2)		Appelez-nous	-
24	5303204670		Hinge-assembly Rh		Appelez-nous	-
25	5303016128		Rack-oven (2)		Appelez-nous	-
26	5308013916		Seal-door		Appelez-nous	-
27	3016950		Support-control Pnl		Appelez-nous	-
28	3203612		Frame-front		Appelez-nous	-
*80358	5301145190		Strap, Ground		Appelez-nous	-
*80359	3934059		Anti-tip Kit		Appelez-nous	-
*80360	19100210113		Wiring Diagram (not For Purchase)		Appelez-nous	-
24A	5303204672		Hinge-assembly Lh		Appelez-nous	-
28A	3016951		Shield		Appelez-nous	-
