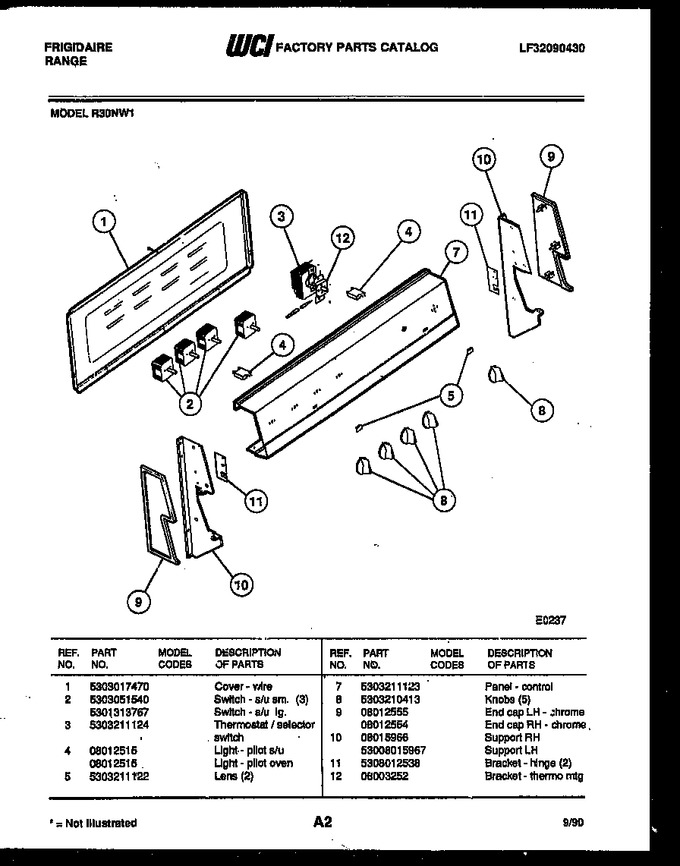

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303017470 | Cover, Wire. |
|
- | |||||
| 2 | 5303051540 | Switch - S/u Sm. (3) |
|
- | |||||
| 3 | 5303211124 | Thermostat/selector Switch |
|
- | |||||
| 4 | 08012515 | Light - Pilot S/u |
|
- | |||||
| 5 | 5303211122 | Lens (2) |
|
- | |||||
| 7 | 5303211123 | Panel - Control |
|
- | |||||
| 8 | 5303210413 | Knobs (5) |
|
- | |||||
| 10 | 08015966 | Support Rh |
|
- | |||||
| 11 | 5308012538 | Bracket, Hinge (2) |
|
- | |||||
| 12 | 08003252 | Bracket - Thermostat |
|
- | |||||
| 10A | 53008015967 | Support Lh |
|
- | |||||
| 2A | 5301313767 | Switch, S/u Lg. |
|
- | |||||
| 4A | 08012515 | Light - Pilot Oven |
|
- |
