View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
02 - Control Panel
03 - Cooktop Parts
04 - Door Parts
05 - Broiler Parts
06 - Body Parts
07 - Drawer Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

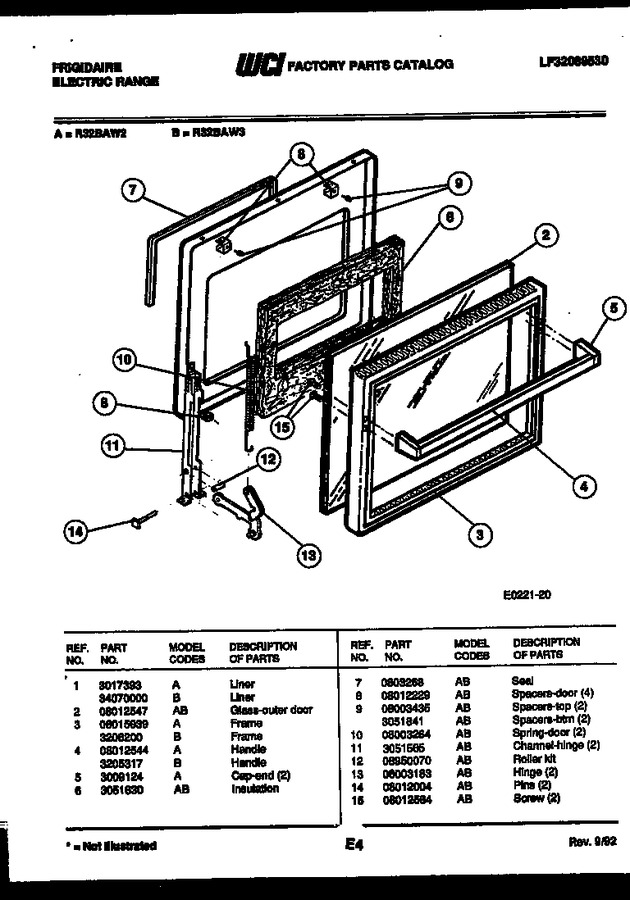

| 1 | 34070000 | Liner |
|
- | |||||
| 2 | 08012547 | Glass - Outer Door |
|
- | |||||
| 3 | 3206200 | Frame |
|
- | |||||
| 4 | 3205317 | Handle |
|
- | |||||
| 6 | 3051630 | Insulation |
|
- | |||||
| 7 | 0803268 | Seal |
|
- | |||||
| 8 | 08012229 | Spacers-door (4) |
|
- | |||||
| 9 | 08003435 | Spacer |
|
- | |||||
| 10 | 08003264 | Spring-oven Door |
|
- | |||||
| 11 | 3051565 | Channel Hinge (2) |
|
- | |||||
| 12 | 08950070 | Roller Kit |
|
- | |||||
| 13 | 08003183 | Door-hinge Arm |
|
- | |||||
| 14 | 08012004 | Pins (2) |
|
- | |||||
| 15 | 08012564 | Screw (2) |
|
- | |||||
| 4A | 3015715 | Element-s/u Lg. |
|
- | |||||
| 9A | 3051841 | Spacers-btm (2) |
|
- |
