02 - Control Panel, Cook-master, Switche
03 - Cook Top, Surface Units, Drip Pans,
04 - Cavity & Panels
05 - Oven Door Panels
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

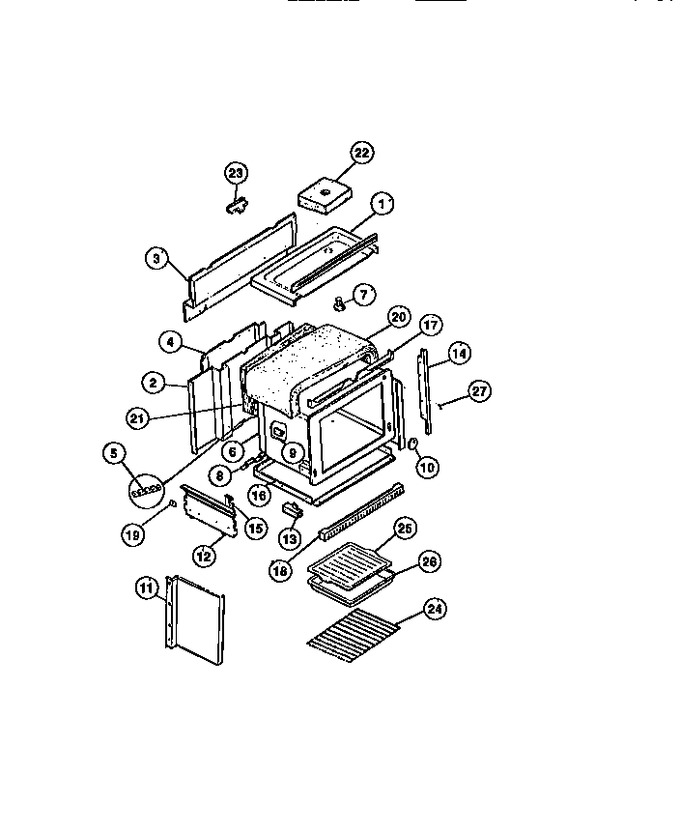

| 1 | 5303051553 | Panel, Subtop |
|
- | |||||
| 2 | 3204649 | Back, Range |
|
- | |||||
| 3 | 5308008689 | Back Range, Upper |
|
- | |||||
| 4 | 3204650 | Cover, Wire |
|
- | |||||
| 5 | 5303051098 | Terminal Block |
|
- | |||||
| 6 | 3205131 | Liner, Oven |
|
- | |||||
| 7 | 08003333 | Tube, Vent |
|
- | |||||
| 8 | 3203574 | Plate-mtg |
|
- | |||||
| 9 | 3051552 | Brkt, Thermobulb |
|
- | |||||
| 10 | 3204815 | Cover, Oven Light |
|
- | |||||
| 11 | 08012226 | Retainer, Insul (2) |
|
- | |||||
| 12 | 5308015935 | Panel, Side (2) |
|
- | |||||
| 13 | 3051528 | Brkt, Supt Lh (2) |
|
- | |||||
| 13 | 3051527 | Brkt, Supt. Rh (2) |
|
- | |||||
| 14 | 08003334 | Trim, Ovn Frnt (2) |
|
- | |||||
| 15 | 08016267 | Closure, End Cap (2) |
|
- | |||||
| 16 | 3204634 | Retainer, Insul Btm |
|
- | |||||
| 17 | 3206425 | Bracket, Cooktop |
|
- | |||||
| 18 | 5308012249 | Grill, Bottom |
|
- | |||||
| 19 | 3051827 | Plate, Filler (2) |
|
- | |||||
| 20 | 3051521 | Insulation Wrap |
|
- | |||||
| 21 | 5303051630 | Insulation-back |
|
- | |||||
| 22 | 3051523 | Insulation, Vent Tube |
|
- | |||||
| 23 | 3051800 | Brkt, Hng Support |
|
- | |||||
| 24 | 5303131973 | Rack, Oven (2) |
|
- | |||||
| 25 | 3203164 | Grill, Broiler |
|
- | |||||
| 26 | 08005315 | Pan, Broiler |
|
- | |||||
| 26A | 3203578 | Plate, Warning (ni) |
|
- | |||||
| 26B | K1164545 | Rivet, Pop (2) (ni) |
|
- |
