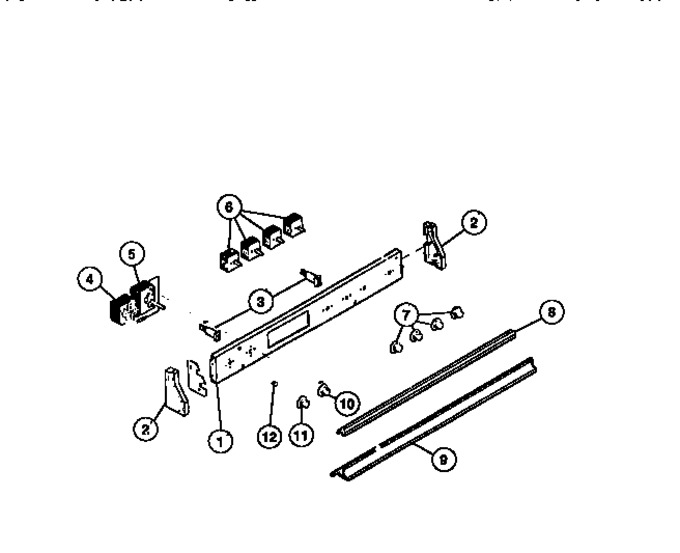

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 08015954 | Panel, Control |
|
- | |||||
| 2 | 08015936 | Cap, End Rh |
|
- | |||||
| 3 | 3051676 | Light, Ind S/u |
|
- | |||||
| 4 | 08015934 | Switch, Sel |
|
- | |||||
| 5 | 5308015942 | Thermostat |
|
- | |||||
| 6 | 530351540 | Switch, S/u Sm (3) |
|
- | |||||
| 6 | 5301313767 | Switch, S/u Lge |
|
- | |||||
| 7 | 08015955 | Knob, S/u (4) |
|
- | |||||
| 8 | 08015917 | Trim, Top |
|
- | |||||
| 9 | 08015921 | Trim, Bottom |
|
- | |||||
| 10 | 08015959 | Knob, Thermostat |
|
- | |||||
| 11 | 3051596 | Knob, Set Sw |
|
- | |||||
| 12 | 3016821 | Lens, Ind Lt |
|
- | |||||
| 12A | 5305113502 | Shield, Wire (ni) |
|
- | |||||
| 2A | 08015937 | Cap, End Lh |
|
- | |||||
| 3A | 08015930 | Light, Ind Oven |
|
- |
