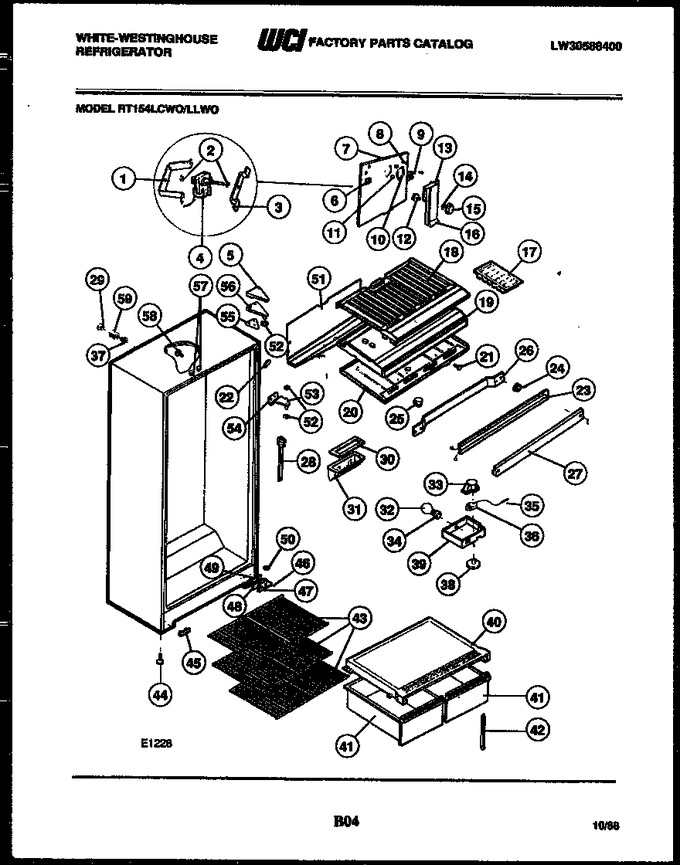

02 - Door Parts
03 - Cabinet Parts
04 - System And Automatic Defrost Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | G174747-11 | Button-plug, Almond |
|
- | |||||
| 2 | G162667-07 | Control, Temperature |
|
- | |||||
| 3 | G187464 | Timer Defrost |
|
- | |||||
| 4 | G170465 | Deflector Light |
|
- | |||||
| 5 | G183714 | Bracket, Top Hinge |
|
- | |||||
| 6 | G183861 | Shim Top Hinge |
|
- | |||||
| 7 | G183558-11 | Cover Hinge, Almond |
|
- | |||||
| 7 | G103903 | Washer, Nylon |
|
$ 3.10 | |||||
| 8 | G168510 | Socket-light |
|
- | |||||
| 9 | G25806 | Bulb Light |
|
- | |||||
| 10 | G169850 | Damper Air |
|
- | |||||
| 11 | 3015057 | Insulation Air Duct |
|
- | |||||
| 12 | G169950-05 | Knob Damper Center |
|
- | |||||
| 13 | G169949-06 | Shield Light |
|
- | |||||
| 14 | G169836 | Duct Air |
|
- | |||||
| 15 | G162881-24 | Knob Temperature Control |
|
- | |||||
| 16 | 3015056 | Insulation Duct |
|
- | |||||
| 17 | G171508 | Nut Push |
|
- | |||||
| 18 | G170287 | Housing - Control Cap. Tube |
|
- | |||||
| 19 | G169749 | Cover Control Mounting Bracket |
|
- | |||||
| 20 | G170001-01 | Damper Meat Keeper |
|
- | |||||
| 21 | G180195-02 | Shelf Wire (4) |
|
- | |||||
| 22 | G187267-10 | Trim Shelf (4) |
|
- | |||||
| 23 | G185303 | Bracket-motor Mounting Rear |
|
- | |||||
| 24 | G157666 | Bushing, Motor Mounting (2) |
|
- | |||||
| 25 | G169597 | Housing Fan Motor |
|
- | |||||
| 26 | G185302 | Bracket-motor Mounting Front |
|
- | |||||
| 27 | G174705 | Fan |
|
- | |||||
| 28 | G169608 | Cover - Fan |
|
- | |||||
| 29 | G158289 | Motor Blower |
|
- | |||||
| 30 | G162383 | Bracket-lower Hinge |
|
- | |||||
| 31 | G162903 | Shim-lower Hinge |
|
- | |||||
| 32 | G149762 | Switch Light |
|
- | |||||
| 33 | G163080-03 | Grille Lower Panel |
|
- | |||||
| 34 | G162994 | Clip-grille (2) |
|
- | |||||
| 35 | G154397 | Plug, Grille |
|
- | |||||
| 36 | G163915-01 | Cover Crisper Upper |
|
- | |||||
| 37 | G179707-03 | Pan Storage Upper |
|
- | |||||
| 38 | G163916-01 | Cover, Crisper, Lower |
|
- | |||||
| 39 | G179708-03 | Pan Storage Lower |
|
- | |||||
| 40 | G156376-01 | Tray-plastic Ice (2) |
|
- | |||||
| 41 | G174360 | Pan - Defrost |
|
- | |||||
| 42 | G164843 | Tube Drain |
|
- | |||||
| 43 | G186731 | Roller Adjustable Front (2) |
|
- | |||||
| 44 | G162808 | Roller Rear (2) |
|
- | |||||
| 45 | G162809 | Pin Roller (2) |
|
- | |||||
| 46 | G162662 | Nut - Push (2) |
|
- | |||||
| 47 | G170694 | Channel, Shelf Mounting (2) |
|
- | |||||
| 48 | G169812 | Bracket Control Mounting |
|
- | |||||
| 49 | G85642 | Tube-rubber (4) |
|
- | |||||
| 50 | G174733 | Ferrule, Outer |
|
- | |||||
| 51 | G174734 | Ferrule, Inner |
|
- | |||||
| *16830 | 3201496 | Label-freezer Temperature Control |
|
- | |||||
| *16830 | 3201497 | Label-refrigerator Temperature Control |
|
- | |||||
| 31A | G142361 | Pin |
|
- |
