SELECT A DIAGRAM

01 - Chest Of Drawers


02 - Doors


03 - Freezer Compartment


04 - Fresh Food Compartment


05 - Unit Compartment & System


06 - Water & Ice Dispenser

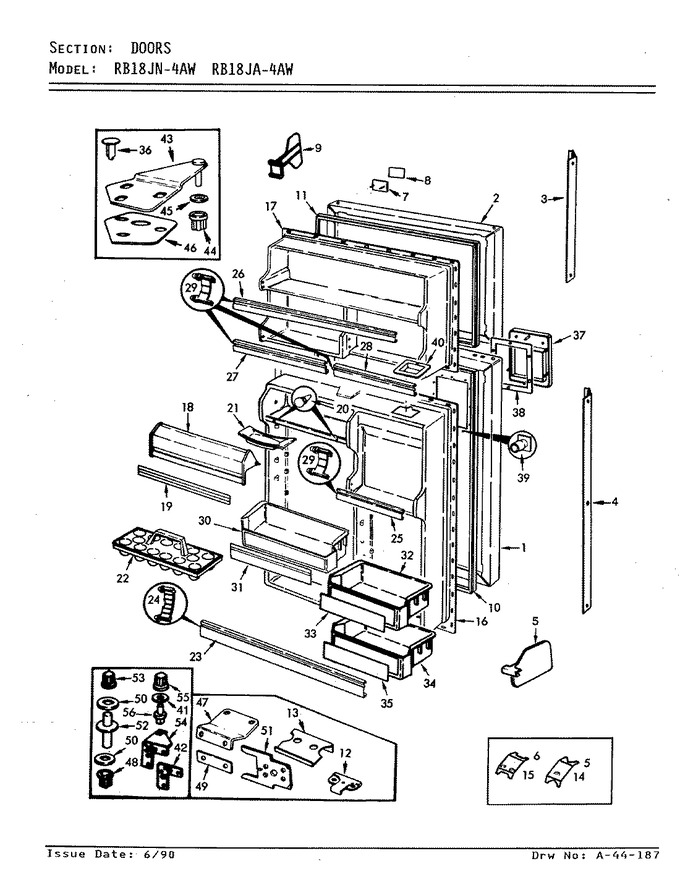

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	60032-87-AM		Outer Panel		Appelez-nous	-
2	60033-62-AM		Outer Panel		Appelez-nous	-
2	RA95056-1		Door Insulation Kit		Appelez-nous	-
3	68402-3		Handle, Extruded		Appelez-nous	-
3	9986-122		Screw		Appelez-nous	-
4	68402-4		Handle, F.f. Door		Appelez-nous	-
5	66645-6		Organizer Package		Appelez-nous	-
6	60123-2		Clip, Stop Screw		Appelez-nous	-
7	66981-4		Insert, Nameplate		Appelez-nous	-
8	66982-10		Insert, Nameplate		Appelez-nous	-
9	64097-11		Organizer, Shelf		Appelez-nous	-
10	WP70048-3		Gasket, F.f. Door   (Replaces: 66199-6)				$ 283.11
11	66199-5		Gasket, Frz. Door		Appelez-nous	-
12	60030-5		Door Stop, F.f. Door		Appelez-nous	-
12	9986-108		Screw		Appelez-nous	-
13	60030-1		Door Stop		Appelez-nous	-
14	56209-3		Clip, Stop Screw		Appelez-nous	-
15	60123-2		Clip, Stop Screw		Appelez-nous	-
16	65275-5		Screw		Appelez-nous	-
16	65939-9		Liner, Door		Appelez-nous	-
17	65940-5		Liner, Door		Appelez-nous	-
18	60406-45		Door, Dairy		Appelez-nous	-
19	68128-2		Insert		Appelez-nous	-
20	28272-6		Bumper, Door		Appelez-nous	-
21	29936-2		Tray, Butter		Appelez-nous	-
22	60066-1		Tray, Egg		Appelez-nous	-
23	WP61003045		Trim, Door   (Replaces: 68375-7)				$ 129.55
24	65246-1		Retainer				$ 5.04
25	68376-13		Trim, Shelf		Appelez-nous	-
26	WP61003045		Trim, Shelf   (Replaces: 68375-17)				$ 129.55
27	WP61003045		Trim, Shelf   (Replaces: 68375-10)				$ 129.55
28	WP61003045		Trim   (Replaces: 68375-9)				$ 129.55
29	WP65245-1		Retainer, Shelf Trim   (Replaces: 65245-1)				$ 9.39
30	60037-35		Door Shelf		Appelez-nous	-
31	68130-53		Insert		Appelez-nous	-
32	60037-36		Shelf, Pick-off		Appelez-nous	-
33	68130-52		Insert		Appelez-nous	-
34	60037-35		Door Shelf		Appelez-nous	-
35	68130-52		Insert		Appelez-nous	-
36	56144-9		Plug Button, Hinge Screw (alm)		Appelez-nous	-
37	60482-61		Escutcheon		Appelez-nous	-
38	63057-1		Seal, Escutcheon		Appelez-nous	-
39	65211-2		Retainer, Escutcheon		Appelez-nous	-
40	402038-1		Screw		Appelez-nous	-
40	66775-6		Collar		Appelez-nous	-
41	54233-4		Spacer				$ 7.70
42	9986-122		Screw		Appelez-nous	-
42	60626-1		Shim, Lower Hinge		Appelez-nous	-
43	WP3-24838-048		Screw   (Replaces: 9986-87)				$ 7.00
43	65003-3		Cover, Upper Hinge (alm)		Appelez-nous	-
44	66037-1		Hinge Bushing		Appelez-nous	-
45	WP52185-1		Washer   (Replaces: 52185-1)			Immediately	$ 9.47
46	65031-1		Shim, Upper Hinge		Appelez-nous	-
47	60031-2		Door Hinge, Center		Appelez-nous	-
47	WP3-24838-048		Screw   (Replaces: 9986-107)				$ 7.00
48	60036-1		Bracket		Appelez-nous	-
49	60034-1		Spacer, Center Hinge		Appelez-nous	-
50	WP52185-1		Washer   (Replaces: 52185-1)			Immediately	$ 9.47
51	60622-1		Tapping Plate		Appelez-nous	-
52	60035-4		Pin, Center Hinge		Appelez-nous	-
53	66036-1		Bushing,top/center Hinge		Appelez-nous	-
54	403062-5		Screw		Appelez-nous	-
54	60630-3		Hinge		Appelez-nous	-
55	66034-1		Bushing, Lower Hinge				$ 19.76
56	65418-1		Pin		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
