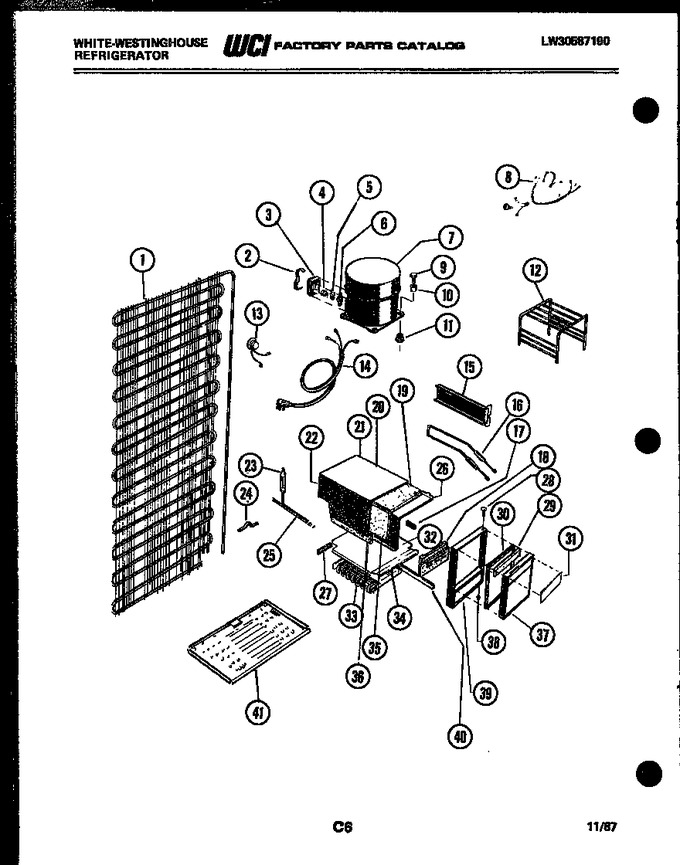

02 - Door Parts
03 - Cabinet Parts
04 - System And Automatic Defrost Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | G189439 | Condenser |
|
- | |||||
| 2 | G166057 | Strap, Bale |
|
- | |||||
| 3 | G166056 | Cover, Terminal |
|
- | |||||
| 4 | G187544 | Overload |
|
- | |||||
| 5 | G182225-15 | Relay |
|
- | |||||
| 6 | G188957 | Clip-overload |
|
- | |||||
| 7 | 3916008 | Compressor |
|
- | |||||
| 8 | R900976 | Harness Comp & Lights |
|
- | |||||
| 9 | G183344 | Screw Comp Mtg (3) |
|
- | |||||
| 10 | G154588 | Sleeve Comp Mtg (3) |
|
- | |||||
| 11 | G177617 | Grommet Comp. Mtg (4) |
|
- | |||||
| 12 | G165063 | Rack Ice Cube Try |
|
- | |||||
| 13 | G166153 | Thermos Defrost |
|
- | |||||
| 14 | G162549-01 | Cord, Service |
|
- | |||||
| 15 | G187142 | Shield Defr Htr |
|
- | |||||
| 16 | G187141 | Heater Defrost |
|
- | |||||
| 17 | G171003 | Magnet Frzr Hsg |
|
- | |||||
| 18 | G169964 | Insulation Front |
|
- | |||||
| 19 | G169831 | Insulation, Top |
|
- | |||||
| 20 | R900941 | Insulator, Top |
|
- | |||||
| 21 | G171082 | Housing Outer Tp |
|
- | |||||
| 22 | G171083 | Housing Outer Sd |
|
- | |||||
| 23 | G186717 | Drier |
|
- | |||||
| 24 | G164637 | Brackt Cond Mtg (4) |
|
- | |||||
| 25 | G170983 | Exchanger Heat |
|
- | |||||
| 26 | G169800 | Housing Inner |
|
- | |||||
| 27 | G170779 | Insulation Evap |
|
- | |||||
| 28 | G169863 | Pin Upper Hinge |
|
- | |||||
| 29 | G171694 | Insul Frnt Panel |
|
- | |||||
| 30 | G169975 | Gasket Evap Door |
|
- | |||||
| 31 | G178055 | Label Evap Door |
|
- | |||||
| 32 | G169954 | Insulation Evap. |
|
- | |||||
| 33 | G189134 | Evaporator |
|
- | |||||
| 34 | G169589 | Bottom Freezer |
|
- | |||||
| 35 | G169832 | Insul Frzr Side |
|
- | |||||
| 36 | G169833 | Insul Frzr Lower |
|
- | |||||
| 37 | G169874-06 | Door Evap Outer |
|
- | |||||
| 38 | G170002 | Pin - Lower Hinge |
|
- | |||||
| 39 | G169891-05 | Panel Frzr Front |
|
- | |||||
| 40 | G170533-02 | Gasket Freezer |
|
- | |||||
| 41 | G175411 | Plate, Defrost |
|
- | |||||
| 33A | G165546 | Strap Alum. (2) (non-illustrated) |
|
- | |||||
| 37A | G169862 | Door Evap Inner (non-illustrated) |
|
- | |||||
| 37B | G169965 | Insulation Door (non-illustrated) |
|
- |
