01 - Chest Of Drawers


02 - Doors


03 - Freezer Compartment


04 - Fresh Food Compartment


05 - Unit Compartment & System


06 - Water & Ice Dispenser

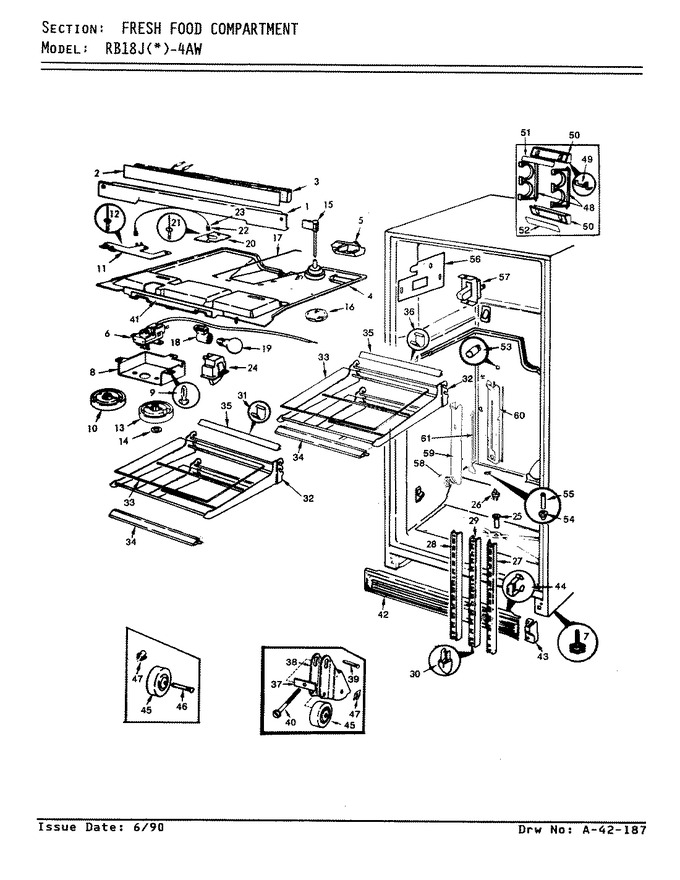

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9986-117		Screw		Appelez-nous	-
1	66491-2-AM		Channel		Appelez-nous	-
2	60105-8		Heater Wire		Appelez-nous	-
3	60140-2		Insulation		Appelez-nous	-
3	65274-1		Wire Harness		Appelez-nous	-
4	60085-57		Top, F.f. Compartment		Appelez-nous	-
5	60120-2		Deflector		Appelez-nous	-
6	406013-1		Screw		Appelez-nous	-
6	WP68601-6		Control, Temperature   (Replaces: 68119-3)			Immediately	$ 233.80
7	W11117769		Leg, Leveling   (Replaces: 6012-8)			Immediately	$ 16.61
8	405012-1		Screw		Appelez-nous	-
8	60083-1		Cover, Temperature Control		Appelez-nous	-
9	28013-2		Rivet, Air Tunnel		Appelez-nous	-
10	68520-5		Knob, Control		Appelez-nous	-
11	60147-1		Bracket, Control		Appelez-nous	-
12	WP210720		Rivet   (Replaces: 26397-2)				$ 12.14
13	W11233072		Screw   (Replaces: 405016-103)			Immediately	$ 12.62
13	68520-6		Knob, Control		Appelez-nous	-
14	420092-900		Washer, Spring		Appelez-nous	-
15	60071-1		Damper		Appelez-nous	-
16	60082-3		Crank, Frzr Control		Appelez-nous	-
17	60078-3		Rod		Appelez-nous	-
18	60577-1		Socket, Light		Appelez-nous	-
19	40A15		Bulb, Light (40 Watt)   (Replaces: 31956)			Immediately	$ 1.98
20	60147-2		Bracket, Light Socket		Appelez-nous	-
21	WP210720		Rivet   (Replaces: 26397-2)				$ 12.14
22	29675-22		Ground Wire		Appelez-nous	-
23	29675-28		Ground Wire		Appelez-nous	-
24	55732-3		Switch		Appelez-nous	-
24	54653-30		Lead		Appelez-nous	-
25	54531-8		Grommet		Appelez-nous	-
26	65039-1		Cap, Drain Tube		Appelez-nous	-
27	68238-2		Rail, Cantilever Shelf		Appelez-nous	-
28	68238-1		Rail, Cantilever Shelf		Appelez-nous	-
29	68238-3		Rail, Cantilever Shelf		Appelez-nous	-
30	400037-28		Screw		Appelez-nous	-
30	60340-1		End Cap, Center Rail		Appelez-nous	-
31	66333-1		Clip, Shelf Trim		Appelez-nous	-
32	60570-15		Frame, Shelf		Appelez-nous	-
33	68139-15		Glass, Split Shelf		Appelez-nous	-
34	68136-21		Trim		Appelez-nous	-
35	65276-4		Trim, Meat Shelf (rear)		Appelez-nous	-
36	66333-1		Clip, Shelf Trim		Appelez-nous	-
37	59101-1		Tapping Plate, Wheel		Appelez-nous	-
38	64965-1		Pin, Wheel		Appelez-nous	-
39	67530-1		Bracket, Wheel		Appelez-nous	-
40	406083-1		Screw, Wheel Adjustment		Appelez-nous	-
41	60571-46		Insert		Appelez-nous	-
42	60237-49		Kickplate		Appelez-nous	-
43	402039-4		Screw		Appelez-nous	-
44	60100-1		Clip, Kickplate				$ 5.85
44	WP489478		Screw   (Replaces: 400017-1)				$ 6.98
45	29834-2		Wheel		Appelez-nous	-
46	29835-2		Pin, Wheel		Appelez-nous	-
47	60216-1		Clip		Appelez-nous	-
48	WP489478		Screw   (Replaces: 400017-1)				$ 6.98
48	56519-4		Rack, Wine		Appelez-nous	-
49	58057-1		Spring, Wine Rack		Appelez-nous	-
50	65689-1		Support, Wine Rack		Appelez-nous	-
51	65753-25		Insert		Appelez-nous	-
52	65753-26		Insert		Appelez-nous	-
53	19530-36		Nylon Nut		Appelez-nous	-
54	55512-1		Grommet		Appelez-nous	-
55	55513-1		Tube		Appelez-nous	-
56	60583-1		Bracket, Switch		Appelez-nous	-
57	60585-1		Switch, Mullion Heater		Appelez-nous	-
57	402013-1		Screw		Appelez-nous	-
57	29675-32		Ground Wire		Appelez-nous	-
58	68282-1		Bellows, Air Tunnel		Appelez-nous	-
59	68391-1		Cover, Air Inlet		Appelez-nous	-
60	68289-4		Insulation, Air Tunnel		Appelez-nous	-
61	68290-3		Damper, Air Tunnel		Appelez-nous	-
61	W11233072		Screw   (Replaces: 400015-28)			Immediately	$ 12.62
