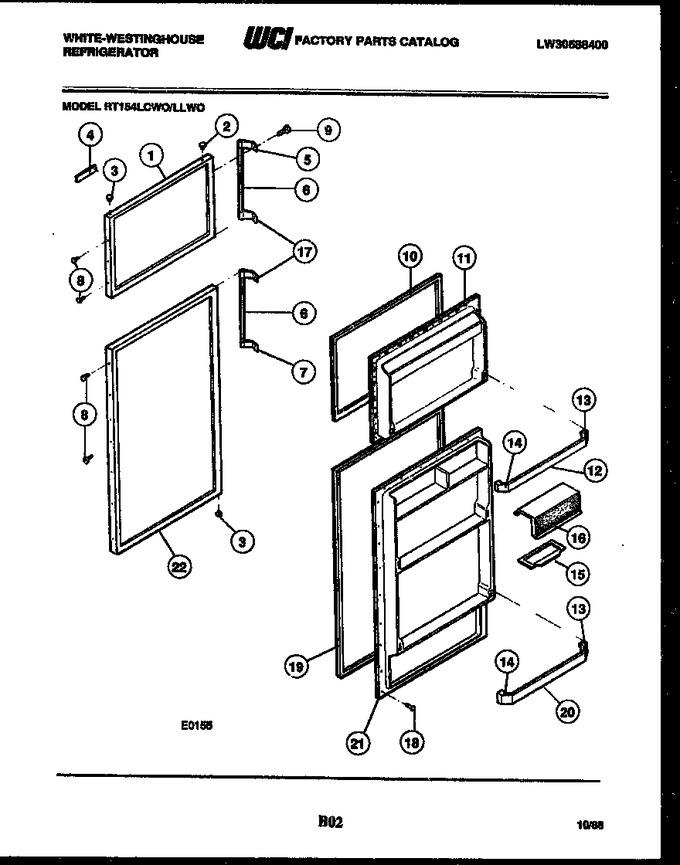

02 - Door Parts


03 - Cabinet Parts


04 - System And Automatic Defrost Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	G172367-09		Panel-wheat		Appelez-nous	-
2	G183138		Bearing, Hinge (4)		Appelez-nous	-
3	G162977-09		Button Plug-wheat		Appelez-nous	-
4	G186932-10		Gasket Door		Appelez-nous	-
5	G161079		Dish, Butter		Appelez-nous	-
6	G490079-14		Rack-refrigerator Door (3)		Appelez-nous	-
7	3200439		Support-door Rack Rh (3)		Appelez-nous	-
8	3018924		Support-door Rack Lh (3)		Appelez-nous	-
9	G162855-47		Door Dairy (2)		Appelez-nous	-
10	G164109-15		Rack-door Shelf (2)		Appelez-nous	-
11	G163781-01		Cap-rack End Rh (2)		Appelez-nous	-
12	G163780-01		Cap-rack End Lh (2)		Appelez-nous	-
13	G167115		Screw Rack (4)		Appelez-nous	-
14	G101890		Rivet		Appelez-nous	-
15	G144049		Screw		Appelez-nous	-
16	G177398-01		Panel Inner		Appelez-nous	-
17	G173948-15		Container Egg		Appelez-nous	-
18	G165376		Bumper - Light Switch		Appelez-nous	-
19	G155072		Stop,door		Appelez-nous	-
20	G169332-09		Button Plug, Wheat		Appelez-nous	-
21	G177141-02		Handle Door		Appelez-nous	-
22	G177143		End-handle Bottom		Appelez-nous	-
23	G177142		End Handle Top		Appelez-nous	-
24	G185566		Screw		Appelez-nous	-
25	G169487-09		Kit-door Conversion Wheat		Appelez-nous	-
25	G176985		Nameplate		Appelez-nous	-
22A	G179271		Trim Handle End (non-illustrated)		Appelez-nous	-
22B	G177144		Clip Handle (2) (non-illustrated)		Appelez-nous	-
23A	G179270		Trim Handle End (non-illustrated)		Appelez-nous	-
23B	G177144		Clip Handle (2) (non-illustrated)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
