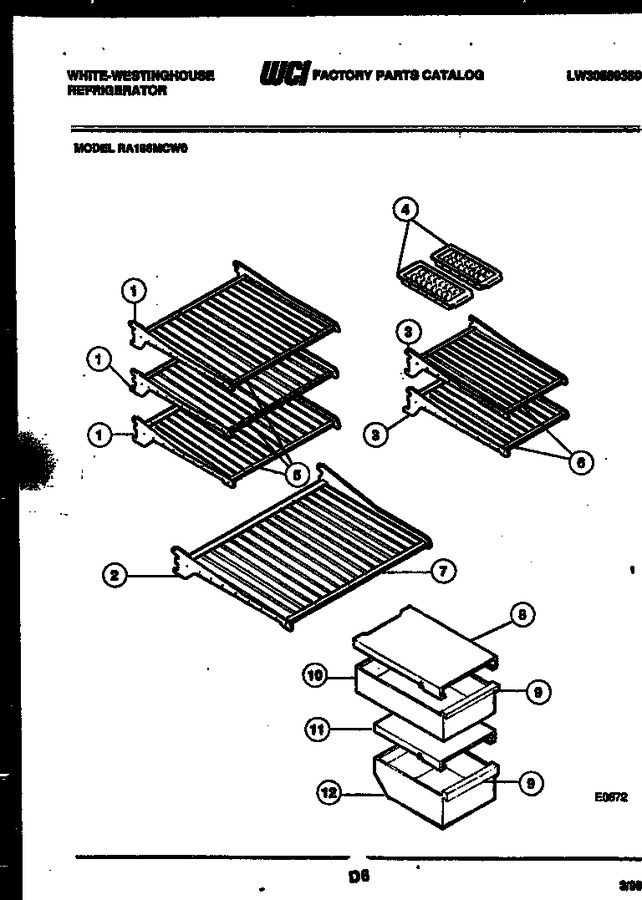

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303207210 | Cantilever Shelf (3) |
|
- | |||||
| 2 | 5303208895 | Shelf-full |
|
- | |||||
| 3 | 5303207212 | Cantilever Shelf (2) |
|
- | |||||
| 4 | 5303001324 | Ice Tray-plastic (2) |
|
- | |||||
| 5 | 5303207211 | Trim-front (3) |
|
- | |||||
| 6 | 5303207093 | Trim-front (2) |
|
- | |||||
| 7 | 5303206537 | Trim-front |
|
- | |||||
| 8 | 5308008727 | Cover-pan Upper |
|
- | |||||
| 9 | 5303208892 | Trim-pan (2) |
|
- | |||||
| 10 | 5303208894 | Pan-upper |
|
- | |||||
| 11 | 5316391601 | Cover-pan Lower |
|
- | |||||
| 12 | 5303208893 | Pan-lower |
|
- | |||||
| *26862 | 5303206533 | Hanging Egg Rack |
|
- | |||||
| *26862 | G170910 | Clip-cantilever Shelf (12) |
|
- | |||||
| 8A | 3018752 | Gasket-crisper (non-illustrated) |
|
- |
