01 - Chest Of Drawers
02 - Doors

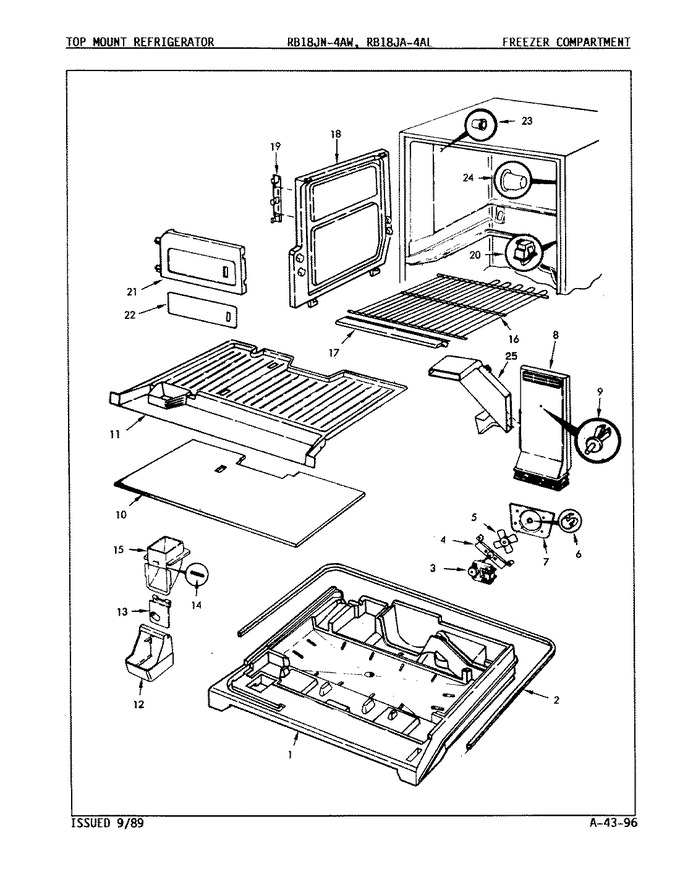

03 - Freezer Compartment
04 - Fresh Food Compartment
05 - Unit Compartment & System
06 - Water & Ice Dispenser
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 67458-2 | Tray, Styrofoam |
|
- | |||||
| 2 | 66325-6 | Seal |
|
- | |||||
| 3 | 406062-1 | Screw |
|
- | |||||
| 3 | WP61004888 | Motor, Evaporator Fan (Replaces: 54482-10) |
|
Immediately | $ 104.99 | ||||
| 3 | 29675-30 | Ground Wire |
|
- | |||||
| 3 | 60565-1 | Wire Harness |
|
- | |||||
| 4 | 400015-12 | Screw |
|
- | |||||
| 4 | 64856-1 | Bracket, Fan Motor |
|
- | |||||
| 5 | 64359-1 | Blade, Evaporator Fan |
|
- | |||||
| 6 | 420092-900 | Washer, Spring |
|
- | |||||
| 7 | 60608-2 | Orifice, Fan Blade |
|
- | |||||
| 8 | 66044-3 | Tunnel, Air |
|
- | |||||
| 9 | 66045-1 | Pin, Air Tunnel Mtg. |
|
- | |||||
| 10 | 66403-5 | Cover, Evaporator |
|
- | |||||
| 11 | 66590-1 | Bottom, Frz. |
|
- | |||||
| 13 | 60502-3 | Door, Ice Chute |
|
- | |||||
| 13 | 65275-3 | Screw |
|
- | |||||
| 14 | 60505-1 | Hinge Pin |
|
- | |||||
| 15 | 60504-1 | Ice Chute |
|
- | |||||
| 16 | 60599-2 | Shelf, Wire Frz. |
|
- | |||||
| 17 | 68136-22 | Trim |
|
- | |||||
| 18 | 420051-900 | Washer |
|
- | |||||
| 18 | 400018-103 | Screw |
|
- | |||||
| 18 | 60651-1 | Divider |
|
- | |||||
| 18 | 420052-900 | Washer |
|
- | |||||
| 19 | 66146-1 | Latch |
|
- | |||||
| 19 | W11233072 | Screw (Replaces: 400016-1) |
|
Immediately | $ 12.62 | ||||
| 19 | 66900-3 | Shim, Latch |
|
- | |||||
| 20 | 55732-2 | Switch |
|
- | |||||
| 21 | 402015-103 | Screw, Ice Door |
|
- | |||||
| 21 | 65627-1 | Im Encl Front |
|
- | |||||
| 22 | 68131-16 | Trim, Fr Dispenser |
|
- | |||||
| 23 | 60313-1 | Cup, Shelf |
|
- | |||||
| 24 | 65570-1 | Freezer Shelf Cup |
|
- | |||||
| 25 | 65759-6 | Im Duct |
|
- | |||||
| 25 | 400018-103 | Screw |
|
- |
