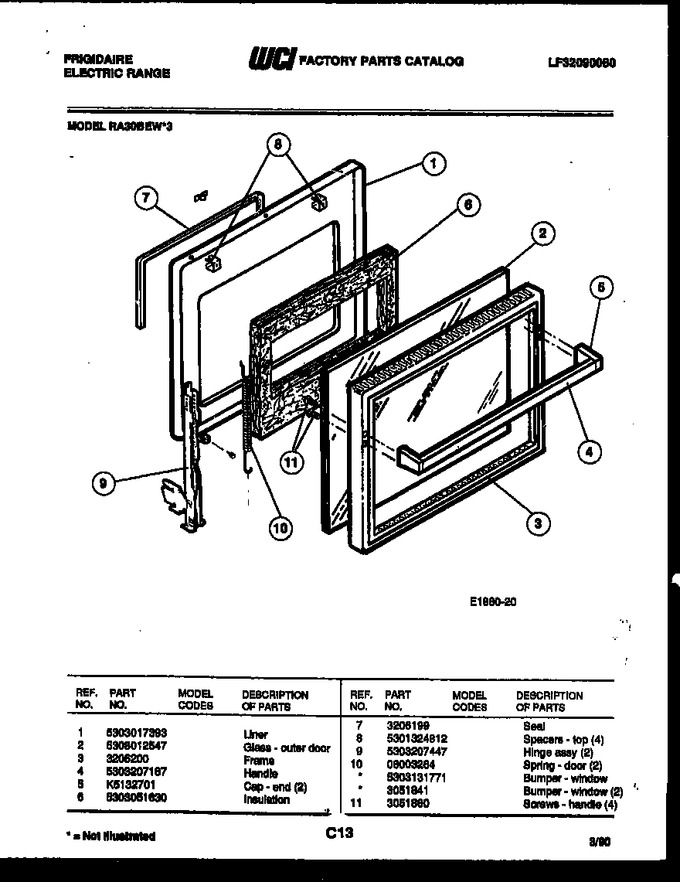

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303017393 | Liner |
|
- | |||||
| 2 | 5308012547 | Glass - Outer Door |
|
- | |||||
| 3 | 3206200 | Frame |
|
- | |||||
| 4 | 5303207187 | Handle |
|
- | |||||
| 5 | K5132701 | Cap - End (2) |
|
- | |||||
| 6 | 5303051630 | Insulation |
|
- | |||||
| 7 | 3206199 | Seal |
|
- | |||||
| 8 | 5301324812 | Spacers - Top (4) |
|
- | |||||
| 9 | 5303207447 | Hinge-assy (2) |
|
- | |||||
| 10 | 08003264 | Spring-oven Door |
|
- | |||||
| 11 | 3051860 | Screws - Handle (4) |
|
- | |||||
| 10A | 5303131771 | Bumper - Window (non-illustrated) |
|
- | |||||
| 10B | 3051841 | Bumper - Window (2) (non-illustrated) |
|
- |
