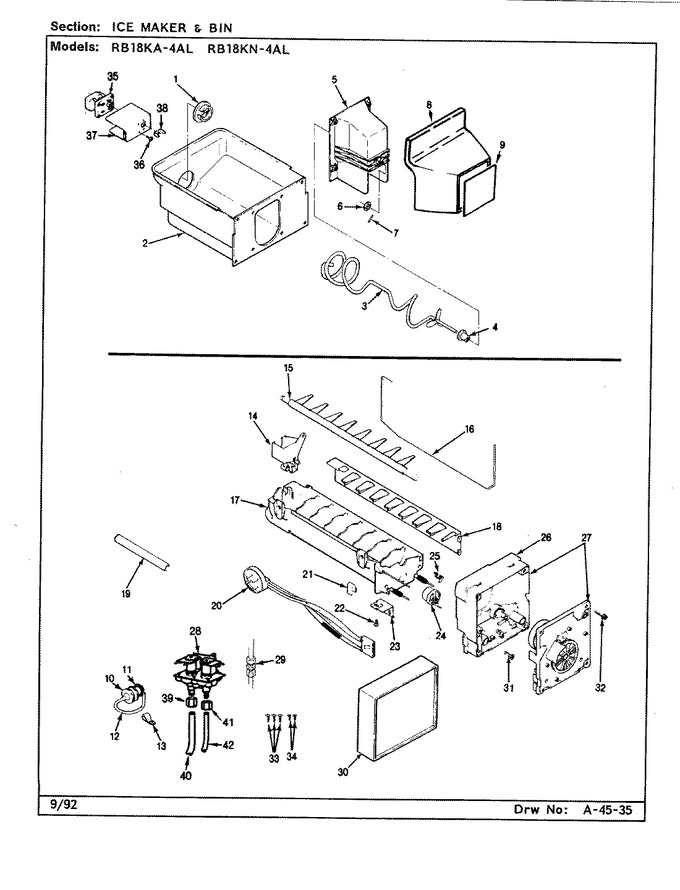

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 63017-1 | Ring, Drive |
|
- | |||||
| 2 | 68580-1 | Bin |
|
- | |||||
| 3 | 67833-1 | Auger |
|
- | |||||
| 4 | 67172-2 | Bearing |
|
- | |||||
| 5 | 67832-1 | Ice Dam |
|
- | |||||
| 6 | 67834-2 | Washer, Thrust |
|
- | |||||
| 7 | 492007-703 | Pin, Cotter |
|
- | |||||
| 8 | 68574-1 | Front, Ice Bin |
|
- | |||||
| 8 | WP1163283 | Screw (Replaces: 405022-103) |
|
$ 6.47 | |||||
| 9 | 68782-5 | Insert, Bin Front |
|
- | |||||
| 10 | 24685-1 | Nut, Inlet Tubing |
|
- | |||||
| 11 | 24685-5 | Washer, Inlet Tubing Nut |
|
- | |||||
| 12 | 60219-1 | Inlet Tubing Assembly |
|
- | |||||
| 13 | W10833902 | Clamp, Tubing (Replaces: 53516-8) |
|
$ 9.89 | |||||
| 13 | W11233072 | Screw (Replaces: 400016-1) |
|
Immediately | $ 12.62 | ||||
| 14 | WP628356 | Inlet, Water (Replaces: 95100-1) |
|
$ 46.07 | |||||
| 15 | WP627843 | Ejector, Ice (Replaces: 95101-1) |
|
$ 75.24 | |||||
| 16 | 68112-1 | Arm, Sensor |
|
- | |||||
| 16 | 67556-1 | Sleeve, Sensor Arm |
|
- | |||||
| 17 | D7824706Q | Mold & Heater Assy. (Replaces: 95098-1) |
|
Immediately | $ 150.62 | ||||
| 18 | WP2182124 | Stripper, Ice (Replaces: 95102-1) |
|
$ 77.45 | |||||
| 19 | W10841140 | Tube, Fill (Replaces: 67666-8) |
|
Immediately | $ 24.92 | ||||
| 20 | 67910-1 | Wire Harness |
|
- | |||||
| 21 | WP628379 | Clamp, Wire Harness (Replaces: 68118-1) |
|
$ 9.51 | |||||
| 22 | WP489128 | Screw, Bracket (Replaces: 95108-1) |
|
$ 9.79 | |||||
| 23 | WP2256087 | Bracket, Module & Heater (Replaces: 95107-1) |
|
$ 83.70 | |||||
| 24 | WP627985 | Thermostat (Replaces: 95092-1) |
|
Immediately | $ 98.26 | ||||
| 24 | 95093-1 | Cement, Alumilastic (4 Oz.) |
|
$ 49.64 | |||||
| 25 | WP2315522 | Retainer, Thermostat (Replaces: 95104-1) |
|
$ 9.95 | |||||
| 26 | WP2195914 | Support, Module Housing (Replaces: 95103-1) |
|
$ 94.11 | |||||
| 27 | D7824706Q | Module, Ice Maker (Replaces: 95109-1) |
|
Immediately | $ 150.62 | ||||
| 28 | 67559-1 | Valve |
|
- | |||||
| 29 | WPW10296793A | Union, Compression (Replaces: 54267-1) |
|
$ 10.93 | |||||
| 30 | WPW10289690 | Cover Ice Maker (Replaces: 68113-1) |
|
Immediately | $ 7.56 | ||||
| 31 | 95105-1 | Screw |
|
- | |||||
| 32 | WP681249 | Screw (Replaces: 95106-1) |
|
Immediately | $ 7.07 | ||||
| 33 | W11772394 | Screw (Replaces: 400021-1) |
|
Immediately | $ 10.94 | ||||
| 34 | 401018-1 | Screw |
|
- | |||||
| 35 | 12001773 | Motor, Auger (Replaces: 65186-1) |
|
$ 312.61 | |||||
| 36 | 67701-1 | Wire Harness |
|
- | |||||
| 36 | W11233072 | Screw (Replaces: 400026-12) |
|
Immediately | $ 12.62 | ||||
| 37 | 68578-1 | Bracket |
|
- | |||||
| 37 | WP488234 | Screw (Replaces: 406026-103) |
|
$ 6.07 | |||||
| 38 | WP63052-2 | Yoke, Ice Dispenser (Replaces: 63052-1) |
|
Immediately | $ 62.02 | ||||
| 39 | 69583-2 | Nut, Compression (5/16``) |
|
- | |||||
| 40 | WPW10426709 | Tubing, Valve To Tank (5/16``) (Replaces: 67187-13) |
|
$ 126.83 | |||||
| 41 | WP627018 | Nut, Compression (1/4``) (Replaces: 69583-1) |
|
$ 9.87 | |||||
| 42 | WPB5705307 | Tubing, Valve To Grommet (Replaces: 67579-7) |
|
$ 11.19 |
