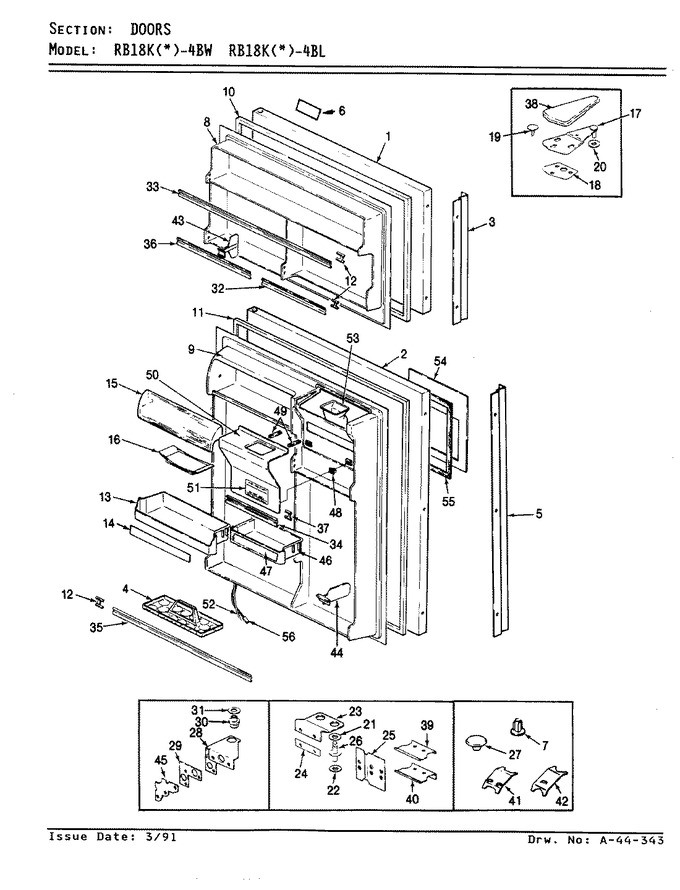

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	68474-9-WW		Panel, Frz. Door (wht)		Appelez-nous	-
2	RA95056-1		Door Insulation Kit		Appelez-nous	-
2	68477-6-WW		Panel, F.f. Door (wht)		Appelez-nous	-
3	68667-5		Handle, Frz. Door		Appelez-nous	-
4	60066-1		Tray, Egg		Appelez-nous	-
5	65275-37		Screw, Handle		Appelez-nous	-
5	68666-4		Handle, F.f. Door		Appelez-nous	-
5	66799-1		Achor, Screw		Appelez-nous	-
6	66982-14		Nameplate (blk)		Appelez-nous	-
7	55782-2		Plug Button (white)		Appelez-nous	-
8	65940-5		Liner, Door		Appelez-nous	-
9	68678-6		Liner, F.f. Door		Appelez-nous	-
9	65275-5		Screw		Appelez-nous	-
10	66199-5		Gasket, Frz. Door		Appelez-nous	-
11	WP70048-3		Gasket, F.f. Door   (Replaces: 66199-6)				$ 283.11
12	WP65245-1		Retainer, Shelf Trim   (Replaces: 65245-1)				$ 9.39
13	60037-36		Shelf, Pick-off		Appelez-nous	-
14	68130-53		Insert		Appelez-nous	-
15	66184-364		Door, Dairy		Appelez-nous	-
16	29936-2		Tray, Butter		Appelez-nous	-
17	53709-20		Hinge, Upper		Appelez-nous	-
18	65031-1		Shim, Upper Hinge		Appelez-nous	-
19	66920-2		Plug Button		Appelez-nous	-
20	54233-1		Washer				$ 7.71
21	67483-1		Washer, Center Hinge (upper)		Appelez-nous	-
22	WP3-24838-048		Screw   (Replaces: 9986-87)				$ 7.00
22	54233-2		Washer		Appelez-nous	-
23	68811-2		Hinge, Center		Appelez-nous	-
24	68812-1		Shim, Center Hinge		Appelez-nous	-
25	65275-23		Screw		Appelez-nous	-
25	68377-1		Tapping Plate, Center Hinge		Appelez-nous	-
26	67322-1		Pin, Center Hinge		Appelez-nous	-
27	67634-2		Plug Button, Hinge Cup (wht)		Appelez-nous	-
28	67714-3		Hinge, Lower		Appelez-nous	-
28	403100-1		Screw		Appelez-nous	-
29	60626-1		Shim, Lower Hinge		Appelez-nous	-
30	68789-1		Hinge Pin		Appelez-nous	-
31	67483-3		Washer, Door Spacer			Immediately	$ 45.86
32	WP61003045		Trim, Shelf   (Replaces: 68375-10)				$ 129.55
33	WP61003045		Trim, Shelf   (Replaces: 68375-17)				$ 129.55
34	68376-13		Trim, Shelf		Appelez-nous	-
35	WP61003045		Trim, Fresh Food Shelf   (Replaces: 68375-12)				$ 129.55
36	WP61003045		Trim   (Replaces: 68375-9)				$ 129.55
37	65246-1		Retainer				$ 5.04
38	65003-6		Cover, Upper Hinge (wht)		Appelez-nous	-
39	60030-1		Door Stop		Appelez-nous	-
40	9986-122		Screw		Appelez-nous	-
40	60419-11		Door Stop, Refrig		Appelez-nous	-
41	60123-2		Clip, Stop Screw		Appelez-nous	-
42	56209-3		Clip, Stop Screw		Appelez-nous	-
43	64097-11		Organizer, Shelf		Appelez-nous	-
44	66645-6		Organizer Package		Appelez-nous	-
45	65790-3		Tapping Plate		Appelez-nous	-
45	403100-1		Screw		Appelez-nous	-
46	60037-35		Door Shelf		Appelez-nous	-
47	68130-52		Insert		Appelez-nous	-
48	65184-3		Latch		Appelez-nous	-
49	52077-26		Seal		Appelez-nous	-
50	68781-1		Insulation, Fountain Back		Appelez-nous	-
50	68700-1		Panel, Access		Appelez-nous	-
50	68779-1		Insulation, Fountain Perimeter		Appelez-nous	-
51	68785-6		Insert, Food Storage		Appelez-nous	-
52	WPW10426709		Tubing   (Replaces: 67187-11)				$ 126.83
53	68571-1		Chute, Ice		Appelez-nous	-
54	68594-1		Escutcheon		Appelez-nous	-
55	95121-1		Tape, Escutcheon		Appelez-nous	-
56	68536-2		Wire Harness, Door To Main		Appelez-nous	-
56	68907-1		Wire Harness		Appelez-nous	-
