SELECT A DIAGRAM

01 - Freezer Compartment


02 - Freezer Inner Door


03 - Freezer Outer Door


04 - Fresh Food Compartment


05 - Fresh Food Inner Door


06 - Fresh Food Outer Door


07 - Optional Ice Maker Kit (ice)


08 - Shelves & Accessories


09 - Unit Compartment & System


10 - Wiring Information

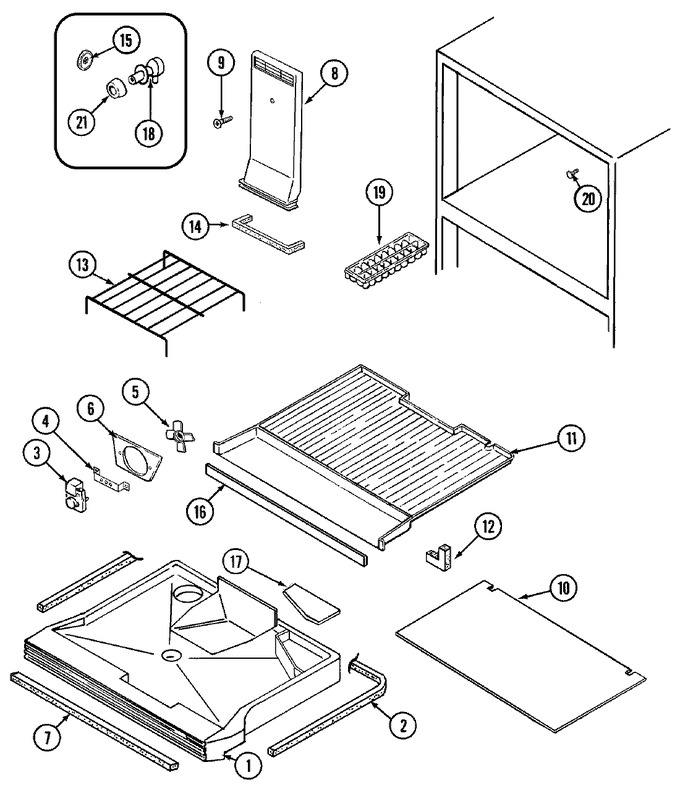

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	69403-1		Tray, Styrofoam Mullion	10	Appelez-nous	-
2	69414-2		Seal, Mullion Tray	10	Appelez-nous	-
3	69106-2		Motor, Evaporator Fan	10			$ 95.45
3	406062-1		Screw	10	Appelez-nous	-
4	64856-1		Bracket, Fan Motor	10	Appelez-nous	-
4	W11233072		Screw   (Replaces: 400015-36)	10		Immediately	$ 12.62
5	69107-1		Blade, Evaporator Fan	10	Appelez-nous	-
6	60608-2		Orifice, Fan Blade	10	Appelez-nous	-
7	69562-2		Seal, Mullion Tray (front)	10	Appelez-nous	-
8	70208-3		Tunnel, Air	10	Appelez-nous	-
9	W11233072		Screw   (Replaces: 400015-31)	10		Immediately	$ 12.62
10	66403-2		Cover, Evaporator	10	Appelez-nous	-
11	69397-1		Bottom, Frz.	10	Appelez-nous	-
12	69563-1		Seal, Frost Chest Bottom	10	Appelez-nous	-
13	68259-9		Trivet	10	Appelez-nous	-
14	66325-37		Seal, Air Tunnel	10	Appelez-nous	-
15	68187-1		Cap, Connector	10	Appelez-nous	-
16	69413-2		Magnet	10	Appelez-nous	-
17	61664805		Cover, Plenum	10	Appelez-nous	-
18	68307-1		Grommet, Water Entry	10	Appelez-nous	-
19	WP841180A		Tray, Ice   (Replaces: 59281-2)	10		Immediately	$ 41.00
20	67557-2		Plug Button, Air Duct & I/m	10	Appelez-nous	-
21	68387-1		Cap, Grommet	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
