SELECT A DIAGRAM

01 - Freezer Compartment


02 - Freezer Door


03 - Fresh Food Compartment

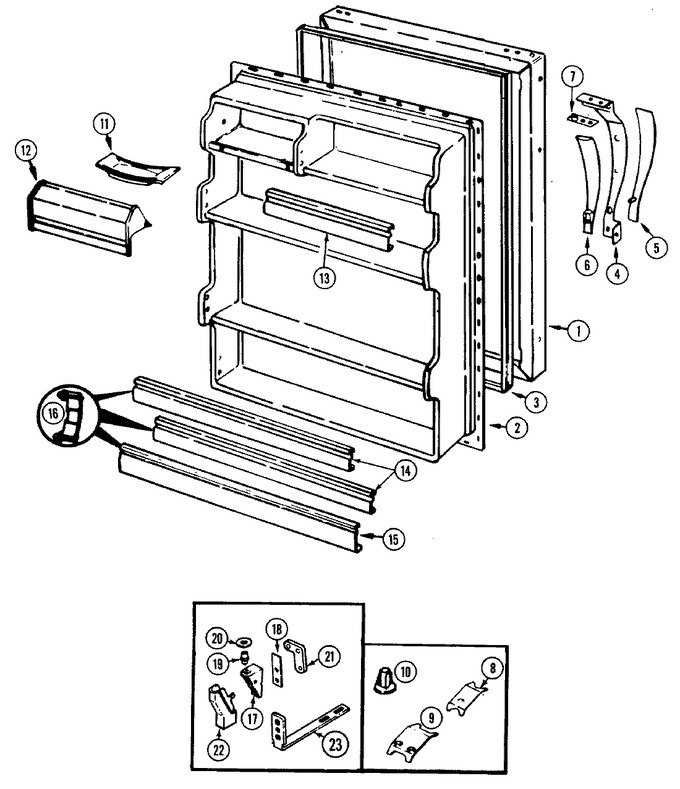

04 - Fresh Food Door


05 - Optional Ice Maker Kit


06 - Shelves & Accessories


07 - Unit Compartment & System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	72349-2-AM		Panel, F.f. Door (alm)	11	Appelez-nous	-
2	65275-5		Screw	11	Appelez-nous	-
2	69454-1		Liner, F.f. Door	11	Appelez-nous	-
3	70025-6		Gasket, F.f. Door (wht)	11			$ 155.30
4	65275-57		Screw	11	Appelez-nous	-
4	69300-2		Handle, Door	11	Appelez-nous	-
5	68959-2		Insert	11	Appelez-nous	-
6	60445-4		Insert, Handle (back)	11	Appelez-nous	-
6	65275-53		Screw	11	Appelez-nous	-
7	69301-1		Shim, Handle	11	Appelez-nous	-
8	69257-1		Clip, Handle	11	Appelez-nous	-
9	60123-2		Clip, Stop Screw	11	Appelez-nous	-
10	55782-10		Plug Button, Hdle & Door Stop	11	Appelez-nous	-
10	55782-6		Plug Button (almond)	11	Appelez-nous	-
11	29936-2		Tray, Butter	11	Appelez-nous	-
12	69058-23		Door, Dairy	11	Appelez-nous	-
13	WP61003045		Trim, Door Shelf   (Replaces: 65151-361)	11			$ 129.55
14	WP61003045		Trim, Door Shelf   (Replaces: 65151-364)	11			$ 129.55
15	WP61003045		Trim, Door Shelf   (Replaces: 65151-336)	11			$ 129.55
15	WP61003045		Trim, Door Shelf   (Replaces: 65151-360)	11			$ 129.55
16	WP65245-1		Retainer, Shelf Trim   (Replaces: 65245-1)	11			$ 9.39
17	69516-2		Hinge, Lower (blk)	11	Appelez-nous	-
18	69031-1		Shim	11	Appelez-nous	-
19	68977-1		Pin, Hinge	11	Appelez-nous	-
20	67483-3		Washer, Lower Hinge   (Replaces: 67483-2)	11		Immediately	$ 45.86
21	67874-1		Tapping Plate, Lower Hinge	11	Appelez-nous	-
21	65275-59		Screw	11	Appelez-nous	-
22	68978-1		Cover, Lower Hinge (blk)	11	Appelez-nous	-
23	69511-1		Tapping Plate, Lower Hinge	11	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
