01 - Freezer Compartment


02 - Freezer Door


03 - Fresh Food Compartment


04 - Fresh Food Door


05 - Optional Ice Maker Kit


06 - Shelves & Accessories


07 - Unit Compartment & System

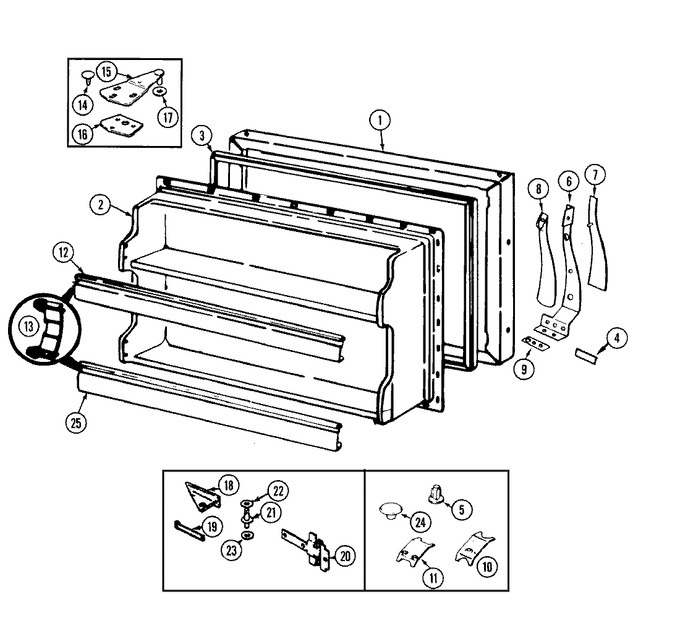

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	72345-1-WW		Panel, Frz. Door (wht)	11	Appelez-nous	-
2	65275-5		Screw	11	Appelez-nous	-
2	69470-1		Liner, Frz. Door	11	Appelez-nous	-
3	70025-5		Gasket, Frz. Door (wht)	11			$ 142.50
4	66982-31		Nameplate (wht)	11	Appelez-nous	-
5	55782-10		Plug Button, Hdle & Door Stop	11	Appelez-nous	-
6	65275-57		Screw	11	Appelez-nous	-
6	69300-1		Handle, Door	11	Appelez-nous	-
7	68959-1		Insert	11	Appelez-nous	-
8	60445-3		Insert, Handle (back)	11	Appelez-nous	-
9	69301-1		Shim, Handle	11	Appelez-nous	-
10	56209-3		Clip, Stop Screw	11	Appelez-nous	-
11	69257-1		Clip, Handle	11	Appelez-nous	-
12	WP61003045		Trim, Door Shelf   (Replaces: 65151-123)	11			$ 129.55
13	WP65245-1		Retainer, Shelf Trim   (Replaces: 65245-1)	11			$ 9.39
14	56144-13		Plug Button, Upper Hinge (wht)	11	Appelez-nous	-
15	WP3-24838-048		Screw   (Replaces: 65275-52)	11			$ 7.00
15	53709-20		Hinge, Upper	11	Appelez-nous	-
16	65031-1		Shim, Upper Hinge	11	Appelez-nous	-
17	54233-1		Washer	11			$ 7.71
18	65275-55		Screw	11	Appelez-nous	-
18	68811-2		Hinge, Center	11	Appelez-nous	-
19	68812-1		Shim, Center Hinge	11	Appelez-nous	-
20	60622-1		Tapping Plate	11	Appelez-nous	-
21	67322-1		Pin, Center Hinge	11	Appelez-nous	-
22	67483-1		Washer, Center Hinge (upper)	11	Appelez-nous	-
23	54233-2		Washer	11	Appelez-nous	-
24	67634-2		Plug Button, Hinge Cup (wht)	11	Appelez-nous	-
25	WP61003045		Trim, Door Shelf   (Replaces: 65151-134)	11			$ 129.55
