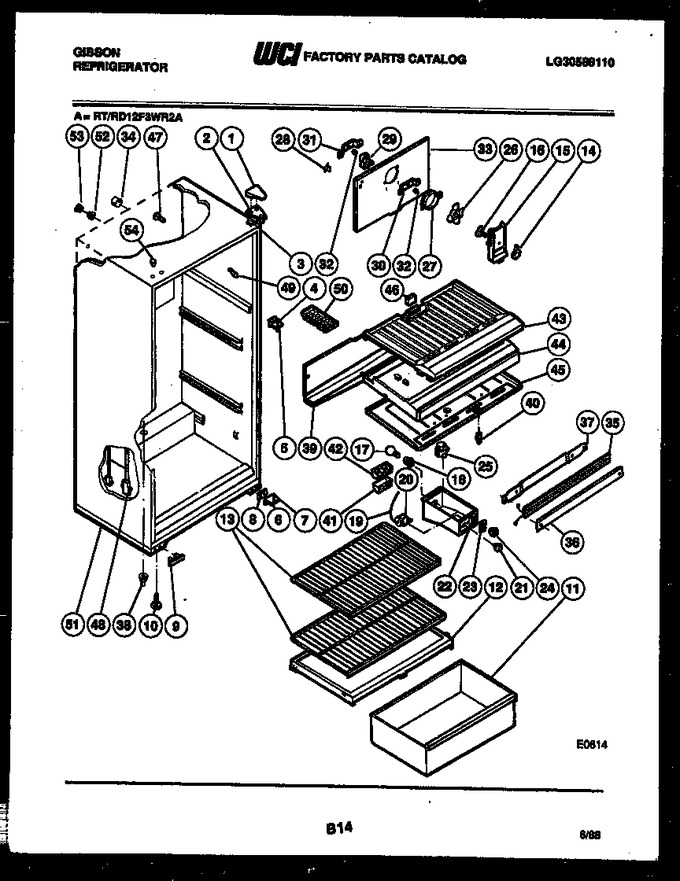

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 45 | G174713 | Refrigerator Top |
|
- | |||||
| 46 | G168866 | Pad-adhesive |
|
- | |||||
| 47 | G163669 | Support, Coil Cover (2) |
|
- | |||||
| 48 | G174917 | Wiring Harness-divider |
|
- | |||||
| 49 | G162364-11 | Corner Trim-almond |
|
- | |||||
| 49 | G162364-01 | Corner Trim-white |
|
- | |||||
| 49 | G162364-08 | Corner Trim-avocado |
|
- | |||||
| 49 | G162364-09 | Corner Trim-wheat |
|
- | |||||
| 49 | G162364-10 | Corner Trim-coffee |
|
- | |||||
| 50 | G156376-13 | Ice Tray (2) |
|
- | |||||
| 51 | G161998-01 | Cabinet Base |
|
- | |||||
| 52 | G174733 | Ferrule, Inner |
|
- | |||||
| 53 | G174734 | Ferrule Outer |
|
- | |||||
| 54 | G174747-11 | Button-plug, Almond |
|
- | |||||
| 54 | G174747-01 | Button-plug-white |
|
- | |||||
| 54 | G174747-08 | Button, Plug, Avocado |
|
- | |||||
| 54 | G174747-09 | Plug-button, Wheat |
|
- | |||||
| 54 | G174747-10 | Plug-button, Coffee |
|
- | |||||
| 45A | G162673 | Screw-top Mounting (3) (non-illustrated) |
|
- |
