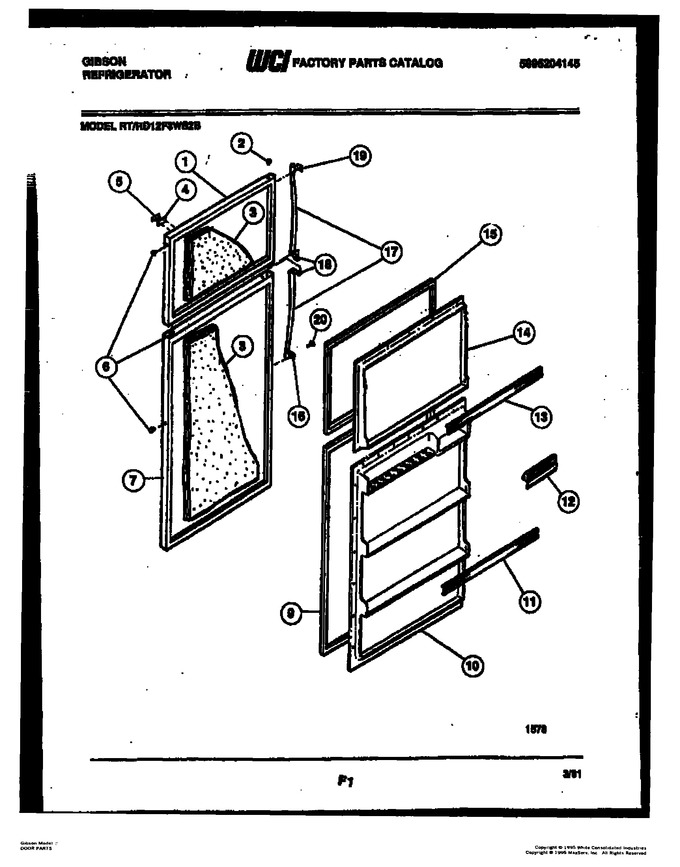

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | G186186-08 | Freezer Door-avocado |
|
- | |||||
| 1 | 5318618611 | Freezer Door-almond |
|
- | |||||
| 1 | G186186-10 | Freezer Door-coffee |
|
- | |||||
| 1 | 5318618609 | Freezer Door-wheat |
|
- | |||||
| 1 | 5300186186 | Freezer Door-white |
|
- | |||||
| 2 | 5303001308 | Plug-almond |
|
- | |||||
| 2 | 5303001657 | Plug-coffee |
|
- | |||||
| 2 | 5308000175 | Plug-avocado |
|
- | |||||
| 2 | 5308000176 | Plug-wheat |
|
- | |||||
| 2 | 5308000134 | Plug-white |
|
$ 5.62 | |||||
| 3 | 5303007739 | Insulation, Bulk |
|
- | |||||
| 4 | 5317511702 | Frame - Nameplate |
|
- | |||||
| 5 | 5318837802 | Label-nameplate |
|
- | |||||
| 6 | 5308000180 | Plug - Wheat |
|
- | |||||
| 6 | 5308000181 | Plug - Almond |
|
- | |||||
| 6 | 5308000178 | Plug - Coffee |
|
- | |||||
| 6 | 240494001 | Plug - White (Replaces: 5308000090) |
|
Immediately | $ 18.20 | ||||
| 6 | 5308000179 | Plug - Avocado |
|
- | |||||
| 7 | 5318618411 | Refr Door-almond |
|
- | |||||
| 7 | G186184-08 | Refr Door-avocado |
|
- | |||||
| 7 | G186184-10 | Refr Door-coffee |
|
- | |||||
| 7 | 5300186184 | Refr Door-white |
|
- | |||||
| 7 | G186184-09 | Refr Door-wheat |
|
- | |||||
| 9 | 5308016627 | Gasket-refr Door |
|
- | |||||
| 10 | G165701-02 | Inner Panel-refr |
|
- | |||||
| 11 | 5316469848 | Rack-refr Door (2) |
|
- | |||||
| 12 | G163222-36 | Dairy Door |
|
- | |||||
| 13 | 5316469836 | Rack-frzr Door |
|
- | |||||
| 14 | G165702-02 | Inner Panel-frzr |
|
- | |||||
| 15 | 5308016628 | Gasket-frzr Door |
|
- | |||||
| 16 | 5303001295 | Handle - End Bottom |
|
- | |||||
| 17 | 5317049526 | Grip - Handle (2) |
|
- | |||||
| 18 | 5303001296 | Handle End, (2) |
|
$ 86.36 | |||||
| 19 | 5303001297 | Handle End Top |
|
$ 70.22 | |||||
| 20 | 5308011745 | Screw |
|
$ 10.38 | |||||
| 10A | 5308002748 | Screw |
|
- | |||||
| 14A | 5308002748 | Screw |
|
- | |||||
| 1A | 5308012007 | Bearing-hinge (4) (non-illustrated) |
|
- | |||||
| 4A | 5315340712 | Tape-frame Mtg (non-illustrated) |
|
- | |||||
| 7A | 5308012007 | Bearing-hinge (4) (non-illustrated) |
|
- |
