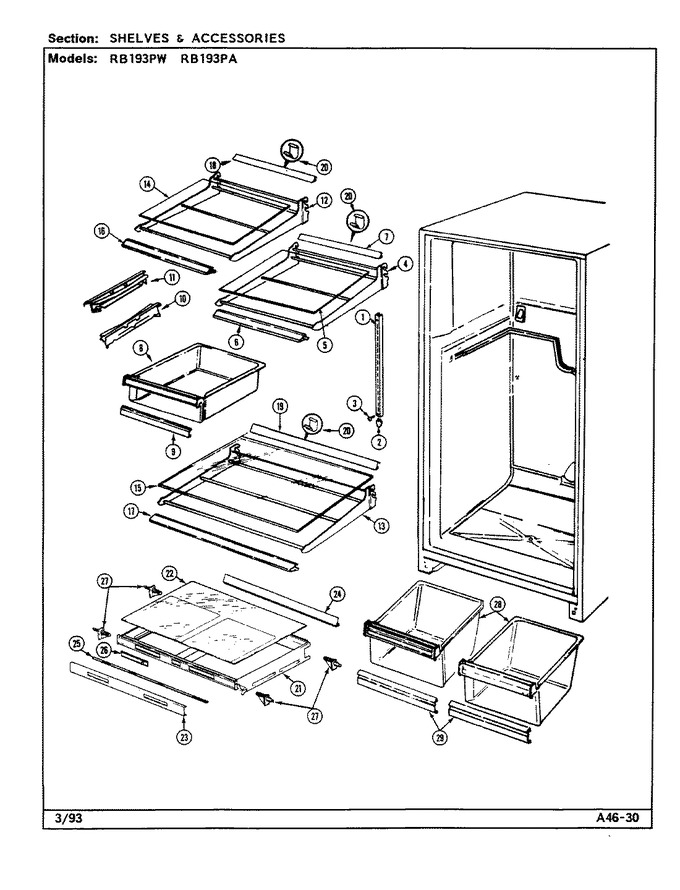

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	60096-8		Rail, Shelf Support (rt)	11	Appelez-nous	-
1	60096-9		Rail, Shelf Support (center)	11	Appelez-nous	-
1	60096-7		Rail, Shelf Support (lt)	11	Appelez-nous	-
2	60340-1		End Cap, Center Rail	11	Appelez-nous	-
3	400037-28		Screw	11	Appelez-nous	-
4	60570-36		Frame, Shelf	11	Appelez-nous	-
5	68139-21		Glass, Meat Shelf	11	Appelez-nous	-
6	68136-45		Shelf Trim	11	Appelez-nous	-
7	65276-4		Trim, Meat Shelf (rear)	11	Appelez-nous	-
8	66516-6		Pan, Meat	11	Appelez-nous	-
9	60132-121		Trim, Crisper	11	Appelez-nous	-
10	66814-1		Rail, Meat Pan (rt)	11	Appelez-nous	-
11	66813-1		Rail, Meat Pan (lt)	11	Appelez-nous	-
12	60570-36		Frame, Shelf	11	Appelez-nous	-
13	60570-45		Frame, Shelf	11	Appelez-nous	-
14	68139-15		Glass, Split Shelf	11	Appelez-nous	-
15	68139-29		Glass, Full Shelf	11	Appelez-nous	-
16	68136-45		Shelf Trim	11	Appelez-nous	-
17	68136-52		Trim, Shelf	11	Appelez-nous	-
18	65276-3		Trim	11	Appelez-nous	-
19	65276-21		Trim, Shelf (full Rear)	11	Appelez-nous	-
20	66333-1		Clip, Shelf Trim	11	Appelez-nous	-
21	68735-1		Shelf, Crisper	11	Appelez-nous	-
22	68743-16		Glass, Shelf	11	Appelez-nous	-
23	68744-12		Trim, Shelf	11	Appelez-nous	-
24	68798-1		Trim, Crisper Shelf (rear)	11	Appelez-nous	-
25	68797-1		Seal	11	Appelez-nous	-
26	68742-1		Slide, Control	11	Appelez-nous	-
27	68836-1		Stud, Crisper Support	11	Appelez-nous	-
28	68222-550		Pan, Crisper	11	Appelez-nous	-
28	68222-551		Pan, Crisper	11	Appelez-nous	-
29	60132-130		Trim, Crisper	11	Appelez-nous	-
