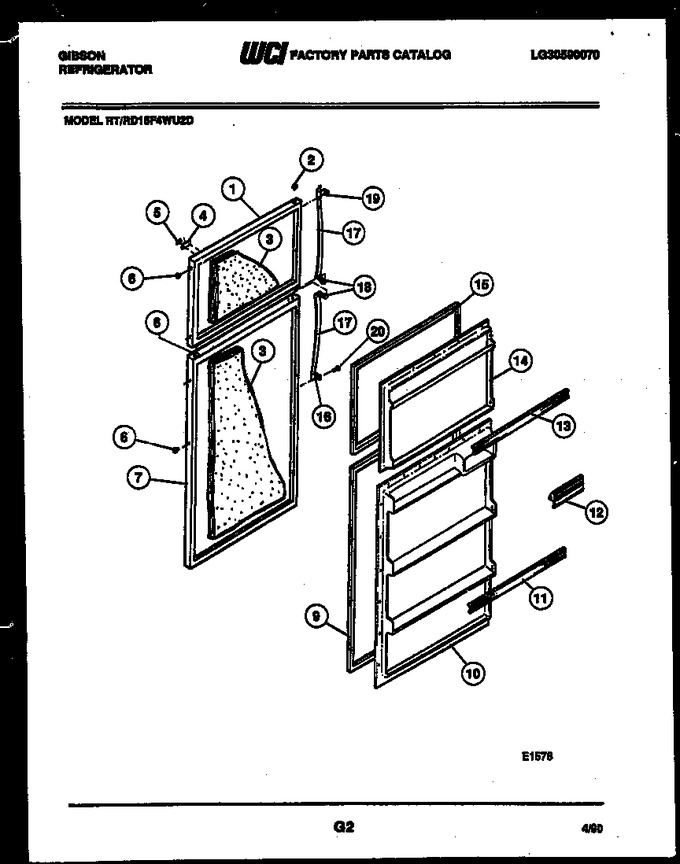

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5317142708 | Freezer Door-avocado |
|
- | |||||
| 1 | 5317142709 | Freezer Door-wheat |
|
- | |||||
| 1 | 5317142710 | Freezer Door-coffee |
|
- | |||||
| 1 | 5317142711 | Freezer Door-almond |
|
- | |||||
| 1 | 5300171427 | Freezer Door-white |
|
- | |||||
| 2 | 5308000176 | Plug-wheat |
|
- | |||||
| 2 | 5303001657 | Plug-coffee |
|
- | |||||
| 2 | 5303001308 | Plug-almond |
|
- | |||||
| 2 | 5308000134 | Plug-white |
|
$ 5.62 | |||||
| 2 | 5308000175 | Plug-avocado |
|
- | |||||
| 3 | 5303007739 | Insulation, Bulk |
|
- | |||||
| 4 | 5317511702 | Frame - Nameplate |
|
- | |||||
| 5 | 5318837802 | Label-nameplate |
|
- | |||||
| 6 | 5308000179 | Plug - Avocado |
|
- | |||||
| 6 | 5308000180 | Plug - Wheat |
|
- | |||||
| 6 | 240494001 | Plug - White (Replaces: 5308000090) |
|
Immediately | $ 18.20 | ||||
| 6 | 5308000178 | Plug - Coffee |
|
- | |||||
| 6 | 5308000181 | Plug - Almond |
|
- | |||||
| 7 | 5317142609 | Refr Door-wheat |
|
- | |||||
| 7 | 5317142610 | Refr Door-coffee |
|
- | |||||
| 7 | 5300171426 | Refr Door-white |
|
- | |||||
| 7 | 5317142611 | Refr Door-almond |
|
- | |||||
| 7 | 5317142608 | Refr Door-avocado |
|
- | |||||
| 9 | 5303001398 | Gasket-refr Door |
|
- | |||||
| 10 | G189034-02 | Inner Panel-refr |
|
- | |||||
| 11 | 5316469848 | Rack-refr Door (2) |
|
- | |||||
| 12 | 3015679 | Dairy Door |
|
- | |||||
| 13 | 5316469847 | Rack-frzr Door |
|
- | |||||
| 14 | G188754-02 | Inner Panel-frzr |
|
- | |||||
| 15 | 5303001399 | Gasket - Frzr Door |
|
- | |||||
| 16 | 5303001295 | Handle - End Bottom |
|
- | |||||
| 17 | 5303200545 | Grip - Handle (2) |
|
- | |||||
| 18 | 5303001296 | Handle End, (2) |
|
$ 86.36 | |||||
| 19 | 5303001297 | Handle End Top |
|
$ 70.22 | |||||
| 20 | 5308011745 | Screw |
|
$ 10.38 | |||||
| 10A | 218843801 | Screw (Replaces: 5303001001) |
|
$ 14.41 | |||||
| 14A | 218843801 | Screw (Replaces: 5303001001) |
|
$ 14.41 | |||||
| 1A | 5308012007 | Bearing-hinge (4) (non-illustrated) |
|
- | |||||
| 4A | 5315340760 | Tape - Frame Mtg (non-illustrated) |
|
- | |||||
| 7A | 5308012007 | Bearing-hinge (4) (non-illustrated) |
|
- |
