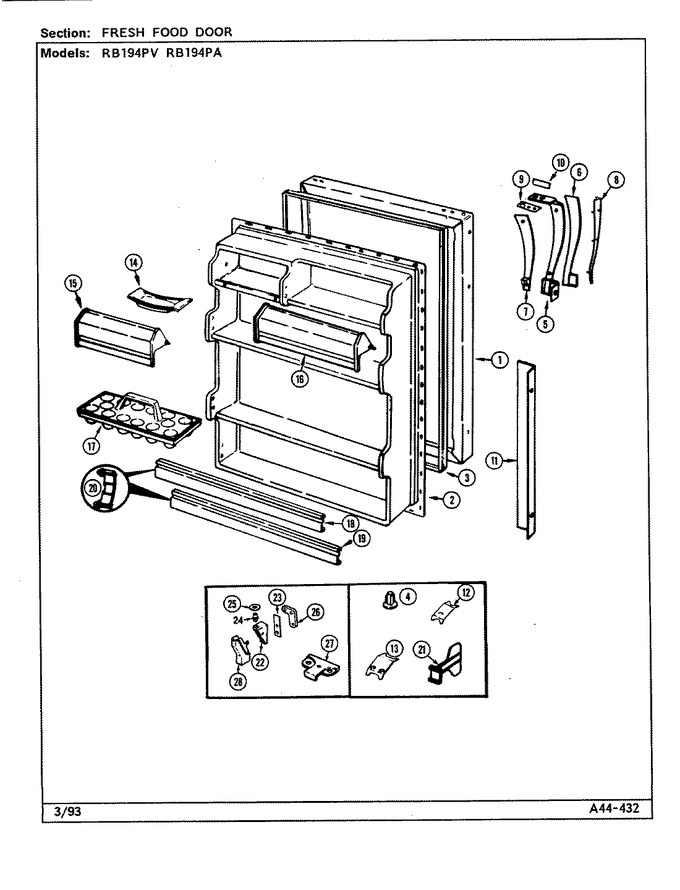

RB194PA (BOM: DE76A) | TransGlobal : Appliance Model Lookup

Diagram #	Part Number	Description	Availability	Ships	Price
1	72349-1-AM	Panel, F.f. Door (alm)	Appelez-nous	-
2	69453-1	Liner, F.f. Door	Appelez-nous	-
2	65275-5	Screw	Appelez-nous	-
3	70025-6	Gasket, F.f. Door (wht)			$ 155.30
4	55782-6	Plug Button (almond)	Appelez-nous	-
5	69300-4	Handle, Door----na	Appelez-nous	-
5	65275-57	Screw	Appelez-nous	-
6	68016-6	Handle Insert, Front	Appelez-nous	-
7	60445-4	Insert, Handle (back)	Appelez-nous	-
8	65275-53	Screw	Appelez-nous	-
8	68017-3	Insert, Vinyl Clad	Appelez-nous	-
9	69301-1	Shim, Handle	Appelez-nous	-
10	60603-20	Insert Nameplate	Appelez-nous	-
11	60453-32	Trim, F.f. Door (alm)	Appelez-nous	-
12	56209-3	Clip, Stop Screw	Appelez-nous	-
13	60123-2	Clip, Stop Screw	Appelez-nous	-
14	29936-2	Tray, Butter	Appelez-nous	-
15	66184-364	Door, Dairy	Appelez-nous	-
16	66184-362	Door, Dairy	Appelez-nous	-
17	60066-1	Tray, Egg	Appelez-nous	-
18	WP61003045	Trim, Door Shelf (Replaces: 65151-363)			$ 129.55
18	WP61003045	Trim, Door Shelf (Replaces: 65151-362)			$ 129.55
19	WP61003045	Trim, Fresh Food Shelf (Replaces: 68375-12)			$ 129.55
20	WP65245-1	Retainer, Shelf Trim (Replaces: 65245-1)			$ 9.39
21	64097-11	Organizer, Shelf	Appelez-nous	-
22	69516-2	Hinge, Lower (blk)	Appelez-nous	-
22	65275-51	Screw, Lower Hinge	Appelez-nous	-
23	69510-1	Shim, Lower Hinge	Appelez-nous	-
24	69845-1	Pin, Lower Hinge			$ 44.55
25	67483-3	Washer, Lower Hinge (Replaces: 67483-2)		Immediately	$ 45.86
26	65275-59	Screw	Appelez-nous	-
26	69511-1	Tapping Plate, Lower Hinge	Appelez-nous	-
27	65275-48	Screw	Appelez-nous	-
27	69256-2	Stop, Door	Appelez-nous	-
28	69794-1	Retainer, Bottle	Appelez-nous	-
28	68978-1	Cover, Lower Hinge (blk)	Appelez-nous	-
