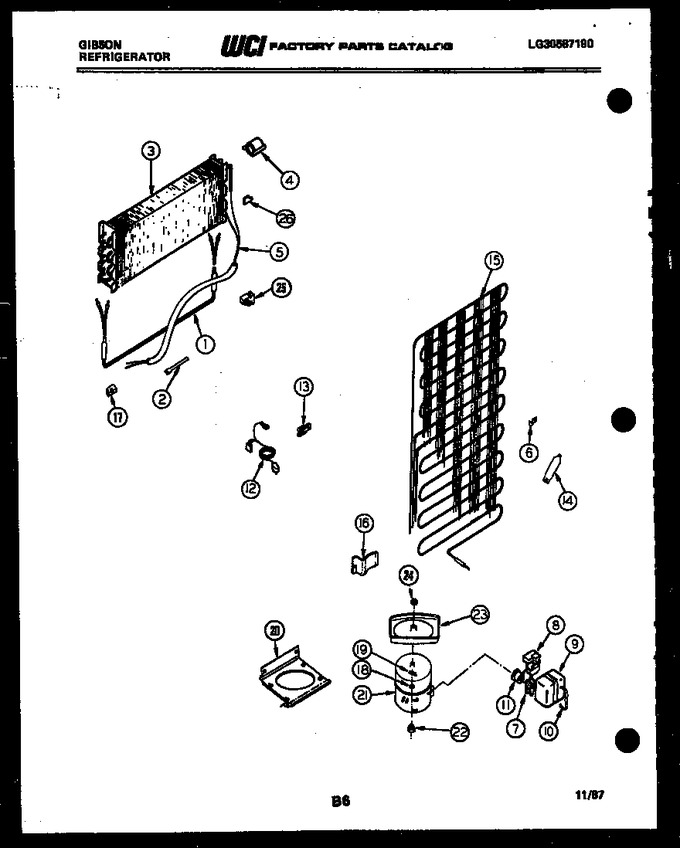

04 - System And Automatic Defrost Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	G176807-01		Heater, Defrost		Appelez-nous	-
2	G165546		Strap, Heater (2)		Appelez-nous	-
3	G176909		Evaporator		Appelez-nous	-
4	G162690-01		Thermos-defrost		Appelez-nous	-
5	G177531		Heat Exchanger		Appelez-nous	-
6	G161655		Clamp-tube		Appelez-nous	-
7	G188957		Clip-overload		Appelez-nous	-
8	G182225-03		Relay		Appelez-nous	-
9	G166056		Cover, Terminal		Appelez-nous	-
10	G166057		Strap, Bale		Appelez-nous	-
11	G176002		Overload		Appelez-nous	-
12	G162549-01		Cord, Service		Appelez-nous	-
13	G27669		Clamp-cable (3)		Appelez-nous	-
14	G186717		Drier		Appelez-nous	-
15	G178225		Condenser		Appelez-nous	-
16	G164637		Brkt-cond. Mtg (4)		Appelez-nous	-
17	G188375		Block-evap Lh		Appelez-nous	-
18	G164634		Washr-compr Mtg (4)		Appelez-nous	-
19	G163204		Clip-compr Mtg (4)		Appelez-nous	-
20	G184599		Plate Comp. Mtg		Appelez-nous	-
21	G175410		Compressor		Appelez-nous	-
22	G177617		Grom-compr Mtg (4)		Appelez-nous	-
23	G184715		Pan, Defrost		Appelez-nous	-
24	G164958		Nut, Lock		Appelez-nous	-
25	G185299		Block Evap R.h.		Appelez-nous	-
26	G185276		Plug Evap, Insul R.h.		Appelez-nous	-
*56277	G189377		Hot Tube Repair Kit		Appelez-nous	-
14A	G162585		Screw		Appelez-nous	-
14B	G164820		Washer, No. 10		Appelez-nous	-
