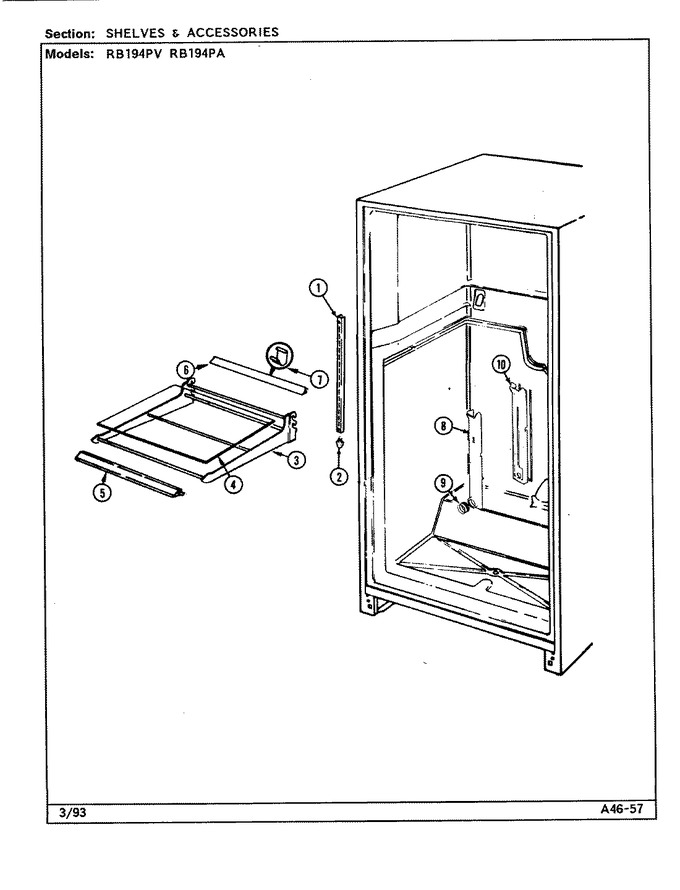

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 68238-3 | Rail, Cantilever Shelf |
|
- | |||||
| 1 | 68238-2 | Rail, Cantilever Shelf |
|
- | |||||
| 1 | 68238-1 | Rail, Cantilever Shelf |
|
- | |||||
| 1 | 400037-28 | Screw |
|
- | |||||
| 2 | 60340-1 | End Cap, Center Rail |
|
- | |||||
| 3 | 60570-36 | Frame, Shelf |
|
- | |||||
| 4 | 68139-15 | Glass, Split Shelf |
|
- | |||||
| 5 | 68136-21 | Trim |
|
- | |||||
| 6 | 65276-4 | Trim, Meat Shelf (rear) |
|
- | |||||
| 7 | 66333-2 | Clip |
|
- | |||||
| 8 | 69578-1 | Tunnel, Air |
|
- | |||||
| 9 | 68282-1 | Bellows, Air Tunnel |
|
- | |||||
| 10 | W11233072 | Screw (Replaces: 400015-31) |
|
Immediately | $ 12.62 | ||||
| 10 | 68289-2 | Insulation, Air Tunnel |
|
- |
