Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 DA61-00378A Hinge-upp,assy Special Order $ 40.73

2 DA97-02376A Assy Hinge Mid;w2-pjt,t4,-,-,- Special Order $ 46.40

3 Y00000000 See Note Part No. Da67-00546g (vq Model) Currently Not Available. Appelez-nous -
4 DA61-00361A Hinge-upp Special Order $ 35.86

5 DA63-50145A Shim-hinge Upp Special Order $ 2.38

6 DA61-10142E Hinge-mid;w2-pjt,shp1,t4,-,-,- Special Order $ 53.69

7 DA63-50139C Shim Hinge-mid Special Order $ 2.50

8 DA71-40135A Stopper (mid) Special Order $ 10.60

9 Y00000000 See Note Part Currently Not Available. Appelez-nous -
10 DA61-10145D Hinge Low Special Order $ 16.09


    View Diagram in Separate Window     Print Icon   Print Part List

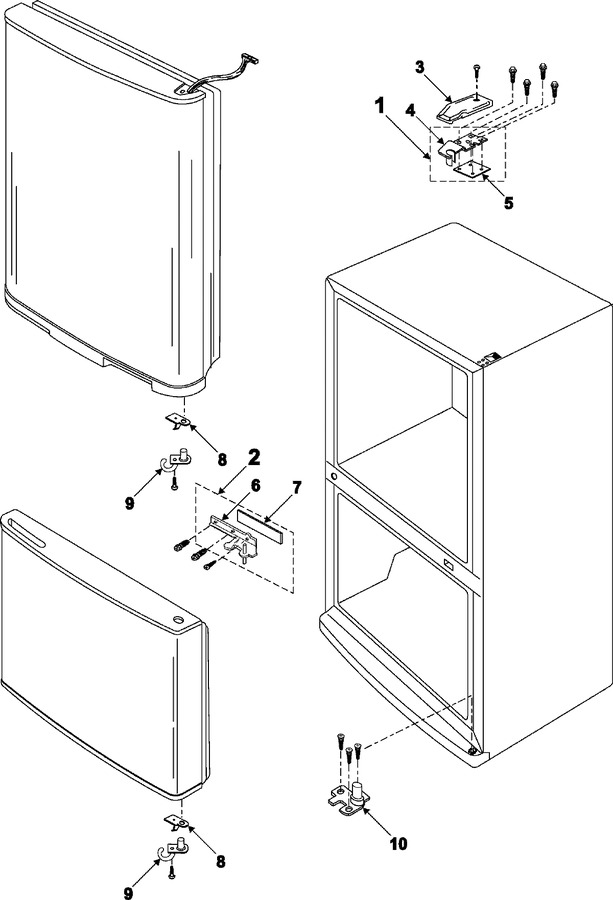

Diagram for RB1955VQ
