02 - Door Parts
03 - Cabinet Parts
04 - Shelves And Supports
05 - System And Automatic Defrost Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

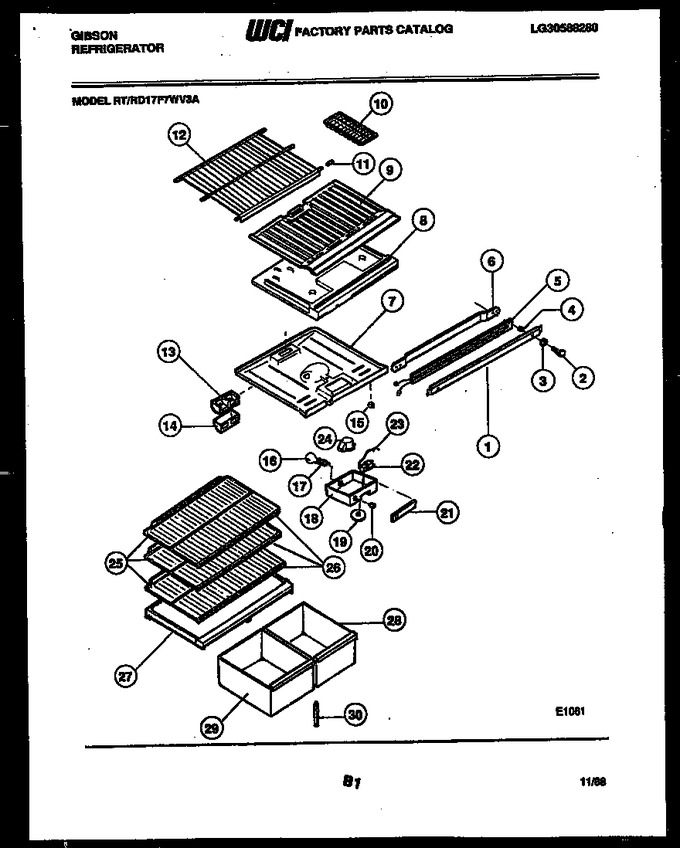

| 1 | 3916135 | Mullion-avocado |
|
- | |||||
| 1 | 3916132 | Mullion, Wheat |
|
- | |||||
| 1 | 3916133 | Mullion, Coffee |
|
- | |||||
| 1 | 3916134 | Mullion-almond |
|
- | |||||
| 1 | 3200465 | Mullion-white |
|
- | |||||
| 2 | G183103 | Screw-mullion (4) |
|
- | |||||
| 3 | G166847 | Washer-no. 10 Steel (2) |
|
- | |||||
| 4 | 3200464 | Spacer-mullion (2) |
|
- | |||||
| 5 | G177255 | Heater, Mullion |
|
- | |||||
| 6 | G166709 | Strap, Mullion Mounting |
|
- | |||||
| 7 | 3016378 | Top Panel-refrigerator |
|
- | |||||
| 8 | G176774 | Divider-styrofoam |
|
- | |||||
| 9 | G490022-01 | Bottom Panel-freezer |
|
- | |||||
| 10 | G156376-13 | Ice Tray (2) |
|
- | |||||
| 11 | G166495-01 | End Cap-shelf (2) |
|
- | |||||
| 12 | G184572-03 | Shelf-freezer |
|
- | |||||
| 13 | G162675 | Air Deflector |
|
- | |||||
| 14 | G162178 | Cover, Deflector |
|
- | |||||
| 15 | G187200 | Light Switch |
|
- | |||||
| 16 | G25806 | Light Bulb |
|
- | |||||
| 17 | G168302 | Light Socket |
|
- | |||||
| 18 | G174765-03 | Control Box |
|
- | |||||
| 19 | G174759-01 | Knob-temperature Control |
|
- | |||||
| 20 | G178402-05 | Switch-energy Saver |
|
- | |||||
| 21 | G185865 | Label - Control Box |
|
- | |||||
| 22 | 3200810 | Control-temperature |
|
- | |||||
| 23 | G142176-11 | Sleeve-plastic |
|
- | |||||
| 24 | G187484 | Timer-defrost |
|
- | |||||
| 25 | G181153-05 | Shelf-refrigerator (3) |
|
- | |||||
| 26 | G172410-04 | Trim-shelf (3) |
|
- | |||||
| 27 | G490016-01 | Cover-pan |
|
- | |||||
| 28 | G490015-33 | Pan-fruit Rs |
|
- | |||||
| 29 | G490015-34 | Pan-vegetable Ls |
|
- | |||||
| 30 | G166310-02 | Support-pan Cover |
|
- | |||||
| 18A | G187363 | Screw |
|
- | |||||
| 22A | G107080 | Screw |
|
- | |||||
| 24A | G105289 | Screw |
|
- | |||||
| 27A | G180108-04 | Gasket-pan Cover (non-illustrated) |
|
- | |||||
| 7A | G162673 | Screw-panel Mounting (3) (non-illustrated) |
|
- | |||||
| 8A | G174818 | Wiring Harness-divider (non-illustrated) |
|
- |
